Single Aluminum Air Battery New Energy For Testing

MOQ:	negotiable
Price:	negotiable
Standard Packaging:	standard export package
Delivery Period:	5-8 working days
Payment Method:	T/T
Supply Capacity:	50,000 pcs

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Trumony

Certification

CE, ISO

Model Number

N/A

Name:

Aluminum Air Battery New Energy Single Battery For Testing

Material:

Air Electrode, Aluminum Material, Cavity Shell, Current Collector

Voltage Of Single Aluminum Plate:

< 2V

Proper Working Temperature:

10-40℃

Storage Capacity:

Approxiately 1kwh

Size Of Single Aluminum Cell:

25.5*20.*2cm

Weight:

745g

Highlight:

1kwh Aluminum Air Battery

New Energy Aluminum Air Battery

45A Aluminum Air Battery

Product Description

Aluminum Air Battery New Energy Single Battery For Testing

1. Product description:

Aluminum air battery is a new technology, a new energy source. It is a power generation device that directly converts chemical energy into electrical energy. Generate electricity by consuming aluminum plates. Aluminum air battery can be stored for a long time without energy loss.
The aluminum air single cell is an important part of the aluminum-air stack.

2. Product specification:

Voltage of single aluminum plate	0.8V-1.3V
Working current	35-45A
Size	25.520.2cm
Weight	745g
Working temperature	10-40 ℃

3. Product advantage:

1. Environment-friendly

The anode is common Mg, Al, Zn and other metals, which can be recycled;
The cathode is a composite of manganese based oxide catalyst and carbon, and the electrolyte is aqueous alkaline or neutral.

2. High energy density, fast mechanical charging and discharging

Theoretical specific energy: 6800 WH / kg for magnesium, 8140 WH / kg for aluminum and 1350 WH / kg for zinc;
The anode can be continuously discharged by mechanical replacement

3. Long storage time

The cathode and anode are very stable in the air, and the storage life can reach more than 10 years. The electrolyte is prepared as you use, which is convenient for storage and transportation.

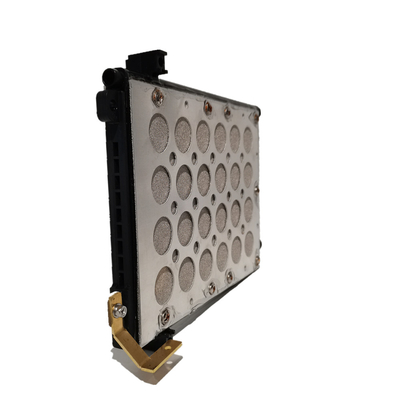

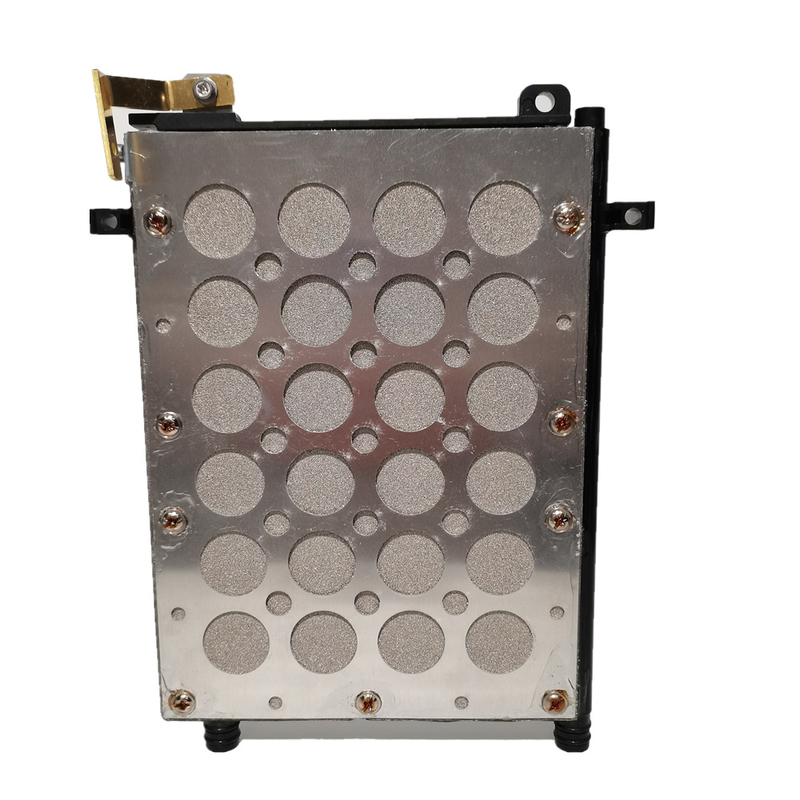

4. Single aluminum air cell structure:

Single Aluminum Air Battery New Energy For Testing 0
