Convective Heat Transfer Aluminum Cooling Ribbon For EV Battery Pack

MOQ:	Sample available
Price:	Negotiation
Standard Packaging:	Ply-wood box specialized for export
Delivery Period:	30days including tooling time
Payment Method:	T/T
Supply Capacity:	100000 tons yearly

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Trumony

Certification

ISO9001,ISO14000,IATF14969

Model Number

TR-CY125

Product Name:

Convective Heat Transfer Aluminum Cooling Ribbon For EV Battery Pack

Keyword:

Cooling Ribbon

Shape:

Serpentine Tube Or Snake Tube

Color:

Matte Silver

Grade:

3003,3102

Temper:

O-H112

Application:

Cooling Ribbon For EV Battery Pack

Structure:

Micro Channel Tube+connector

Process:

Extruded

Package:

Cartons+pallets

Highlight:

Convective Cooling Ribbon

Aluminum Cooling Ribbon

EV Battery Pack Cooling Ribbon

Product Description

Convective Heat Transfer Aluminum Cooling Ribbon For EV Battery Pack

Description

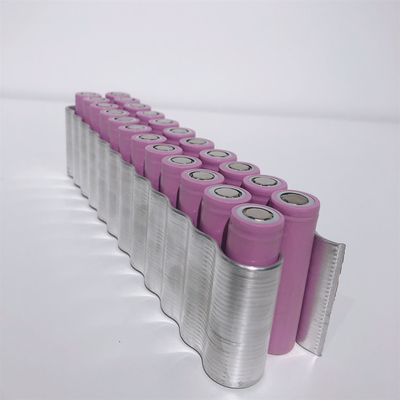

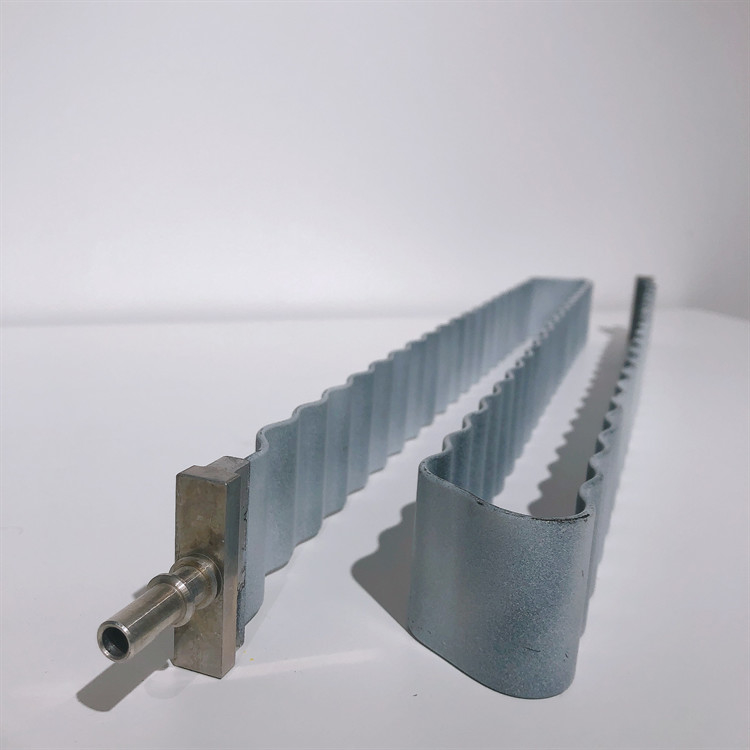

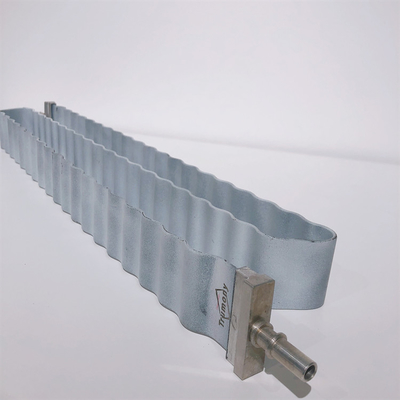

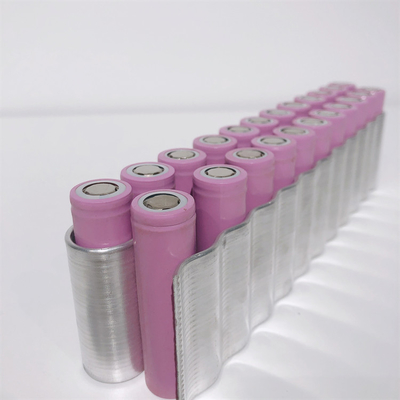

Convective Heat Transfer Aluminum Cooling Ribbon For EV Battery Pack are used aluminum micro channel tubes with multi-port small channels to realize heat exchange cooling . It is a high efficiency battery management system solution for cylindrical cells. The cooling tube can be manufactured to meet the customer’s requirement in alloy,size,wall thickness ,geometry and batteries configuration. The micro channel cooling tube is with very low thermal resistance.When required for specific applications, we can do additional coating protection and thermal surface treatment.

Specification of cooling coldplate

No.	Item	Data
1	Type	Serpentine Aluminum Cooling Tube
2	Grade	1000,3000,5000,7000
3	Temper	O,H12.H14,H24,H112
4	Size	Customize as your request
5	Thickness	2-5MM
6	Usage	EV Battery Cooling system spare part

Alloy code	Temper	Tensile Strength Rm(Mpa)	Yield Strength Rp0.2(Mpa)	Elongation
TR010,TR020,TR030,TR040, TR050,TR110,TR310,TR116, TR316,TR111,TR313,TR121, TR131,TR141,TR150,TR151, TR156 etc	O	95~135*	≥35*	≥15*
	H14	140~185	≥125	≥1.5
	H24	140~185	≥125	≥3
	H16	185~225	≥160	≥1
	H18	≥185	-	≥0.5
TR166 etc tube material	H24	185~235	≥150	≥8
TR116,TR316 etc tube material	H14	140~185	≥125	≥3
TR116,TR316 etc tube material	H24	140~185	≥125	≥8

Our advantage of battery cold tube:

1	Tooling development	we make them by ourself , so we can make initial testing prompt and accurate.
2	Making various of heat exchangers	We can do different shapes cooling plate as your request ,which will meet to make the parts fit into different packs.
3	Assistance in parts design	we have our own rich experience Engineer Dept. we can provide professional suggestions regarding feasibility of carrying out new designs.

Company Information

Trumony Aluminium Limited, We are a professional battery pack heat exchanger manufacturer.
Our company designs, makes and distributes heat exchangers for battery packs, which carrying cylindrical cells, prismatic cells or pouches.

We have full solutions about cooling the battery cells, for example snake tubes for cylindrical cells (18650,21700); water cooling plate for prismatic cells, and plate channel for pouches.
We do hope to utilize our expertise to have chance to establish long-term cooperation with you , as battery thermal management is very critical in an operation of EV.
