Car Aluminum Radiator Tube Micro Channel Flat Mill Finished
  • Name
  • Name
  • Name
  • Name

Car Aluminum Radiator Tube Micro Channel Flat Mill Finished

MOQ: 1000kg
Price: Negotiation
Standard Packaging: Export Standard Packing
Delivery Period: 4~6wks with mold tooling time
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 100000ton/Every Year
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Trumony
Certification
CE,ISO,RoHS,UL
Model Number
TR-T22010
Alloy Number:
3003, 6061, 6062 Etc.
Shape Of Tube:
Flat, Oval, Square Or By Drawings
Size:
As Customer's Request
Processing:
Extrusion, Welding, Cutting
Surface Treatment:
Mill Finished, Zinc Spray , Anodizingetc.
Temper:
HO/H24/H14
Apply To:
Evaporator, Air Conditioner , Car Radiator, Charge Air Cooler, Condenser
Keyword:
Extruded Tubing, Multiport Tube, Auto Radiator
Highlight:

Micro Channel Aluminum Radiator Tube

,

Flat Aluminum Radiator Tube

,

Mill Finished Aluminum Heat Exchanger Tube

Product Description

Car Aluminum Radiator Micro Channel Flat Aluminum Tube Heat Exchange Tube

It's an important spare part for auto condenser and evaporator.
We have lots of ready molds, it means no more tooling cost.
Based on good passenger channel design, coolant can run inside the tube and ensure high cooling efficiency. If you have your own drawing, please  kindly send us, we can do custom manufacturing based on your design.





Applications:

 Engine cooling and air conditioner system, such as radiator, condenser, oil cooler and heater, evaporator.

 Home appliances electrics industries, such as HAVC heat exchangers, refrigerator, PTC heating unit, air conditioner;

 New energy: Liquid cooling plate for EV battery / ESS battery.







Chemical composition

Alloy Si Fe Cu Mn Mg Cr Zn V Ti
1050 ≤0.25 ≤0.40 ≤0.05 ≤0.05 ≤0.05 --- ≤0.05 ≤0.05 ≤0.03
1100 ≤0.95(Si+Fe)   0.05~0.20 ≤0.05 -- -- ≤0.10 --- ---
3102 ≤0.40 ≤0.70 ≤0.1 0.05~0.4 --- --- ≤0.3 --- ≤0.10

It can be customized according to customers' request!





Mechanical Properties

Alloy Temper  Tensile Strength  Yeild Strength Elongation
1050 O/F/H111/H112 ≥65MPa ≥200MPa ≥25%
1100 O/F/H111/H112 ≥75MPa ≥200MPa ≥25%
3102 O/F/H111/H112 ≥75MPa ≥200MPa ≥25%
3003 O/F/H111/H112 ≥75MPa ≥200MPa ≥25%



Items Range
Width 8mm~40mm
Thickness 1mm~5mm
Wall thickness 0.15mm~0.8mm
Thickness of zinc spraying 6g/mm²~15g/mm²
Fixed length 200mm~4000mm
Number of pores 3~30

It can be customized according to customers' request!

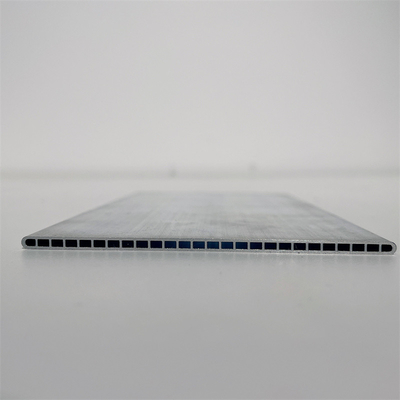

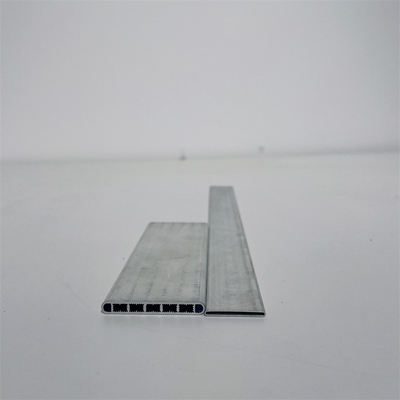

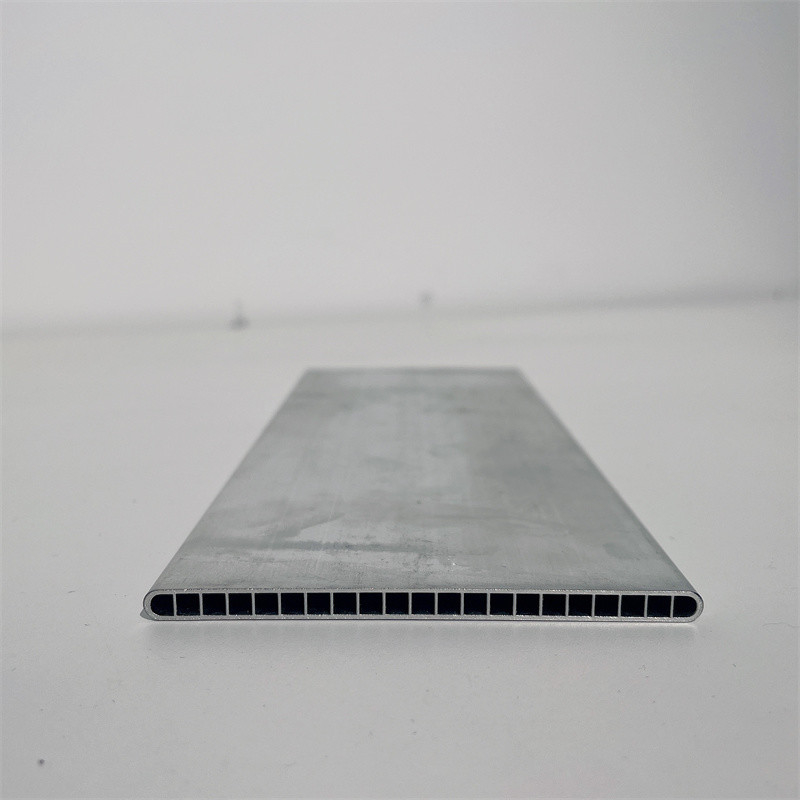

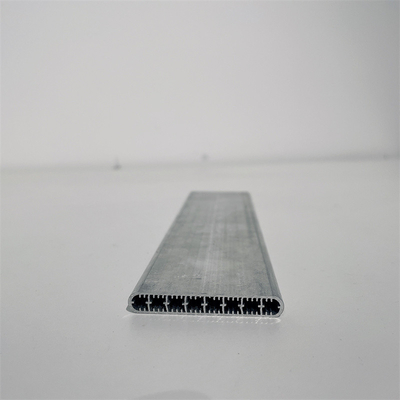

Car Aluminum Radiator Tube Micro Channel Flat Mill Finished 0Car Aluminum Radiator Tube Micro Channel Flat Mill Finished 1Car Aluminum Radiator Tube Micro Channel Flat Mill Finished 2







FAQ:

Q: Are you a trading company or manufacturer?
A: Yes,we are a factory with more than 10 years history in this industry.

Q: What is your terms of payment ?
A: Normally 30% TT in advance, balance paid before shipment.

Q: How long does it take for samples and mass production?
A: Usually it will take 15-20 days for new molds and free samples (within 5 kg),;after confirmation, 25-30 days for mass production.

Q: OEM/ODM available?
A: Yes,we can!

Q: Could you provide sample?
A: Yes, We are honored to offer you samples for quality check.


Q: Is sample order accepted?
A: Yes,we accept sample order and we can provide design service!

















Tags:

round aluminum tubing,

aluminium alloy tube,

oval aluminum tubing
