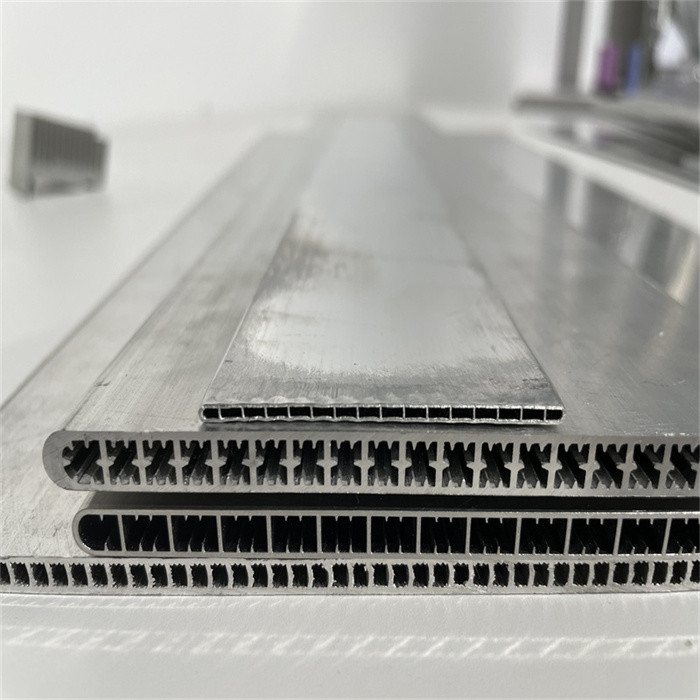

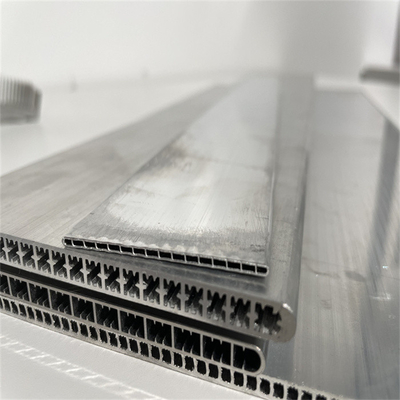

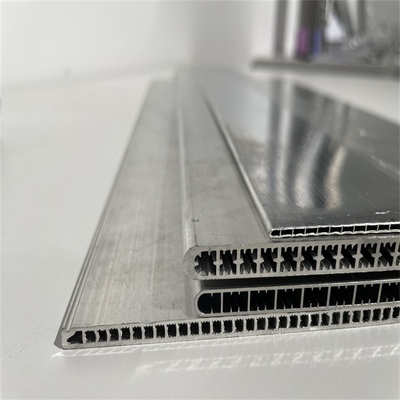

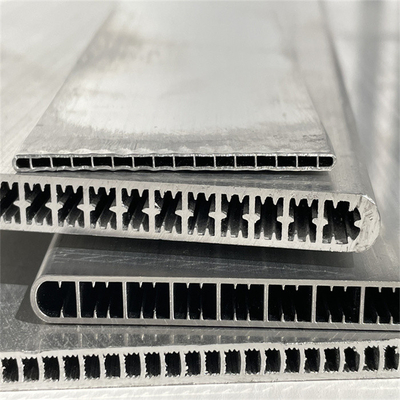

Automobile Condenser Aluminum Extrusion Tube For Car Radiator

MOQ:	1000kg
Price:	Negotiation
Standard Packaging:	Export Standard Packing
Delivery Period:	4~6wks with mold tooling time
Payment Method:	L/C, D/A, D/P, T/T
Supply Capacity:	100000ton/Every Year

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Trumony

Certification

CE,ISO,RoHS,UL

Model Number

TR-T22012

Material:

Aluminum Alloy

Alloy:

6105, 3003, 3102 Etc.

Size:

As Customer's Drawing

Processing:

Extrusion, Welding, Cutting, Coating

Surface Treatment:

Mill Finished, Zinc Spray , Anodizingetc.

Temper:

HO/H24/H14

Applications:

Evaporator, Air Conditioner , Car Radiator, Charge Air Cooler, Condenser

Keyword:

Extruded Tubing, Multiport Tube, Auto Radiator

CNC Cetre:

Payment Term:

30% Prepayment, Balance Before Shipment

Highlight:

Automobile Condenser Aluminum Extrusion Tube

Car Radiator Aluminum Extrusion Tube

Car Radiator Aluminum Extruded Tube

Product Description

Automobile Condenser Aerospace Spare Parts Aluminum Extrusion Tube for Car Radiator

The aluminum extruded tube is made of several channels that increase the heat transfer through a higer surface per volume ratio. It's efficient and good thermal and electric conductivity. It's widely used for cooler assembly with fan motor, heat exchanger for air separation and dryer, intercooler & radiator & oil cooler for auto, oil cooler for hydraulic system, oil /air cooler for compressor.

Chemical composition

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	V	Ti
1050	≤0.25	≤0.40	≤0.05	≤0.05	≤0.05	---	≤0.05	≤0.05	≤0.03
1100	≤0.95(Si+Fe)		0.05~0.20	≤0.05	--	--	≤0.10	---	---
3102	≤0.40	≤0.70	≤0.1	0.05~0.4	---	---	≤0.3	---	≤0.10

It can be customized according to customers' request!

Mechanical Properties

Alloy	Temper	Tensile Strength	Yeild Strength	Elongation
1050	O/F/H111/H112	≥65MPa	≥200MPa	≥25%
1100	O/F/H111/H112	≥75MPa	≥200MPa	≥25%
3102	O/F/H111/H112	≥75MPa	≥200MPa	≥25%
3003	O/F/H111/H112	≥75MPa	≥200MPa	≥25%

Items	Range
Width	8mm~40mm
Thickness	1mm~5mm
Wall thickness	0.15mm~0.8mm
Thickness of zinc spraying	6g/mm²~15g/mm²
Fixed length	200mm~4000mm
Number of pores	3~30

It can be customized according to customers' request!

Applications:

Engine cooling and air conditioner system, such as radiator, condenser, oil cooler and heater, evaporator.

Home appliances electrics industries, such as HAVC heat exchangers, refrigerator, PTC heating unit, air conditioner;

New energy: Liquid cooling plate for EV battery / ESS battery.

Automobile Condenser Aluminum Extrusion Tube For Car Radiator 0

FAQ:

Q: Are you a trading company or manufacturer?
A: Yes,we are a factory with more than 10 years history in this industry.

Q: What is your terms of payment ?
A: Normally 30% TT in advance, balance paid before shipment.

Q: How long does it take for samples and mass production?
A: Usually it will take 15-20 days for new molds and free samples (within 5 kg),;after confirmation, 25-30 days for mass production.

Q: OEM/ODM available?
A: Yes,we can!

Q: Could you provide sample?
A: Yes, We are honored to offer you samples for quality check.

Q: Is sample order accepted?
A: Yes,we accept sample order and we can provide design service!
