Automobile Condenser Aluminum Extruded Tube Microchannel For Oil Cooler
  • Name
  • Name
  • Name
  • Name
  • Name

Automobile Condenser Aluminum Extruded Tube Microchannel For Oil Cooler

MOQ: 1000kg
Price: Negotiation
Standard Packaging: Export Standard Packing
Delivery Period: 4~6wks with mold tooling time
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 100000ton/Every Year
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Trumony
Certification
CE,ISO,RoHS,UL
Model Number
TR-T22013
Product Name:
Aluminum Multiport Flat Tube
Alloy:
3003, 3102, 6106, 6105, Etc.
Processing:
Punching, Extrusion, Welding, Cutting Etc.
Surface Treatment:
Mill Finished, Zinc Spray , Anodizing Etc.
Temper:
HO/H24/H14/H112
Applications:
Evaporator, Air Conditioner , Car Radiator, Charge Air Cooler, Condenser, Oil Cooler
Keyword:
Aluminum Flat Tube For Condenser
OEM:
YES
Payment Term:
30% Prepaid, Balance Before Shipment
Package:
Wooden Case
Highlight:

Automobile Condenser Aluminum Extruded Tube

,

Oil Cooler Aluminum Extruded Tube

,

Automobile Condenser Aluminium Extruded Tube

Product Description

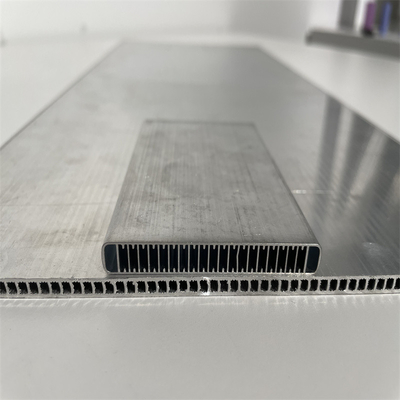

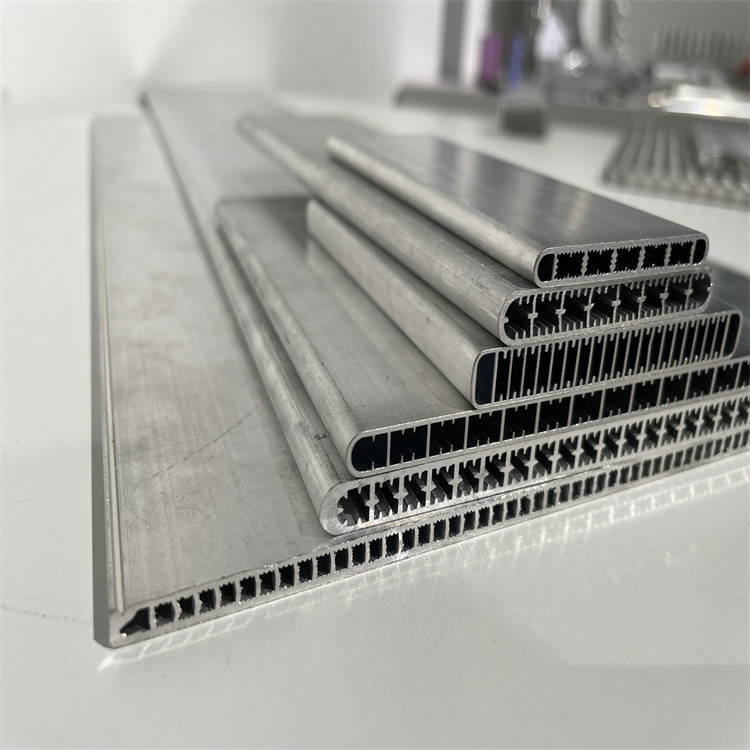

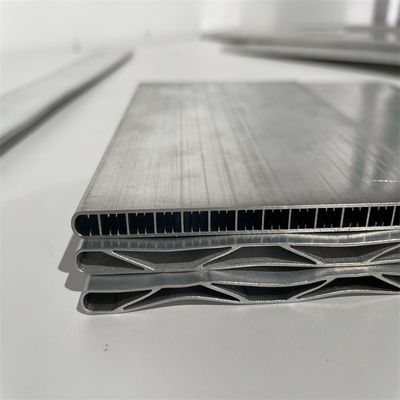

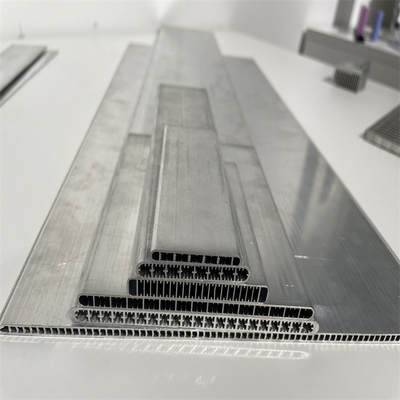

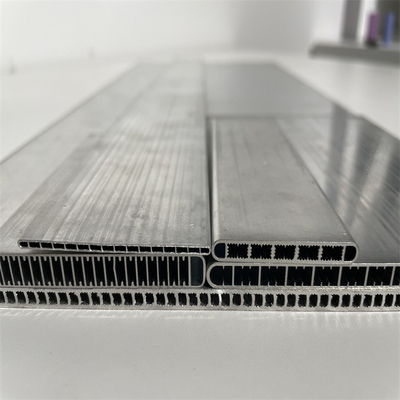

Automobile Condenser Spare Parts Aluminum Extruded Microchannel Tube for Oil Cooler

Multiport Tube is an important spare part for auto condenser and evaporator.
Benefit from our own tooling center, lots of ready molds are with us.
Based on good channel flow design, coolant can run inside the tube and ensure high cooling efficiency.You can also design your own tube and send us the drawing through our sales representatives,we can do the Custom manufacturing based on your drawing.





Chemical composition

Alloy Si Fe Cu Mn Mg Cr Zn V Ti
1050 ≤0.25 ≤0.40 ≤0.05 ≤0.05 ≤0.05 --- ≤0.05 ≤0.05 ≤0.03
1100 ≤0.95(Si+Fe)   0.05~0.20 ≤0.05 -- -- ≤0.10 --- ---
3102 ≤0.40 ≤0.70 ≤0.1 0.05~0.4 --- --- ≤0.3 --- ≤0.10

It can be customized according to customers' request!





Mechanical Properties

Alloy Temper  Tensile Strength  Yeild Strength Elongation
1050 O/F/H111/H112 ≥65MPa ≥200MPa ≥25%
1100 O/F/H111/H112 ≥75MPa ≥200MPa ≥25%
3102 O/F/H111/H112 ≥75MPa ≥200MPa ≥25%
3003 O/F/H111/H112 ≥75MPa ≥200MPa ≥25%



Items Range
Width 8mm~40mm
Thickness 1mm~5mm
Wall thickness 0.15mm~0.8mm
Thickness of zinc spraying 6g/mm²~15g/mm²
Fixed length 200mm~4000mm
Number of pores 3~30

It can be customized according to customers' request!





Applications:

Engine cooling and air conditioner system, such as radiator, condenser, oil cooler and heater, evaporator.

Home appliances electrics industries, such as HAVC heat exchangers, refrigerator, PTC heating unit, air conditioner;

New energy: Liquid cooling plate for EV battery / ESS battery.





Automobile Condenser Aluminum Extruded Tube Microchannel For Oil Cooler 0Automobile Condenser Aluminum Extruded Tube Microchannel For Oil Cooler 1Automobile Condenser Aluminum Extruded Tube Microchannel For Oil Cooler 2







FAQ:

Q: Are you a trading company or manufacturer?
A: Yes,we are a factory with more than 10 years history in this industry.

Q: What is your terms of payment ?
A: Normally 30% TT in advance, balance paid before shipment.

Q: How long does it take for samples and mass production?
A: Usually it will take 15-20 days for new molds and free samples (within 5 kg),;after confirmation, 25-30 days for mass production.

Q: OEM/ODM available?
A: Yes,we can!

Q: Could you provide sample?
A: Yes, We are honored to offer you samples for quality check.


Q: Is sample order accepted?
A: Yes,we accept sample order and we can provide design service!
