Product Details:
|
| Product Name: | Water Cooling Channel | Type: | Liquid Cooling Tube For Powerwall |
|---|---|---|---|
| Process: | Aluminum Extrusion | Alloy: | 3003 |
| Temper: | O-H112 | Application: | EV Battery Pack |
| Structure: | Micro Channel Tube+connector | Package: | Cartons+pallets |
| High Light: | Cylindrical Battery Aluminium Cooling Plate,Micro Channel Aluminum Cooling Plate,3003 Alloy Aluminium Cooling Plate |
||

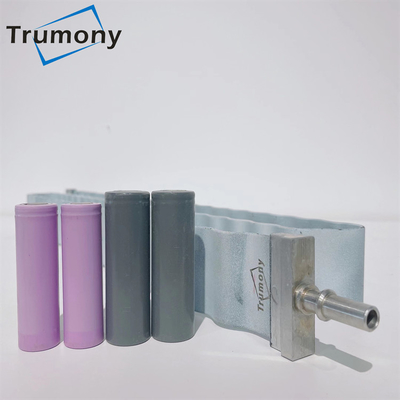

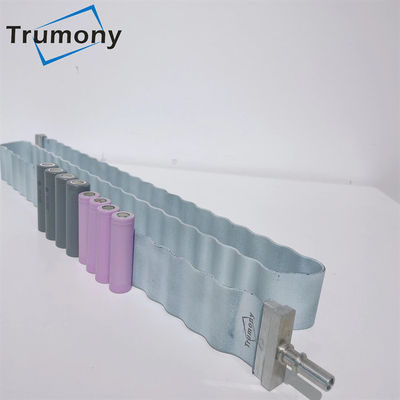

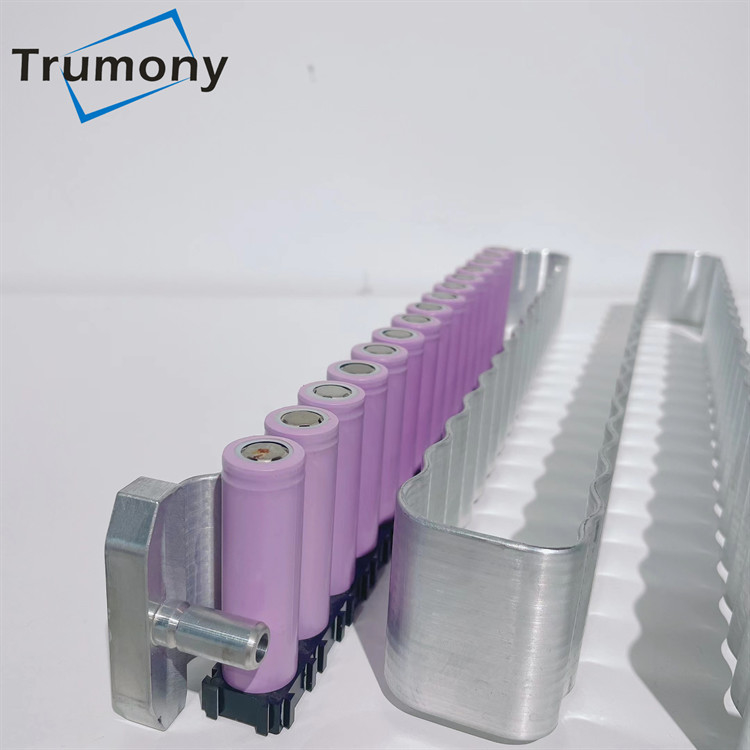

Aluminum Micro Channel Cylindrical Battery Cooling Solution
Mini-channel Liquid Cooled Tube Cylinder Based Battery Thermal Management for Cylindrical Lithium-ion Power Battery
Battery thermal management is a very active research focus in recent years because of its great essentiality for electric vehicles. In order to maintain the maximum temperature and local temperature difference in appropriate range, a new kind of cooling method for cylindrical batteries which is based on mini-channel liquid cooled cylinder. We named it snake cooling tube or cooling ribbon or serpentine tube.As what we all known the famous electric vehicle Tesla who always use this cooling solution for their cylindrical battery module. For BMW ,GM or other car companies use the aluminum stamping cold plate for prismatic battery module. For brand of BYD who use the aluminum cold plate for blade battery .
| Item | Cooling ribbion for battery pack module |
| Size | As your design |
| Thickness | 2.4mm,3mm |
| Application | cylindrical battery pack cooling |
| Service | Design, simulation, tooling ,prototype |
| Process | Aluminum extrusion |
| Liquid cooling type | cold plate cooling plate for EV, stamped cold plate for ESS,harmonica shaped cooling tube plate , EV battery snake cooling tube ,aluminum roll bonded plate |
Battery cooling system
1- Aluminum cooling cold plate for battery pack
2- Serpentine tube for new energy vehicle
3- Aluminum extrusion cooling plate for soft package battery pack
4- Aluminum stamping cold plate
*****Key point of design
1- Specify the battery type: cylindrical cells / square cells or prismatic cells/ soft battery or pouch cells
2- Module boundary dimensions
3- Heat dissipation requirement
4- Design and prototype budget
5- All heat exchanger choice such as the connectors,plastic quick connectors,battery cooling plate installation
With very rich experience in making cooling plates for battery packs.Below are the strength from us that you can rely on:
1. Aid in cooling components design feasibility
2. Proven solutions for both prismatic and cylindrical cells
3. Capability in doing DVP with client
4. Fast support in Prototype making
FAQ :
1. What battery module cooling solution you can provide ?
A: We have 4 kinds of battery cooling type for your battery pack. Aluminum snake tube for cylindrical shaped of cells. Aluminum brazed cooled plate for prismatic cells ,aluminum micro channel plates for pouches and aluminum roll bonded panels .
2. What the alloy and temper of your water cooling plate ?
A: The aluminum alloy is 3000,6000 and temper is O-H112.
3. What the process technology to do the cold plate or coolant channles ?
A: Aluminum extrusion process , vacuum brazing process, roll bonded process and we also have CNC center.
4. Do you support customized prototype for battery pack module ?
A: Sure, we can produce the aluminum liquid cooling plate as your design. If just at the development stage, our existing cooled plate heat sinks are available for checking.
