Product Details:
|
| Product Name: | Aluminum Water Cooled Plate For ESS | Specifications: | Customized |
|---|---|---|---|
| Type Of Cooled Plate: | Stamping Type, Extrusion Type, Roll-bonded Evaporator | Surface Treatment: | Coating/Insulation/Film Coated |
| Application: | Commercial ESS Battery / Household ESS Battery | Design Service: | Support |
| Payment Term: | 30% Prepaid In Advance, Balance Before Shipment | Packaging: | Exported Standard Wooden Packing |
| HS Code: | 7607 | Key Words: | Aluminum Water Cooled Plate For ESS, Liquid Cooling Tube For EV, Cooling Plate |
| High Light: | Extrusion Aluminum Water Cooled Plate,Stamping Aluminum Water Cooled Plate,Aluminum Water Cooled Plate For ESS |
||

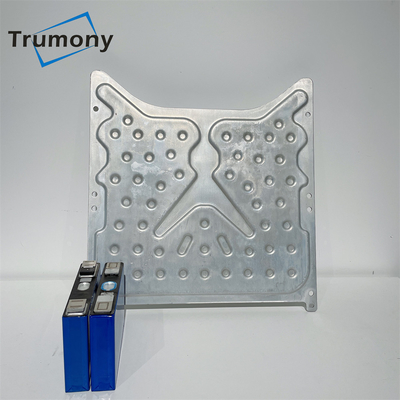

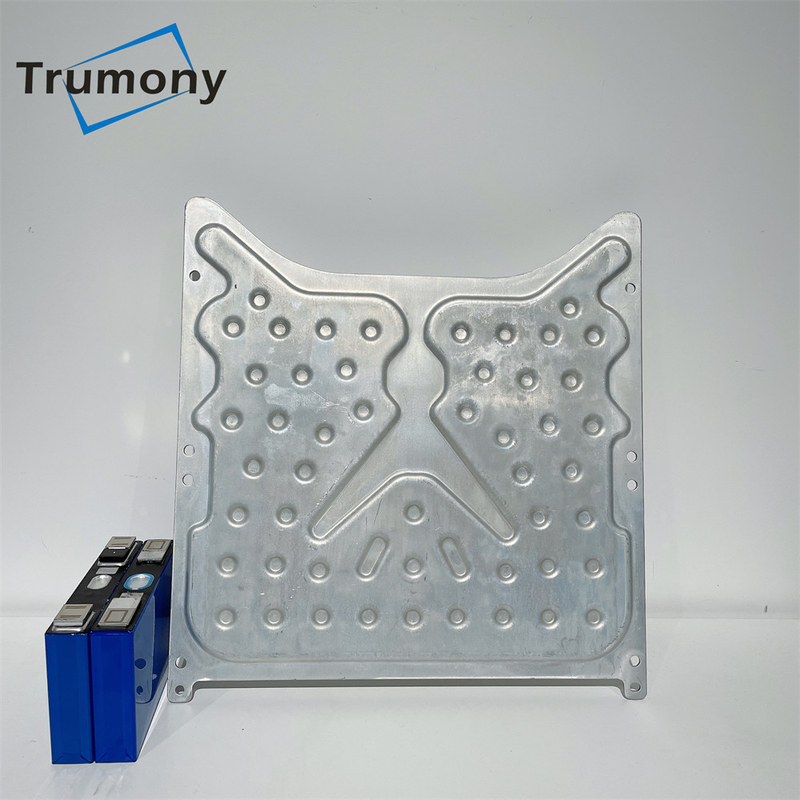

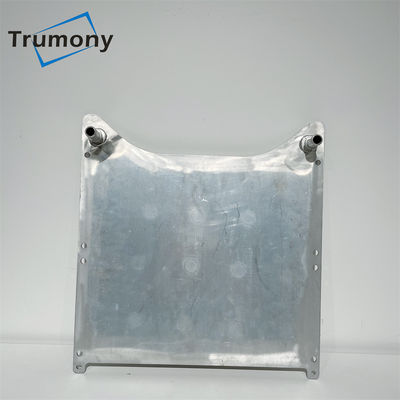

Electric Racing Cars BMS Aluminum Water Cooled Plate for ESS
With the development of energy storage, water-cooled panels are not only used for electric vehicle battery cooling, but also more used for energy storage battery cooling. We Trumony have rich experience in the design and manufacture of cooling plates, and we can design assist service, for example, mechanical structure, plate channel suggestion, flow simulation. More detail pls feel free to send us inquiry.
| Item | Aluminum cooling plate for ESS |
| Plate size | According to your module |
| Battery size | Prismatic cells, battery pack |
| Structure | Flat bottom cooling plate + flow channel plate + inlet / outlet |
| Length | According to your boundary size |
| Surface treatment | Insulation coating |
| Spare parts | Quick connector, thermal interface material (silicon pad), pump, etc. |
| Service | Cooling tube design service, heat simulation service, flow path suggestion |
More battery cooling solutions for you:

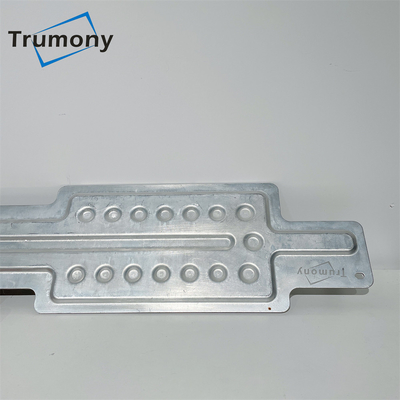

1) Stamping type cooling plate for prismatic cells / battery pack.
2) Extrusion snake tube for cylindrical cells, such as 21700, 18650, 3270, 4680 big cell.
3) Roll bonded cooling plate
Our Advantages:
1) Flexible solutions for battery cooling. (According to your module provide customized cooling plate)
2) Design service, we have R&D department, can do design finalization, flow and heat simulation.
3) CNC centre to make customized inlet/outlet connector.
4) Thermal Interface Material, such as thermal silicone pad, Insulation coating etc.
Chemical composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
| 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.05 | ≤0.03 |
| 1100 | ≤0.95(Si+Fe) | 0.05~0.20 | ≤0.05 | -- | -- | ≤0.10 | --- | --- | |
| 3102 | ≤0.40 | ≤0.70 | ≤0.1 | 0.05~0.4 | --- | --- | ≤0.3 | --- | ≤0.10 |
It can be customized according to customers' request!
Mechanical Properties
| Alloy | Temper | Tensile Strength | Yeild Strength | Elongation |
| 1050 | O/F/H111/H112 | ≥65MPa | ≥200MPa | ≥25% |
| 1100 | O/F/H111/H112 | ≥75MPa | ≥200MPa | ≥25% |
| 3102 | O/F/H111/H112 | ≥75MPa | ≥200MPa | ≥25% |
| 3003 | O/F/H111/H112 | ≥75MPa | ≥200MPa | ≥25% |
FAQ:
Q: Are you a trading company or manufacturer?
A: Yes,we are a factory with more than 10 years history in this industry.
Q: What is your terms of payment ?
A: Normally 30% TT in advance, balance paid before shipment.
Q: How long does it take for samples and mass production?
A: Usually it will take 15-20 days for new molds and free samples (within 5 kg),;after confirmation, 25-30 days for mass production.
Q: OEM/ODM available?
A: Yes,we can!
Q: Could you provide sample?
A: Yes, We are honored to offer you samples for quality check.
Q: Is sample order accepted?
A: Yes,we accept sample order and we can provide design service!
