Product Details:
|
| Product Name: | Aluminum Roll Bonded Plate | Specifications: | Customized |
|---|---|---|---|
| Type Of Plate: | Single Inflated Roll Bond Evaporator / Double Side Inflated Roll Bond Evaporator | Surface Treatment: | Sprayed With Plastic To Prevent Oxidation And Corrosion |
| Application: | Refrigerator， ESS， EV | Design Service: | Support |
| Payment Term: | 30% Prepayment, Balance Before Shipment | Packaging: | Exported Standard Packing |
| HS Code: | 7607 | Key Words: | Roll Bonding Plate, Roll Bonded Evaporator |
| High Light: | Aluminum Roll Bond Evaporator,Aluminum Roll Bonded Plate,Battery Cooling Roll Bond Evaporator |
||

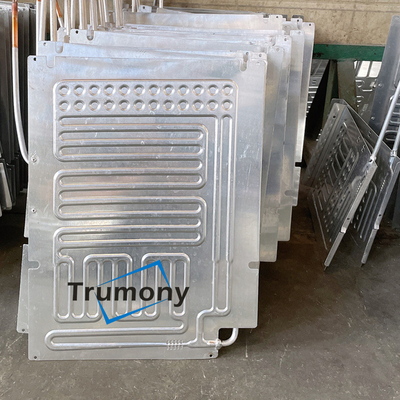

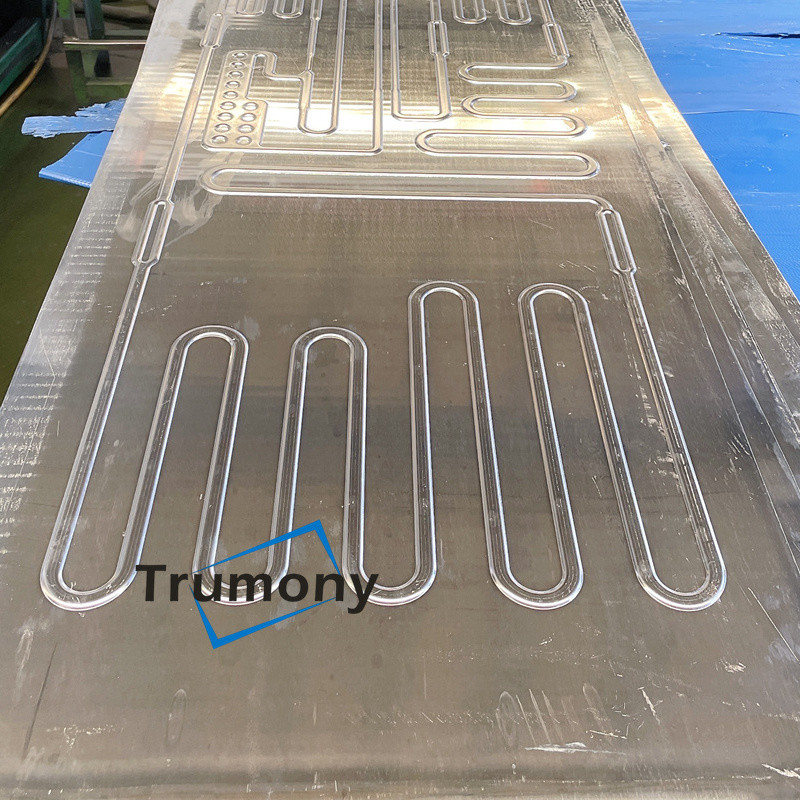

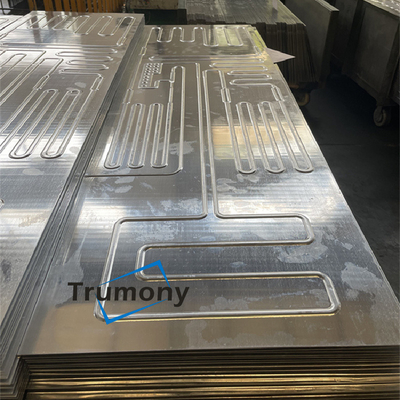

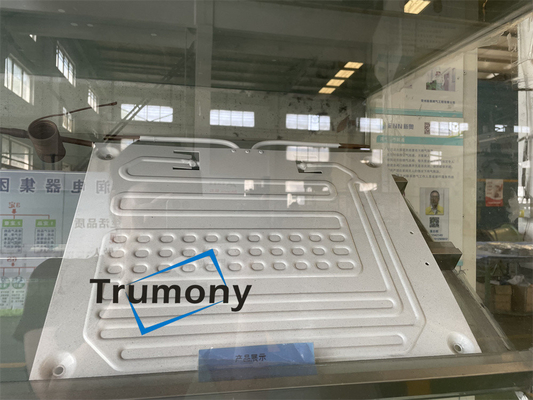

Battery Cooling Solution Aluminum Roll Bonded Evaporator
Aluminum roll bonded evaporators are particularly widely used in household appliances. With the development of the electric vehicle industry, due to the advantages of fast sample production and low development cost, inflatable evaporators also applied for EV and ESS battery.
| Item | Roll bonded cooling plate |
| Plate size | According to your module |
| Battery size | Prismatic cells, battery pack |
| Structure | 1. Single side inflated roll bond evaporator 2.Double side inflated roll bond evaporator 3. Part single side inflated |
| Length | According to your boundary size |
| Surface treatment | Powder Spray |
| Spare parts | Quick connector, thermal interface material (silicon pad), pump, etc. |
| Service | Cooling tube design service, heat simulation service, flow path suggestion |
More battery cooling solutions for you:
1) Stamping type cooling plate for prismatic cells / battery pack.
2) Extrusion snake tube for cylindrical cells, such as 21700, 18650, 3270, 4680 big cell.
3) Roll bonded cooling plate
Our Advantages:
1) Flexible solutions for battery cooling. (According to your module provide customized cooling plate)
2) Design service, we have R&D department, can do design finalization, flow and heat simulation.
3) CNC centre to make customized inlet/outlet connector.
4) Thermal Interface Material, such as thermal silicone pad, Insulation coating etc.
Chemical composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
| 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.05 | ≤0.03 |
| 1100 | ≤0.95(Si+Fe) | 0.05~0.20 | ≤0.05 | -- | -- | ≤0.10 | --- | --- | |
| 3102 | ≤0.40 | ≤0.70 | ≤0.1 | 0.05~0.4 | --- | --- | ≤0.3 | --- | ≤0.10 |
It can be customized according to customers' request!
Mechanical Properties
| Alloy | Temper | Tensile Strength | Yeild Strength | Elongation |
| 1050 | O/F/H111/H112 | ≥65MPa | ≥200MPa | ≥25% |
| 1100 | O/F/H111/H112 | ≥75MPa | ≥200MPa | ≥25% |
| 3102 | O/F/H111/H112 | ≥75MPa | ≥200MPa | ≥25% |
| 3003 | O/F/H111/H112 | ≥75MPa | ≥200MPa | ≥25% |
FAQ:
Q: Are you a trading company or manufacturer?
A: Yes,we are a factory with more than 10 years history in this industry.
Q: What is your terms of payment ?
A: Normally 30% TT in advance, balance paid before shipment.
Q: How long does it take for samples and mass production?
A: Usually it will take 15-20 days for new molds and free samples (within 5 kg),;after confirmation, 25-30 days for mass production.
Q: OEM/ODM available?
A: Yes,we can!
Q: Could you provide sample?
A: Yes, We are honored to offer you samples for quality check.
Q: Is sample order accepted?
A: Yes,we accept sample order and we can provide design service!
