Auto Spare Parts Oval Shape Aluminum Micro Channel Tube For Heat Exchanger
  • Name
  • Name
  • Name
  • Name

Auto Spare Parts Oval Shape Aluminum Micro Channel Tube For Heat Exchanger

MOQ: 1000kg
Price: Negotiation
Standard Packaging: Export Standard Packing
Delivery Period: 4~6wks with mold tooling time
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 100000ton/Every Year
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Trumony
Certification
CE,ISO,RoHS,UL
Model Number
TR-T22027
Product Name:
Aluminum Oval Multiport Tube
Alloy No.:
4343/3003/4343, 1100, 1060, 3003
Temper:
O/H14/H16/H18/H24
Thickness:
0.4mm~3mm
Width:
8~60mm
Fixed Length:
Up To You
Processing:
Cutting, Extrusion, Welding, Brazing Etc.
Surface Treatment:
Mill Finished
Applications:
Evaporator, Oil Cooler, Condenser, Air Conditioner, Car Radiator,
Keyword:
Extrusion Flat Tube For Condenser, Microchannel Tube
Highlight:

Oval Aluminum Micro Channel Tube

,

Oval Shape Aluminum Microchannel Tube

,

Auto Spare Parts Microchannel Tube

Product Description

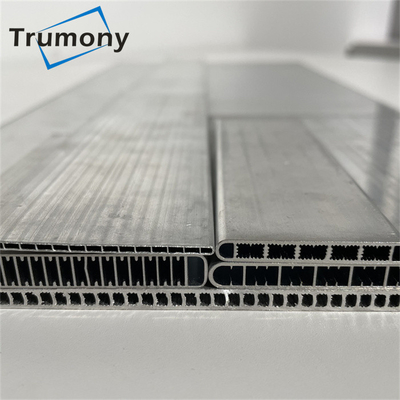

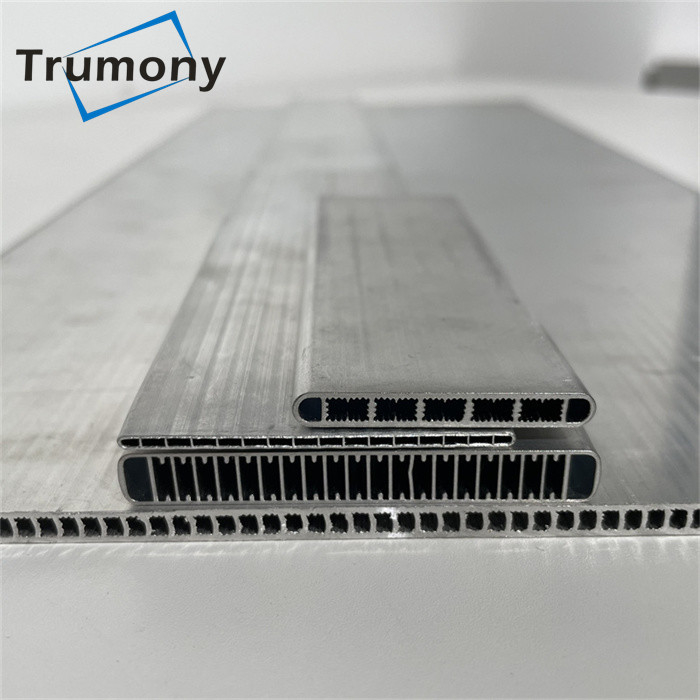

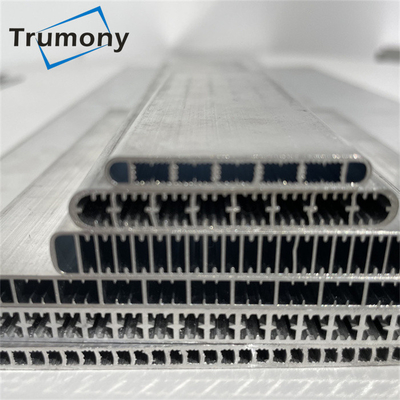

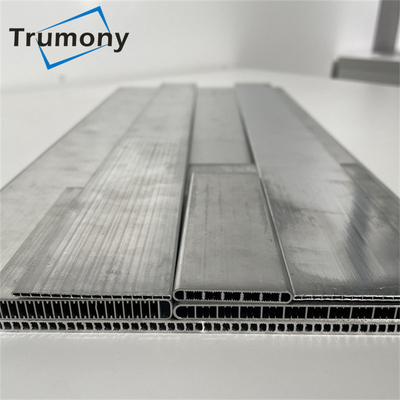

Oval Shape Aluminum Micro Channel Tube for Auto Spare Parts

Aluminum micro channe tube is called aluminum flat tube, which is widely used for aluminum radiators for car, aluminum condenser, evaporator, oil cooler and etc.



Specifications:

Items Range
Width 8mm~40mm
Thickness 1mm~5mm
Wall thickness 0.15mm~0.8mm
Thickness of zinc spraying 6g/mm²~15g/mm²
Fixed length 200mm~4000mm
Number of pores 3~30

It can be customized according to customers' request!





Mechanical Properties

Mechanical property
Alloy Code Temper Tensile Strength Rm(Mpa) Yield Strength(Mpa) Elongation(%)
TR-151 Tube material O 95-135* ≥35* ≥15*
H14 140-185 ≥125 ≥1.5
H24 140-185 ≥125 ≥3
H16 185-225 160 ≥1
H18 ≥185 —— ≥0.5
TR-166 Tube material H24 185-235 ≥150 ≥8
TR-116 tube material H14 140-185 ≥125 ≥3
H24 140-185 ≥125 ≥8



Chemical composition

Alloy Si Fe Cu Mn Mg Cr Zn V Ti
1050 ≤0.25 ≤0.40 ≤0.05 ≤0.05 ≤0.05 --- ≤0.05 ≤0.05 ≤0.03
1100 ≤0.95(Si+Fe)   0.05~0.20 ≤0.05 -- -- ≤0.10 --- ---
3102 ≤0.40 ≤0.70 ≤0.1 0.05~0.4 --- --- ≤0.3 --- ≤0.10

It can be customized according to customers' request!







Our advantage
Trumony started up since 2006, we have rich experience in this industry in China;
We have our own development department for new material research;
Good reputation in household foil areas;
We start our productions from aluminum ingot,so we can control the quality as well;
All parts of ladder is self manufacturing, we have price advantage.
We have good experience and cooperation with big client in the world;
With Certificate ISO9001-2008;
Fast delivery time;
Sample order is acceptable
High performance cost ratio;
Good communication skills, and good service and understandings for customers





Appliances:

Engine cooling and air conditioner system, such as oil cooler and heater, evaporator, aluminum radiator, aluminum condenser

Home appliances electrics industries, for example HAVC heat exchangers, refrigerator, PTC heating unit, air conditioner;

New energy industry: water cooled plate for EV battery / ESS battery.







FAQ:

Q: Are you a trading company or manufacturer?
A: Yes,we are a factory with more than 10 years history in this industry.

Q: What is your terms of payment ?
A: Normally 30% TT in advance, balance paid before shipment.

Q: How long does it take for samples and mass production?
A: Usually it will take 15-20 days for new molds and free samples (within 5 kg),;after confirmation, 25-30 days for mass production.

Q: OEM/ODM available?
A: Yes,we can!

Q: Could you provide sample?
A: Yes, We are honored to offer you samples for quality check.


Q: Is sample order accepted?
A: Yes,we accept sample order and we can provide design service!



Auto Spare Parts Oval Shape Aluminum Micro Channel Tube For Heat Exchanger 0
