Thickness 3mm Insulating Coating Aluminium EV Battery Module Coolant Plate

Thickness 3mm Insulating Coating Aluminium EV Battery Module Coolant Plate
Thickness 3mm Insulating Coating Aluminium EV Battery Module Coolant Plate Thickness 3mm Insulating Coating Aluminium EV Battery Module Coolant Plate Thickness 3mm Insulating Coating Aluminium EV Battery Module Coolant Plate Thickness 3mm Insulating Coating Aluminium EV Battery Module Coolant Plate Thickness 3mm Insulating Coating Aluminium EV Battery Module Coolant Plate

Large Image :  Thickness 3mm Insulating Coating Aluminium EV Battery Module Coolant Plate

Product Details:
Place of Origin: China
Brand Name: Trumony
Certification: TS16949, ISO, RoHS
Model Number: TR-T22028
Payment & Shipping Terms:
Minimum Order Quantity: Sample trial can be arranged
Price: Negotiation
Packaging Details: Export Standard Packing
Delivery Time: 4~6wks with mold tooling time
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000000pcs/Every Year

Thickness 3mm Insulating Coating Aluminium EV Battery Module Coolant Plate

Description
Product Name: EV Battery Module Coolant Plate Thickness Of Whole Plate: 5~8 Mm
Type Of Cooling Plate: Stamping Type, Extrusion Type, FSW Cold Plate, Roll-bonded Evaporator Surface Treatment: Coating/Insulation/Film Coating
Application: For EV/ESS Battery Cooling Design Service: Yes
Payment Term: 30% Prepaid In Advance, Balance Before Shipment Packaging: Exported Standard Package
HS Code: 7607 Key Words: Extrusion Cooling Tube, Water Cooled Plate, Liquid Cooling Tube For EV
High Light:

Thickness 3mm Aluminium Cooling Plate

,

EV Battery Module Cooling Plate

,

Insulating Aluminium Cooling Plate

Thickness 3mm Insulating Coating Aluminium EV Battery Module Coolant Plate

Trumony is specilized in providing lithium ion battery thermal solutions. We have a engineering team full of experience, and we can develop various cold plates for equipment such as EV, Locomotives, SVC, IGBT, Solar energy, commercial power storage.



Item Aluminum cooling tube
Tube size 55*3mm Or according to your module
Battery size Lithium ion battery, CAMs
Structure Aluminum cooling tube + manifold + connector
Length According to your boundary size (Module size)
Surface treatment Insulation coated
Spare parts Quick connector, thermal interface material (silicon pad), pump, etc.
Service Cooling tube design service, heat simulation service, flow path suggestion, finalize production feasibility





More battery cooling solutions for you:
1) Stamping type cooling plate for prismatic cells / battery pack.
2) Extrusion snake tube for cylindrical cells, such as 21700, 18650, 3270, 4680 big cell.
3) Roll bonded cooling plate

4) FSW cooled plate

5) Aluminum cold plate with copper tube


Our Advantages:
1) Flexible solutions for battery cooling. (According to your module provide customized cooling plate)
2) Design service, we have R&D department, can do design finalization, flow and heat simulation.
3) CNC centre to make customized inlet/outlet connector.
4) Thermal Interface Material, such as thermal silicone pad, Insulation coating etc.







Detail Products

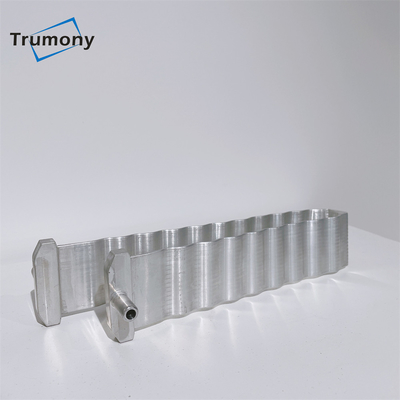

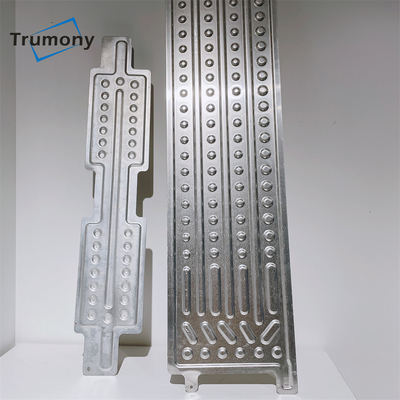

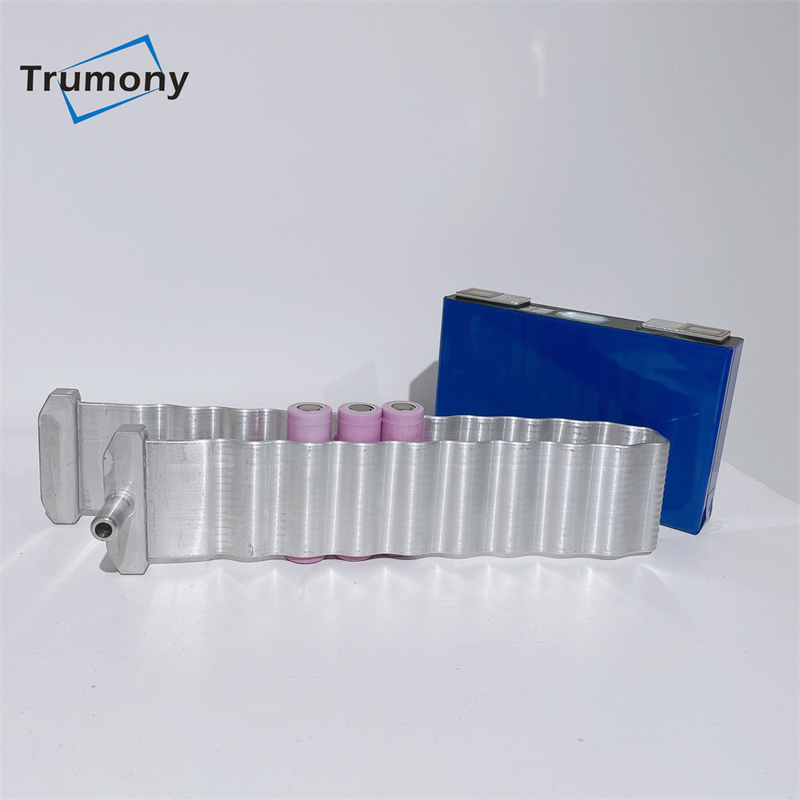

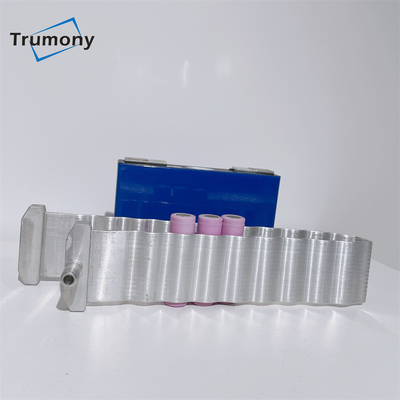

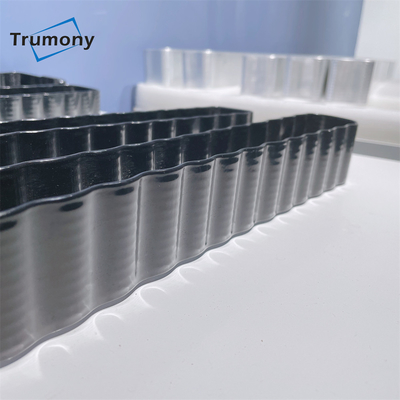

Thickness 3mm Insulating Coating Aluminium EV Battery Module Coolant Plate 0Thickness 3mm Insulating Coating Aluminium EV Battery Module Coolant Plate 1Thickness 3mm Insulating Coating Aluminium EV Battery Module Coolant Plate 2







Chemical composition

Alloy Si Fe Cu Mn Mg Cr Zn V Ti
1050 ≤0.25 ≤0.40 ≤0.05 ≤0.05 ≤0.05 --- ≤0.05 ≤0.05 ≤0.03
1100 ≤0.95(Si+Fe)   0.05~0.20 ≤0.05 -- -- ≤0.10 --- ---
3102 ≤0.40 ≤0.70 ≤0.1 0.05~0.4 --- --- ≤0.3 --- ≤0.10

It can be customized according to customers' request!





Mechanical Properties

Alloy Temper  Tensile Strength  Yeild Strength Elongation
1050 O/F/H111/H112 ≥65MPa ≥200MPa ≥25%
1100 O/F/H111/H112 ≥75MPa ≥200MPa ≥25%
3102 O/F/H111/H112 ≥75MPa ≥200MPa ≥25%
3003 O/F/H111/H112 ≥75MPa ≥200MPa ≥25%







Q: What is your terms of payment ?

A: Normally 30% TT in advance, balance paid before shipment.

Q: How long does it take for samples and mass production?

A: Usually it will take 15-20 days for new moulds and free samples (within 5kg), after confirmation, 25-30 days for mass production.

Q: OEM/ODM available?

A: Yes,we can!

Q: Can you assist in design?

A: Yes, we can! We have a strong and experienced design team.

Q: Could you provide sample?

A: Yes, We are honored to offer you samples for quality check.

Q: Is sample order accepted?

A: Yes,we accept sample order and we can provide design service!
