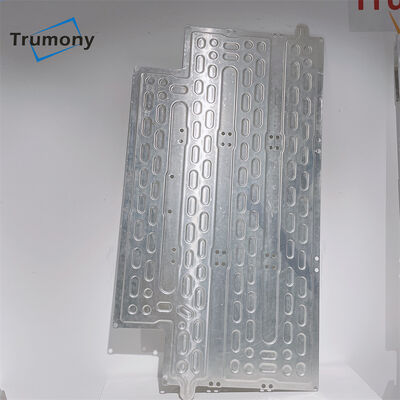

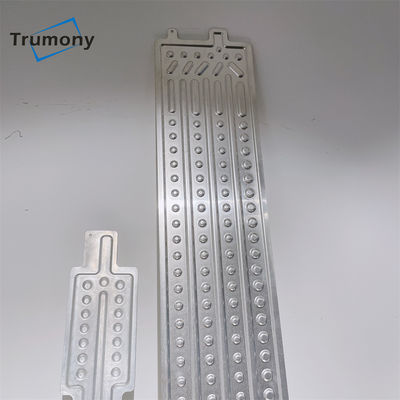

Customized Thickness Aluminium Lithium Ion Battery Cold Plate
| Product name: | Lithium Ion Battery Cold Plate | Thickness of whole plate: | 5~8 Mm Or Customized |
| Type of cooling plate: | Stamping Type, Extrusion Type, FSW Cold Plate, Roll-bonded Evaporator | Surface treatment: | Insulation Coating |
| Applications: | EV/ESS Battery Thermal Management | Design service: | Yes |
| Payment term: | 30% Prepaid In Advance, Balance Before Shipment | Packaging: | Exported Standard Package |
| HS code: | 7606XXXX | Key words: | Extrusion Cooling Tube, Water Cooled Plate, Liquid Cooling Tube For EV |
| High Light: | Customized Thickness Aluminium Cold Plate,Lithium Ion Battery Cold Plate,Customized Thickness Aluminum Cooling Plate |
||
Customized Thickness Aluminium Lithium ion Battery Cold Plate
Water cold plate is made of aluminum material. Trumony is a professional aluminum supplier, so we can control quality from aluminum igot and fast delivery.
We have R&D technical department, can provide design service: Cooling tube cooling plate design service, heat simulation service, flow path suggestion.
| Product name | Lithium ion Battery Aluminum Cold Plate |
| Plate size | According to your boundary size |
| Battery | Lithium ion battery, CAMs |
| Structure | Flow channel plate + bottom cooling plate + Inlet & outlet |
| Length | According to your design |
| Surface treatment | Insulation coated / Powder coating |
| Spare parts | Quick connector, thermal interface material (silicon pad), pump, etc. |
| Service | Cooling tube design service, heat simulation service, flow path suggestion, finalize production feasibility |
Full cooling solutions for you:
1) Stamping type cooling plate for prismatic cells / battery pack.
2) Extrusion snake tube for cylindrical cells, such as 21700, 18650, 3270, 4680 big cell.
3) Roll bonded cooling plate
4) FSW cooled plate
5) Aluminum cold plate with copper tube
Our Advantages:
1) Flexible solutions for battery cooling. (According to your module provide customized cooling plate)
2) Design service, we have R&D department, can do design finalization, flow and heat simulation.
3) CNC centre to make customized inlet/outlet connector.
4) Thermal Interface Material, such as thermal silicone pad, Insulation coating etc.
5) Quick sample make, fast delivery
Chemical composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
| 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.05 | ≤0.03 |
| 1100 | ≤0.95(Si+Fe) | 0.05~0.20 | ≤0.05 | -- | -- | ≤0.10 | --- | --- | |
| 3102 | ≤0.40 | ≤0.70 | ≤0.1 | 0.05~0.4 | --- | --- | ≤0.3 | --- | ≤0.10 |
It can be customized according to customers' request!
Mechanical Properties
| Alloy | Temper | Tensile Strength | Yeild Strength | Elongation |
| 1050 | O/F/H111/H112 | ≥65MPa | ≥200MPa | ≥25% |
| 1100 | O/F/H111/H112 | ≥75MPa | ≥200MPa | ≥25% |
| 3102 | O/F/H111/H112 | ≥75MPa | ≥200MPa | ≥25% |
| 3003 | O/F/H111/H112 | ≥75MPa | ≥200MPa | ≥25% |
A: Normally 30% TT in advance, balance paid before shipment.
Q: How long does it take for samples and mass production?
A: Usually it will take 15-20 days for new moulds and free samples (within 5kg), after confirmation, 25-30 days for mass production.
Q: OEM/ODM available?
A: Yes,we can!
Q: Can you assist in design?
A: Yes, we can! We have a strong and experienced design team.
Q: Could you provide sample?
A: Yes, We are honored to offer you samples for quality check.
Q: Is sample order accepted?
A: Yes,we accept sample order and we can provide design service!
