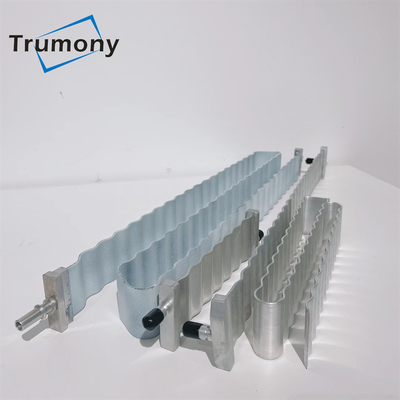

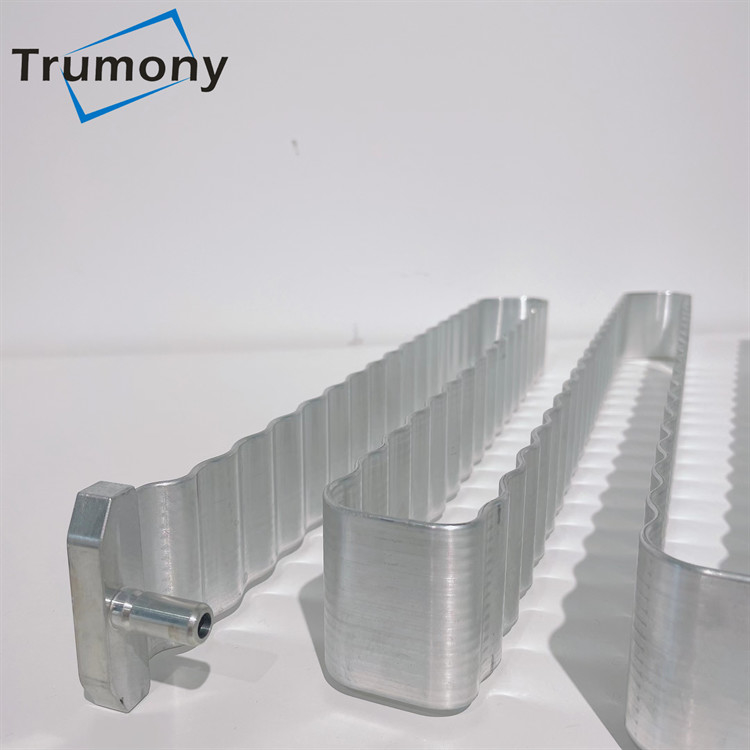

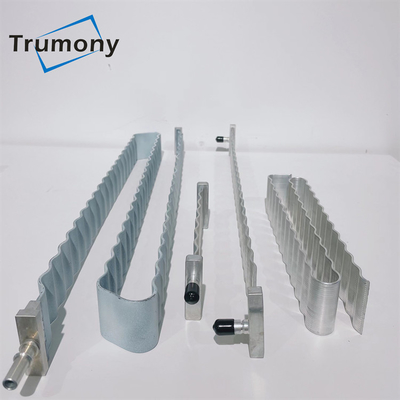

Convective Heat Transfer Aluminum Cooling Ribbon Tube For 21700 Cylindrical Battery Pack

MOQ: Sample available
Price: Negotiation
Standard Packaging: Ply-wood box specialized for export
Delivery Period: 30days including tooling time
Payment Method: T/T
Supply Capacity: 100000 tons yearly
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Trumony
Certification
ISO9001,ISO14000,IATF14969
Model Number
TR-CY142
Product Name:
Convective Heat Transfer Aluminum Cooling Ribbon For EV Battery Pack
Type:
Aluminum Cooling Tube
Process:
Aluminum Extrusion
Alloy:
3003
Temper:
O-H112
Application:
EV Battery Pack
Structure:
Micro Channel Tube+connector
Package:
Cartons+pallets
Highlight:

Heat Transfer Cooling Ribbon Tube

,

Aluminum Cooling Ribbon Tube

,

Aluminum Extrusion Ribbon Tube

Product Description

Convective Heat Transfer Aluminum Cooling Ribbon For EV Battery Pack

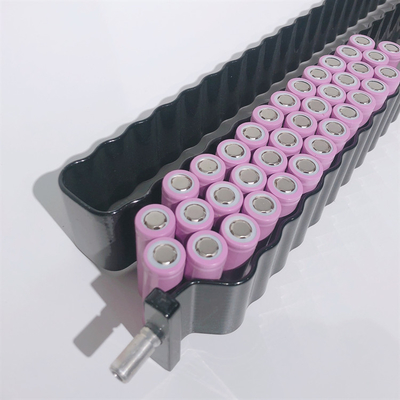

The cooling of the serpentine tube scheme is the radial cooling of the cylindrical core, that is, the heat from the central part of the cell, through the positive and negative coil layer, electrolyte, isolation film, etc., to the cylindrical side, in contact with the water cooling pipe; The bottom cooling is the axial cooling of the cylindrical battery, that is, the heat is transmitted downward along the positive and negative electrodes, electrolyte, isolation film, etc., respectively, to the bottom of the battery core shell and in contact with the water cooling plate.



Specification

Item  Aluminum cooling tube for cylindrical cells
Size  As your design
Thickness 2.4mm,3mm
Application cylindrical battery pack cooling
Service  Design, simulation, tooling ,prototype
Process  Aluminum extrusion
Liquid cooling type  cold plate cooling plate for EV, stamped cold plate for ESS,harmonica shaped cooling tube plate , EV battery snake cooling tube ,aluminum roll bonded plate




Battery cooling system



1- Aluminum cooling cold plate for battery pack

2- Serpentine tube for new energy vehicle

3- Aluminum microchannel cooling plate for soft package battery pack

4- Aluminum stamped cold plate





*****Key point of design

1- Specify the battery type: cylindrical cells / square cells or prismatic cells/ soft battery or pouch cells

2- Module boundary dimensions

3- Heat dissipation requirement

4- Design and prototype budget

5- All heat exchanger choice such as the connectors,plastic quick connectors,battery cooling plate installation





With very rich experience in making cooling plates for battery packs.Below are the strength from us that you can rely on:

1. Aid in cooling components design feasibility

2. Proven solutions for both prismatic and cylindrical cells

3. Capability in doing DVP with client

4. Fast support in Prototype making





FAQ :


1. What battery module cooling solution you can provide ?
A: We have 4 kinds of battery cooling type for your battery pack. Aluminum snake tube for cylindrical shaped of cells. Aluminum brazed cooled plate for prismatic cells ,aluminum micro channel plates for pouches and aluminum roll bonded panels .


2. What the alloy and temper of your water cooling plate ?
A: The aluminum alloy is 3000,6000 and temper is O-H112.



3. What the process technology to do the cold plate or coolant channles ?
A: Aluminum extrusion process , vacuum brazing process, roll bonded process and we also have CNC center.



4. Do you support customized prototype for battery pack module ?
A: Sure, we can produce the aluminum liquid cooling plate as your design. If just at the development stage, our existing cooled plate heat sinks are available for checking.



Convective Heat Transfer Aluminum Cooling Ribbon Tube For 21700 Cylindrical Battery Pack 0Convective Heat Transfer Aluminum Cooling Ribbon Tube For 21700 Cylindrical Battery Pack 1
