Product Details:
|
| Product Name: | 32700 Cylindrical Cells Battery Cooling Pack Snake Tube Plates For Electric Racing Vehicle | Type: | Cooling Ribbon |
|---|---|---|---|
| Process: | Aluminum Extrusion | Alloy: | 3003 |
| Temper: | O-H112 | Application: | EV Battery Pack |
| Structure: | Micro Channel Tube+connector | Package: | Cartons+pallets |
| Highlight: | Cylindrical Cell Cooling Plates,Aluminum Extrusion Cooling Plates,Alu Extrusion Cooling Plates |
||

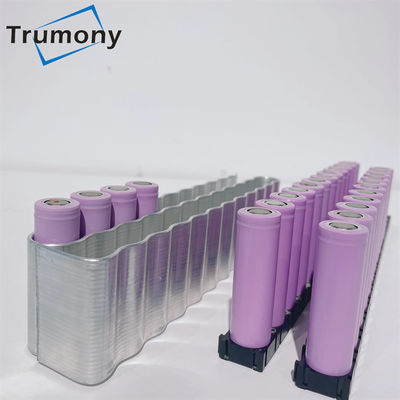

32700 Cylindrical Cells Battery Cooling Pack Snake Tube Plates for Electric Racing Vehicle
Trumony as the one of the earliest manufacturer of heat exchanger in China, provide the optimal cooling solutions for electric vehicle & energy storage system battery pack . We can provide the design package service as your request of the battery type, heat transfer effect and your battery pack boundary size .For the 18650,21700 lithium ion batteries, we have rich experience and successful cases for your reference .
| Item | Aluminum cooling tube for cylindrical cells |
| Size | As your design |
| Thickness | 2.4mm,3mm |
| Application | cylindrical battery pack cooling |
| Service | Design, simulation, tooling ,prototype |
| Process | Aluminum extrusion |
| Liquid cooling type | cold plate cooling plate for EV, stamped cold plate for ESS,harmonica shaped cooling tube plate , EV battery snake cooling tube ,aluminum roll bonded plate |
Battery cooling system
1- Aluminum cooling cold plate for battery pack
2- Serpentine tube for new energy vehicle
3- Aluminum microchannel cooling plate for soft package battery pack
4- Aluminum stamped cold plate
*****Key point of design
1- Specify the battery type: cylindrical cells / square cells or prismatic cells/ soft battery or pouch cells
2- Module boundary dimensions
3- Heat dissipation requirement
4- Design and prototype budget
5- All heat exchanger choice such as the connectors,plastic quick connectors,battery cooling plate installation
With very rich experience in making cooling plates for battery packs.Below are the strength from us that you can rely on:
1. Aid in cooling components design feasibility
2. Proven solutions for both prismatic and cylindrical cells
3. Capability in doing DVP with client
4. Fast support in Prototype making
FAQ :
1. What battery module cooling solution you can provide ?
A: We have 4 kinds of battery cooling type for your battery pack. Aluminum snake tube for cylindrical shaped of cells. Aluminum brazed cooled plate for prismatic cells ,aluminum micro channel plates for pouches and aluminum roll bonded panels .
2. What the alloy and temper of your water cooling plate ?
A: The aluminum alloy is 3000,6000 and temper is O-H112.
3. What the process technology to do the cold plate or coolant channles ?
A: Aluminum extrusion process , vacuum brazing process, roll bonded process and we also have CNC center.
4. Do you support customized prototype for battery pack module ?
A: Sure, we can produce the aluminum liquid cooling plate as your design. If just at the development stage, our existing cooled plate heat sinks are available for checking.
