Product Details:
|
| Item: | Liquid Cooling Plate | Structure Of Cold Plate: | Liquid Channel, Bottom Plate, Inlet, Outlet |
|---|---|---|---|
| Type Of Cooling Plate: | Stamped Cooling Plate For EV | Surface Treatment: | Insulation Coating, Powder Spray, As Your Requirement |
| Applications: | Electric Vehicle, Household / Commercial ESS | Design Service: | Available |
| Package: | Exported Standard Wooden Package | HS Code: | 7606 |
| Key Words: | Aluminum Cooling Pipe, Stamping Type Cooling, Water Coldplate | Material: | Aluminum |
| Alloy: | 3XXX, 6XXX | Thermal Simulation: | YES |
| High Light: | Stamping Aluminum Cooling Pipe,Stamped Liquid Cold Plate,Stamped Cooling Plate For EV |
||

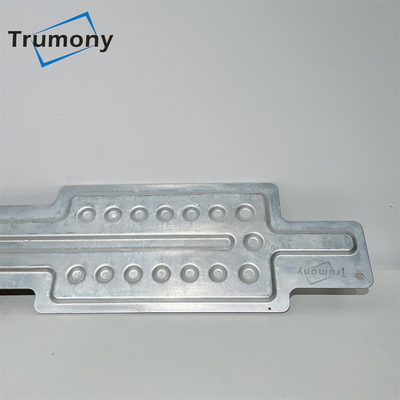

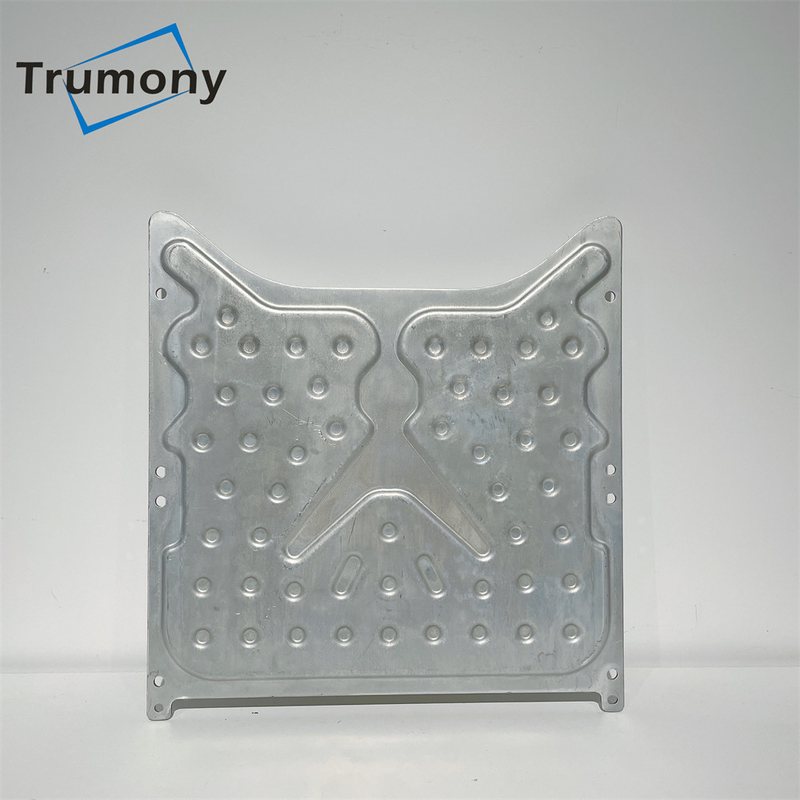

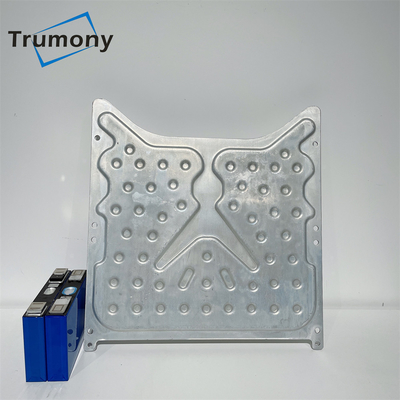

Electric Racing Cars Battery Thermal System Aluminum Liquid Cold Plate
The battery thermal management system of Electric Vehicle mainly includes batteries, liquid cooling plate, and other important components. Trumony is speciliazed in providing vacuum brazing cooling plates, serpentine cooling ribbon for cylindrical cells, roll bonded coolant plate.
| Product name | Liquid cooling plate for EV |
| Plate size | Max to 1400mm * 2000mm |
| Cells | Prismatic battery, Battery pack |
| Structure | cooling channel plate, bottom cooling plate, connector |
| Thickness | Suggest 5~8mm |
| Surface treatment | Insulation coating, Powder spary |
| Spare parts | Quick connector,silicon pad, pump, etc. |
| Service | Liquid cooling tube design service, heat simulation service, flow path suggestion, finalize production feasibility |

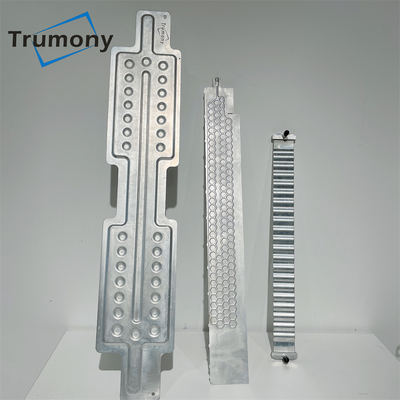

Full cooling solutions for you:
1) Stamped type cooling plate for prismatic cells / battery pack.
2) Extrusion snake tube for cylindrical cells, such as 21700, 18650, 3270, 4680 big cell.
3) Roll bonded cooling plate
4) FSW cooled plate
5) Aluminum cold plate with copper tube
Our Advantages:
1) Flexible solutions for battery cooling. (According to your module provide customized cooling plate)
2) Design service, we have R&D department, can do design finalization, flow and heat simulation.
3) CNC centre to make customized inlet/outlet connector.
4) Thermal Interface Material, such as thermal silicone pad, Insulation coating etc.
5) Quick sample make, fast delivery
Keyword:
Liquid cooled plate, coolant plate, water coldplate, Aluminum cooling plate, liquid cooled ribbon, water cooled plate, liquid cooling plate, liquid cooling pipe, snake tube, battery cooling, battery cooling pipe, aluminum cooled plate, ESS cooled plate, 4680 cells cooling, cold plate for EV battery, thermal simulation, heat simulation, lithium ion battery cooling.
Chemical composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
| 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.05 | ≤0.03 |
| 1100 | ≤0.95(Si+Fe) | 0.05~0.20 | ≤0.05 | -- | -- | ≤0.10 | --- | --- | |
| 3102 | ≤0.40 | ≤0.70 | ≤0.1 | 0.05~0.4 | --- | --- | ≤0.3 | --- | ≤0.10 |
It can be customized according to customers' request!
Mechanical Properties
| Alloy | Temper | Tensile Strength | Yeild Strength | Elongation |
| 1050 | O/F/H111/H112 | ≥65MPa | ≥200MPa | ≥25% |
| 1100 | O/F/H111/H112 | ≥75MPa | ≥200MPa | ≥25% |
| 3102 | O/F/H111/H112 | ≥75MPa | ≥200MPa | ≥25% |
| 3003 | O/F/H111/H112 | ≥75MPa | ≥200MPa | ≥25% |
A: Normally 30% TT in advance, balance paid before shipment.
Q: How long does it take for samples and mass production?
A: Usually it will take 15-20 days for new moulds and free samples (within 5kg), after confirmation, 25-30 days for mass production.
Q: OEM/ODM available?
A: Yes,we can!
Q: Can you assist in design?
A: Yes, we can! We have a strong and experienced design team.
Q: Could you provide sample?
A: Yes, We are honored to offer you samples for quality check.
Q: Is sample order accepted?
A: Yes,we accept sample order and we can provide design service!
