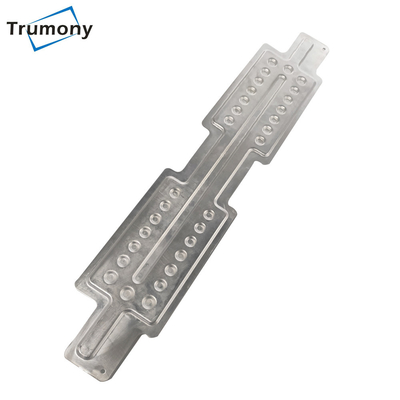

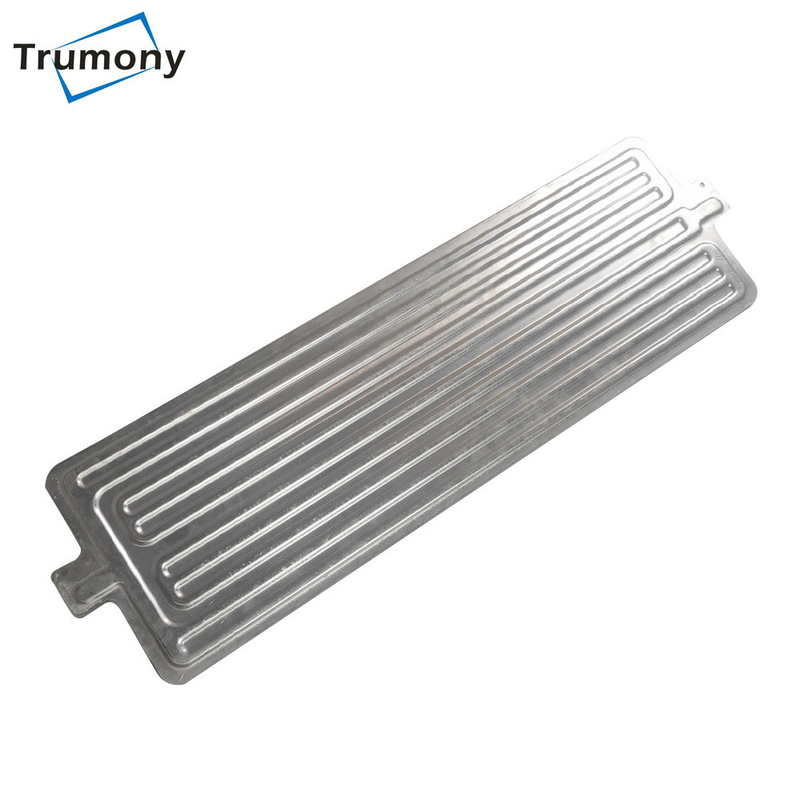

Electric Vehicle Battery Liquid Cold Plate For Heat Exchangers

Electric Vehicle Battery Liquid Cold Plate For Heat Exchangers
Electric Vehicle Battery Liquid Cold Plate For Heat Exchangers
Electric Vehicle Battery Liquid Cold Plate For Heat Exchangers Electric Vehicle Battery Liquid Cold Plate For Heat Exchangers Electric Vehicle Battery Liquid Cold Plate For Heat Exchangers Electric Vehicle Battery Liquid Cold Plate For Heat Exchangers Electric Vehicle Battery Liquid Cold Plate For Heat Exchangers Electric Vehicle Battery Liquid Cold Plate For Heat Exchangers

Large Image :  Electric Vehicle Battery Liquid Cold Plate For Heat Exchangers

Product Details:
Place of Origin: China
Brand Name: Trumony
Certification: TS16949, ISO, RoHS
Model Number: TR-T22037
Payment & Shipping Terms:
Minimum Order Quantity: Sample trial can be arranged
Price: Negotiation
Packaging Details: Export Standard Packing
Delivery Time: 4~6wks with mold tooling time
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000000pcs/Every Year

Electric Vehicle Battery Liquid Cold Plate For Heat Exchangers

Description
Product: EV Battery Cooling Plate Raw Material: Aluminum
Series: 3 ***/ 6 *** Temper: H112
Applications: EV Cars, EV Bicycle, Minibus, 2-wheel Cars, Truck Package: Exported Standard Package
Key Words: Battery Cooling System, Water Cold Plate, Lithium Ion Battery Cooling Plate Suface Treatment: Milled
Components: TIM, Quick Connector, Pump Process: Welding, Brazing, Punching, Extrusion, FSW
High Light:

Milled Aluminum Cooling Plate

,

EV Battery Liquid Cold Plate

,

Heat Exchangers Liquid Cold Plate

Electric Vehicle Battery Liquid Cold Plate for Heat Exchangers

With the increasing energy density of the instruments, liquid cooling system is becoming more and more prevalent.

Liquid cooling system fully leverage the high heat capacity of the liquid, which absorbs and transports the heat at a high rate. very efficiently, as compared to air cooling or solid conduction. Liquid cooling system can solve the heat problem that can not be solved by traditional air cooling systems. And also its cost is continuously decreasing because of maturer production process. Undoubtedly it is becoming a most compact sustainable, cost effective and efficient method to cool high density heat loads.
Liquid cooling system can not work without well-developed aluminum cold plates. Has been in heat exchange material for so many years, Trumony is capable of tailoring a suitable cooling solution for you.



Features:

*Design options:

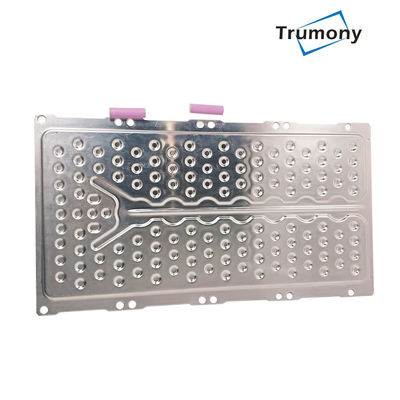

1) Punching cooling plate

It used for prismatic cells and battery pack, bottom & side cooling solution;

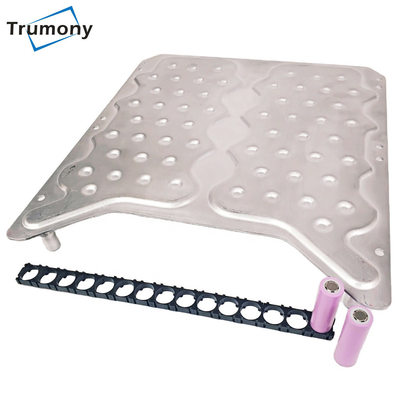

2) Serpentine cooling ribbon

Applied for cylindrical cells: 18650, 21700, 3270, 4680 and etc;

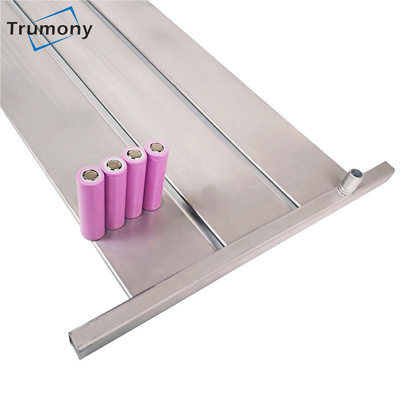

3) Micro-channel tube with manifold

For battery pack side or bottom battery cooling;

4) Roll bonding cooling plate;

5) Friction stir welding plate

It has a simpler welding process, higher production efficiency, higher weld strength, and can avoid problems such as pores and liquid leakage in high-temperature fusion welding.



* Customized plate size and flow channel path

1) Design your liquid cooling plate according to battery pack boundary size;

2) Optimization flow path as the result of flow field simulation;



* One-stop service package

1) Design service: thermal simulation, flow field simulation, prototype making;

2) Online meeting technical support;

3) Sample fast dispatch;

4) Related components: thermal interface material, silicone pad, pump, quick connector.



Product name Liquid cooling plate for EV
Plate size As your request
Cells  Prismatic battery, Battery pack
Structure cooling channel plate, bottom cooling plate,  connector
Thickness                                   As your request
Surface treatment Insulation coating, Powder spary
Components Quick connector,silicon pad, pump, etc.
Service Liquid cooling tube design service, heat simulation service, flow path suggestion, finalize production feasibility





Keywords:

Battery cooling system, 4680 cells cooling, Water cold plate, Lithium ion battery cooling plate, Liquid cooled plate, coolant plate, water coldplate, Aluminum cooling plate, liquid cooled ribbon, water cooled plate, liquid cooling plate, liquid cooling pipe, snake tube, battery cooling, battery cooling pipe, aluminum cooled plate, cooled plate for ESS, cold plate for EV battery, thermal simulation, heat simulation, lithium ion battery cooling.







Detail Products



Electric Vehicle Battery Liquid Cold Plate For Heat Exchangers 0Electric Vehicle Battery Liquid Cold Plate For Heat Exchangers 1





Chemical composition

Alloy Si Fe Cu Mn Mg Cr Zn V Ti
1050 ≤0.25 ≤0.40 ≤0.05 ≤0.05 ≤0.05 --- ≤0.05 ≤0.05 ≤0.03
1100 ≤0.95(Si+Fe)   0.05~0.20 ≤0.05 -- -- ≤0.10 --- ---
3102 ≤0.40 ≤0.70 ≤0.1 0.05~0.4 --- --- ≤0.3 --- ≤0.10

It can be customized according to customers' request!





Mechanical Properties

Alloy Temper  Tensile Strength  Yeild Strength Elongation
1050 O/F/H111/H112 ≥65MPa ≥200MPa ≥25%
1100 O/F/H111/H112 ≥75MPa ≥200MPa ≥25%
3102 O/F/H111/H112 ≥75MPa ≥200MPa ≥25%
3003 O/F/H111/H112 ≥75MPa ≥200MPa ≥25%







Q: What is your terms of payment ?

A: Normally 30% TT in advance, balance paid before shipment.

Q: How long does it take for samples and mass production?

A: Usually it will take 15-20 days for new moulds and free samples (within 5kg), after confirmation, 25-30 days for mass production.

Q: OEM/ODM available?

A: Yes,we can!

Q: Can you assist in design?

A: Yes, we can! We have a strong and experienced design team.

Q: Could you provide sample?

A: Yes, We are honored to offer you samples for quality check.

Q: Is sample order accepted?

A: Yes,we accept sample order and we can provide design service!
