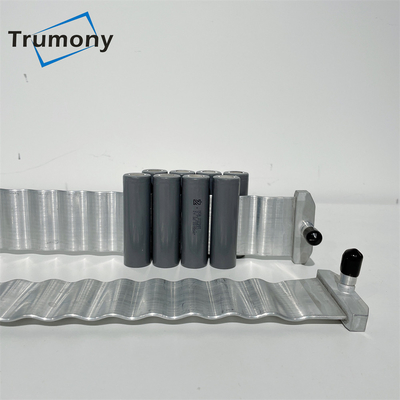

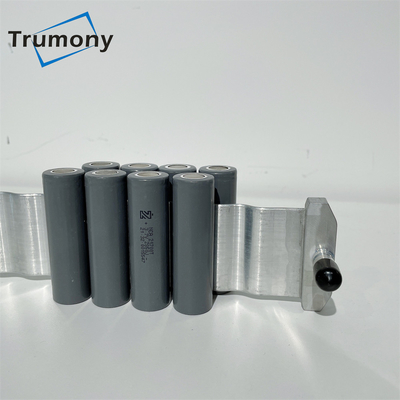

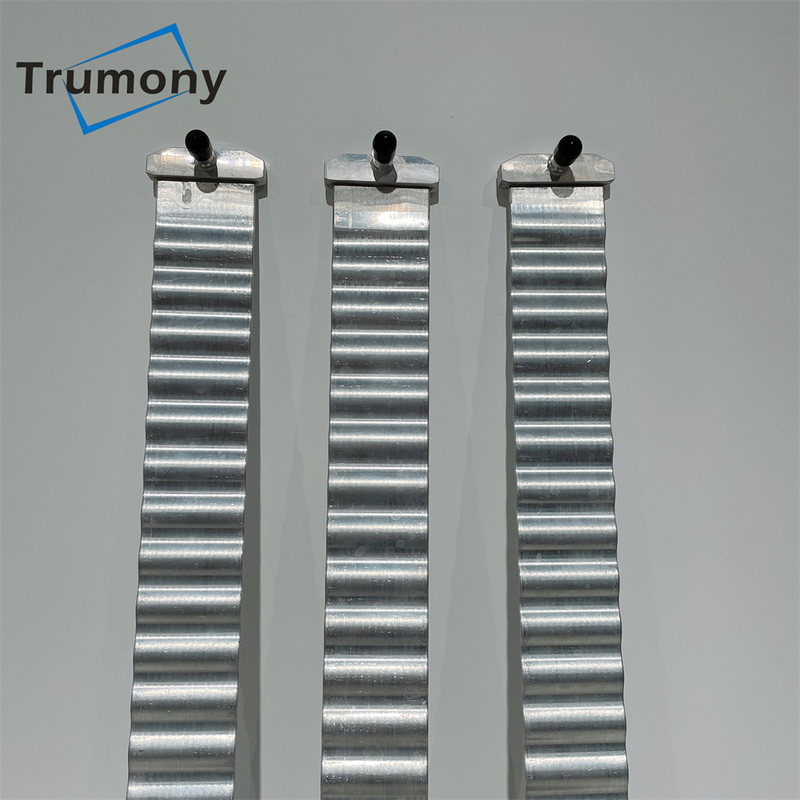

Lithium ion Battery Snake Cooling Ribbon for 21700 Cylindrical Cells
| Item: | Water Cooling Ribbon | Specification: | Per Clients' Drawing |
| Length: | Customized | Design service: | Support |
| Shape: | Serpentine/Bent/Snake/Straight | Surface treatment: | Powder Ppray/Insulation/Film Coated |
| Package: | Exported Standard Packing | Processing: | Punching/Bending/Welding/Stamping/Extrusion/Cutting/Coating |
| Key words: | Cooling Ribbon, Water Cold Pipe, Cooling Tube For EV | Application: | Passenger Cars, Heavy Duty, Trucks, Bus, Marine |
| High Light: | Lithium Ion Battery Snake Ribbon,Snake Cooling Ribbon,Lithium Ion Battery Cooling Ribbon |
||
Lithium ion Battery Snake Cooling Ribbon for 21700 cells
Electromobile/electric vehicle/New energy automobile/vehicle/car battery cooling widely use our aluminum brazing water cooling sheets/plates.
We are not only manufacturer, but also design and development company, better heat exchanger solutions are our specialit
We specilized in:
1) Stamped type cooling plate for prismatic cells / battery pack.
2) Extrusion snake tube for cylindrical cells, such as 21700, 18650, 3270, 4680 big cell.
3) Extruded cold plate
Our Advantages:
1) Full solutions for battery cooling. (According to your module provide customized cooling plate)
2) Design service, we have R&D department, can do design finalization, flow and heat simulation.
3) CNC centre to make customized inlet/outlet connector.
4) Thermal Interface Material, such as thermal silicone pad, Insulation coating etc.
Test Ability:
|
Chemical Composition Test |
YES |
|
Pysical Test & Optics Test |
YES |
|
Roughness Test & Hardness Test |
YES |
|
Elongation Test |
YES |
|
Salt Spray Test |
YES |
|
Burst Test |
YES |
|
Nitrogen & Helium Test |
YES |
|
Flow Resistance Test |
YES. Inside &outside corrosion test |
|
Voltage Test |
YES |
|
Under Water Test |
YES. Check the leakage for welding |
Chemical composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
| 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.05 | ≤0.03 |
| 1100 | ≤0.95(Si+Fe) | 0.05~0.20 | ≤0.05 | -- | -- | ≤0.10 | --- | --- | |
| 3102 | ≤0.40 | ≤0.70 | ≤0.1 | 0.05~0.4 | --- | --- | ≤0.3 | --- | ≤0.10 |
It can be customized according to customers' request!
Mechanical Properties
| Alloy | Temper | Tensile Strength | Yeild Strength | Elongation |
| 1050 | O/F/H111/H112 | ≥65MPa | ≥200MPa | ≥25% |
| 1100 | O/F/H111/H112 | ≥75MPa | ≥200MPa | ≥25% |
| 3102 | O/F/H111/H112 | ≥75MPa | ≥200MPa | ≥25% |
| 3003 | O/F/H111/H112 | ≥75MPa | ≥200MPa | ≥25% |
FAQ:
Q: Are you a trading company or manufacturer?
A: Yes,we are a factory with more than 10 years history in this industry.
Q: What is your terms of payment ?
A: Normally 30% TT in advance, balance paid before shipment.
Q: How long does it take for samples and mass production?
A: Usually it will take 15-20 days for new molds and free samples (within 5 kg),;after confirmation, 25-30 days for mass production.
Q: OEM/ODM available?
A: Yes,we can!
Q: Could you provide sample?
A: Yes, We are honored to offer you samples for quality check.
Q: Is sample order accepted?
A: Yes,we accept sample order and we can provide design service!
