Product Details:
|
| Item: | Aluminum Multiport Tube | Alloy No.: | 4343/3003/4343, 3003,6061 |
|---|---|---|---|
| Temper: | O/H14/H16/H18/H24/H112 | Thickness Of Tube: | 1.2mm~10mm |
| Wall Thickness: | 0.4~3mm | Width: | 12~40mm |
| Tolerance: | ±0.03/±0.05mm | Fixed Length: | Customized |
| Processing: | Extrusion, Cutting | Surface Treatment: | Zinc Spray, Mill Finished |
| Applications: | Air Conditioner, Car Radiator, Evaporator, Oil Cooler, Condenser, | Keywords: | Extrusion Tube For Condenser, Multiport Tube, Microchannel Tube |
| High Light: | Aluminum Multiport Tube,Extruded Micro Channel Flat Tube,Extruded Multiport Tube |
||

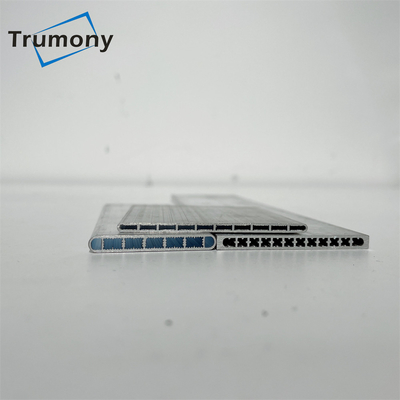

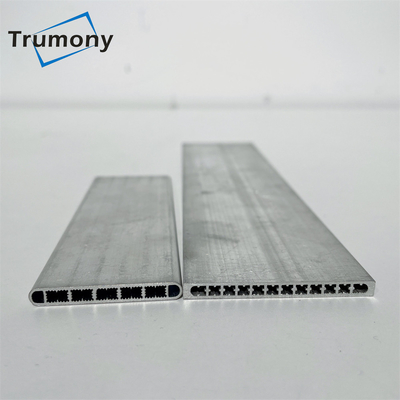

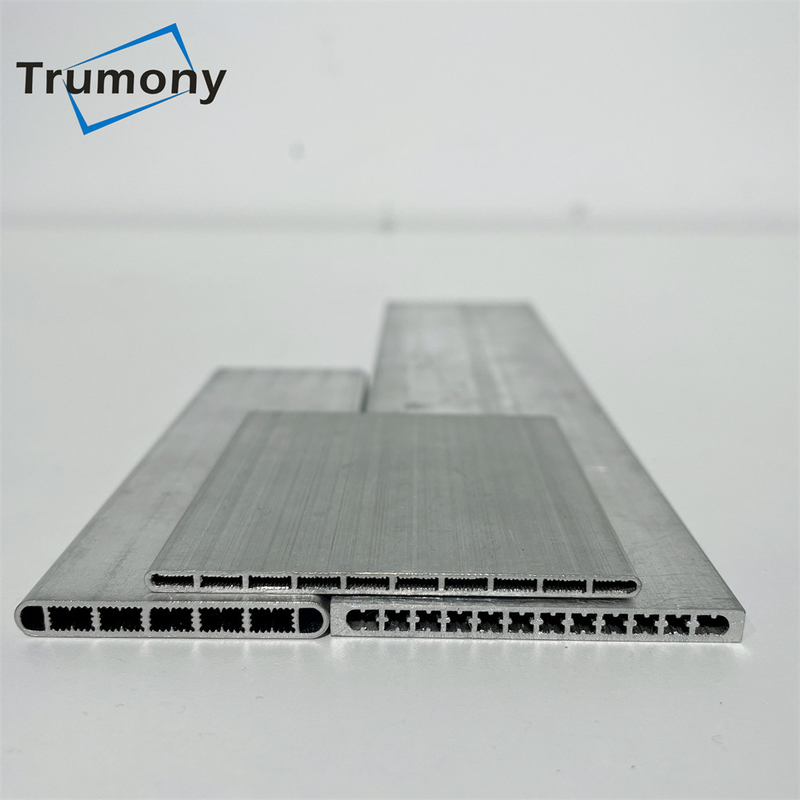

Harmonica Aluminum Radiators Parts Extruded Micro Channel Flat Tube
The micro-channel aluminum flat tube is widely used for automobile air conditioner.
1. From the structural point of view: the traditional radiator's copper tube is a cylindrical structure, while the micro-channel aluminum tube adopts a porous flat structure, so the surface area of the micro-channel aluminum flat tube is much larger than that of the copper tube, while the footprint is much smaller. So the heat exchange capacity is stronger, and it can also reduce the refrigerant dosage by 70%, which makes it more adaptable to the compact structure of the car, and with the optimization of EC motor, the heat exchange efficiency will be greatly improved.
2. Reduce noise: Micro-channel aluminum flat tube composed of high-efficiency spiral coil, and EC motor combination can also reduce the noise by 50%, so many countries are basically strongly required to use micro-channel aluminum flat tube in the air conditioning on the car.
Specifications:
| Items | Range |
| Width | 8mm~40mm |
| Thickness | 1.2mm~10mm |
| Wall thickness | 0.15mm~0.8mm |
| Thickness of zinc spraying | 6g/mm²~15g/mm² |
| Fixed length | 200mm~4000mm |
| Number of ports | 3~30 |
It can be customized according to customers' request!
Mechanical Properties
| Mechanical property | ||||
| Alloy Code | Temper | Tensile Strength Rm(Mpa) | Yield Strength(Mpa) | Elongation(%) |
| TR-151 Tube material | O | 95-135* | ≥35* | ≥15* |
| H14 | 140-185 | ≥125 | ≥1.5 | |
| H24 | 140-185 | ≥125 | ≥3 | |
| H16 | 185-225 | 160 | ≥1 | |
| H18 | ≥185 | —— | ≥0.5 | |
| TR-166 Tube material | H24 | 185-235 | ≥150 | ≥8 |
| TR-116 tube material | H14 | 140-185 | ≥125 | ≥3 |
| H24 | 140-185 | ≥125 | ≥8 | |
Chemical composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
| 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.05 | ≤0.03 |
| 1100 | ≤0.95(Si+Fe) | 0.05~0.20 | ≤0.05 | -- | -- | ≤0.10 | --- | --- | |
| 3102 | ≤0.40 | ≤0.70 | ≤0.1 | 0.05~0.4 | --- | --- | ≤0.3 | --- | ≤0.10 |
It can be customized according to customers' request!
Our advantage
Trumony started up since 2006, we have rich experience in this industry in China;
We have our own development department for new material research;
Good reputation in household foil areas;
We start our productions from aluminum ingot,so we can control the quality as well;
All parts of ladder is self manufacturing, we have price advantage.
We have good experience and cooperation with big client in the world;
With Certificate ISO9001-2008;
Fast delivery time;
Sample order is acceptable
High performance cost ratio;
Good communication skills, and good service and understandings for customers
Appliances:
Engine cooling and air conditioner system, such as oil cooler and heater, evaporator, aluminum radiator, aluminum condenser
Home appliances electrics industries, for example HAVC heat exchangers, refrigerator, PTC heating unit, air conditioner;
New energy industry: water cooled plate for EV battery / ESS battery
FAQ:
Q: Are you a trading company or manufacturer?
A: Yes,we are a factory with more than 10 years history in this industry.
Q: What is your terms of payment ?
A: Normally 30% TT in advance, balance paid before shipment.
Q: How long does it take for samples and mass production?
A: Usually it will take 15-20 days for new molds and free samples (within 5 kg),;after confirmation, 25-30 days for mass production.
Q: OEM/ODM available?
A: Yes,we can!
Q: Could you provide sample?
A: Yes, We are honored to offer you samples for quality check.
Q: Is sample order accepted?
A: Yes,we accept sample order and we can provide design service!
