High Effect Thermal Energy Water Cooling Ribbon For Containerized ESS
  • Name
  • Name
  • Name
  • Name

High Effect Thermal Energy Water Cooling Ribbon For Containerized ESS

MOQ: Sample trial can be arranged
Price: Negotiation
Standard Packaging: Export Standard Packing
Delivery Period: 4~6wks with mold tooling time
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 1000000pcs/Every Year
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Trumony
Certification
TS16949, ISO9001, RoHS
Model Number
TR-T22044
Item:
Serpentine Cooling Ribbon
Specifications:
Per Clients' Request
Fixed Length:
Per Your Request
Design Service:
Yes
Shape:
Straight, Bending, Snake
Surface Treatment:
Insulation Coating: Powder Spray, With TIM
Package:
Exported Standard Packiage
Processing Procedure:
Extrusion, Bending, Welding, Brazing, Cutting
Key Words:
Cooling Ribbon For EV, Aluminum Cold Plate For ESS, Water Cooling Plate
Applications:
Commercial Cars, Passenger Cars, Heavy Duty, Trucks, Minibus, Marine, Aircraft
Highlight:

Water Cooling Ribbon

,

Containerized ESS Cooling Ribbon

,

Containerized ESS Serpentine Ribbon

Product Description

High-effect Thermal Energy Water Cooling Ribbon for Containerized ESS

Liquid-cooled heat dissipation allows precise temperature management of each cell through convective heat exchange of coolant.The basic components of liquid-cooled system include: liquid-cooled plate, liquid-cooled unit (heater option), liquid-cooled pipeline (including temperature sensor, valve), high and low pressure wiring harness; coolant (ethylene glycol aqueous solution), etc.



Item Aluminum snake cooling tube for EV/ESS battery
Specification According to your module
Processing Extrusion, welding, brazing, coating..
Accessories package Quick connector, water line fitting, water distributor, manifold, inlet, outlet etc.
Mold: Extrusion, Waving shape, fixture tooling





We specilized in:
1) Stamped type water cooling plate for prismatic cells / battery pack.
2) Extruded snake tube for cylindrical cells, such as 21700, 18650, 3270, 4680, 4695 big cell.
3) Roll bonded cooling plate

4) Machined cold plate

5) Sandwich structure cold plate



Our Advantages:
1. Tooling development — we do it in house, so we can make initial testing prompt and accurate.
2. Making all kinds of heat exchangers — we can do customized shape, to make the parts fit into different packs.
3. Assistance in parts design — we have experienced engineer team, they can provide professional suggestions regarding feasibility of carrying out new designs.
4. One station service — we can do heat exchangers, as well as its related insulation and silicon pad. So client can get integrated solution.




Test Ability:

Chemical Composition Test

YES

Pysical Test & Optics Test

YES

Roughness Test & Hardness Test

YES

Elongation Test

YES

Salt Spray Test

YES

Burst Test

YES

Nitrogen & Helium Test

YES

Flow Resistance Test

YES. Inside &outside corrosion test

Voltage Test

YES

Under Water Test

YES. Check the leakage for welding





Detail Products

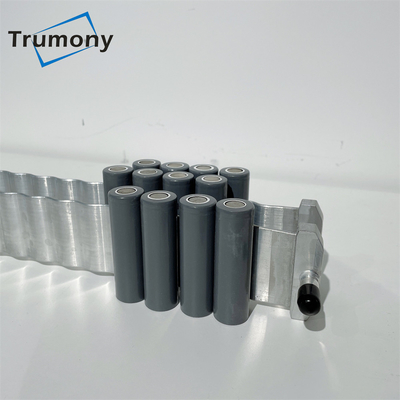

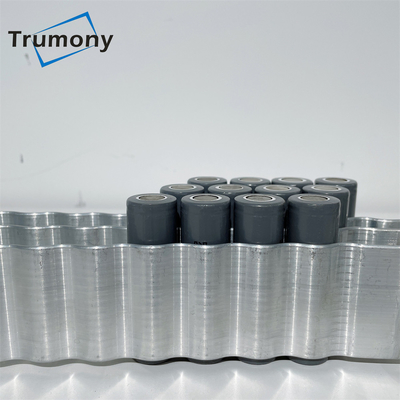

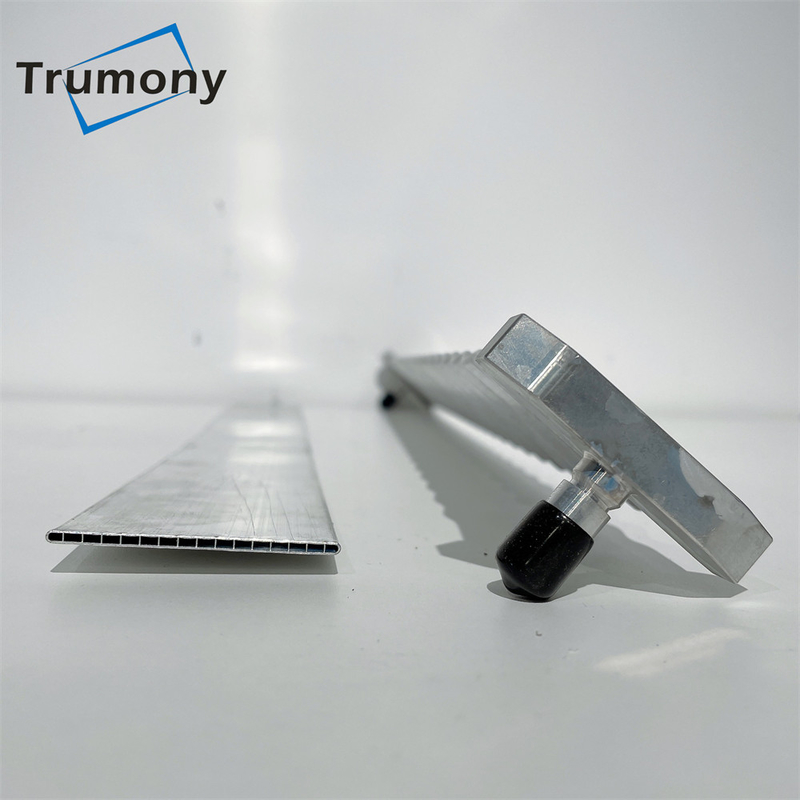

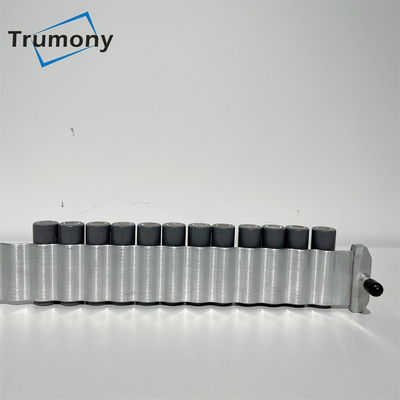

High Effect Thermal Energy Water Cooling Ribbon For Containerized ESS 0High Effect Thermal Energy Water Cooling Ribbon For Containerized ESS 1High Effect Thermal Energy Water Cooling Ribbon For Containerized ESS 2







Chemical composition

Alloy Si Fe Cu Mn Mg Cr Zn V Ti
1050 ≤0.25 ≤0.40 ≤0.05 ≤0.05 ≤0.05 --- ≤0.05 ≤0.05 ≤0.03
1100 ≤0.95(Si+Fe)   0.05~0.20 ≤0.05 -- -- ≤0.10 --- ---
3102 ≤0.40 ≤0.70 ≤0.1 0.05~0.4 --- --- ≤0.3 --- ≤0.10

It can be customized according to customers' request!





Mechanical Properties

Alloy Temper  Tensile Strength  Yeild Strength Elongation
1050 O/F/H111/H112 ≥65MPa ≥200MPa ≥25%
1100 O/F/H111/H112 ≥75MPa ≥200MPa ≥25%
3102 O/F/H111/H112 ≥75MPa ≥200MPa ≥25%
3003 O/F/H111/H112 ≥75MPa ≥200MPa ≥25%







FAQ:

Q: Are you a trading company or manufacturer?
A: Yes,we are a factory with more than 10 years history in this industry.



Q: What method of processing technology?

A: We have brazing line, stamping line, extrusion line, and roll boned process line. Also CNC centre is available.



Q: If we don't have design, can you assist in design?

A: Yes, we can! We have a strong and experienced design team. Flow path design, thermal simulation, mechanical simulation and design optimation are support. Kindly share with us your detail project, service8@trumony.com, we'd love to do DFM for you.



Q: How fast you can make prototype?

A: About 3~5wks. The precise lead time will depends on your design and producing process
