Product Details:
|
| Item: | Parallel Flow Aluminum Flat Tube | Alloy No.: | 4343/3003/4343, 3003,6061, 1100, 3102 |
|---|---|---|---|
| Temper: | O/H111/H112 | Thickness Of Aluminum Flat Tube: | 1.2mm~10mm |
| Wall Thickness: | 0.4~3 Mm | Width Of Parallel Flow Tube: | 12~40mm |
| Tolerance: | ±0.03/±0.05mm | Fixed Length: | Per Your Request |
| Processing: | Extrusion, Cutting, Coating | Surface Treatment: | Mill Finished |
| Applications: | Evaporator, Condenser,Air Conditioner, Car Radiator, Oil Cooler, | Keywords: | Parallel Flow Flat Tube, Extrusion Tube For Condenser, Multiport Tube, Microchannel Tube |
| High Light: | Parallel Flow Aluminum Flat Tube,Parallel Flow Flat Tube,Aluminum Extruded Flow Flat Tube |
||

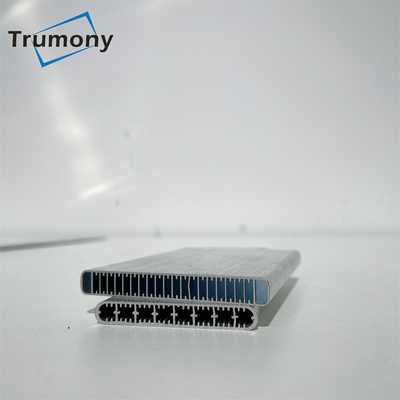

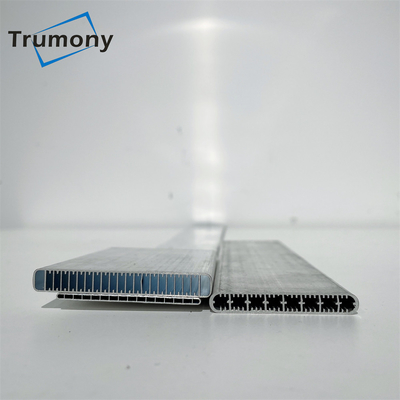

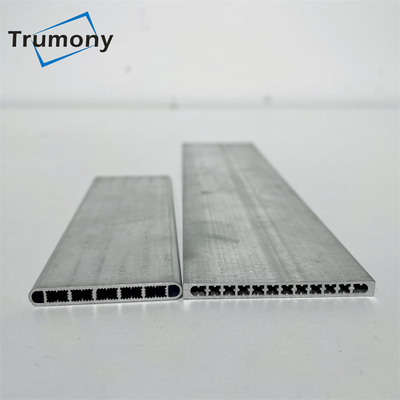

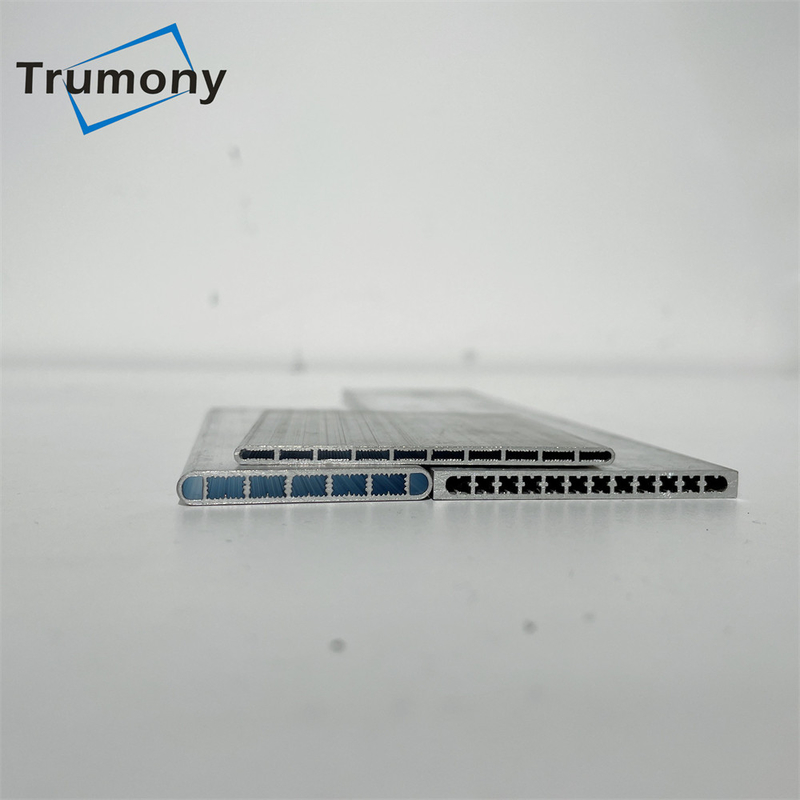

Aluminum Extruded Parallel Flow Flat Tube for Aluminum Condenser Evaporator
The parallel flow aluminum flat tube is widely used for automobile air conditioner, home appliance refrigeration, refrigerator freezer, vehicle refrigeration, base station cooling, industrial refrigeration.
Microchannel tubes have a flat and rectangular shape containing several channels.
Features:
High surface finish
Large refrigerant flow
Large contact area
Large heat exchange capacity
Good corrosion resistance
Good forming and bending performance
Small deviation range and high surface quality
Process:
1. Hot extrusion from refined aluminum ingot
2. Zinc spraying
3. Automatic coil formation
4. Coiled material
5. Coil unfolding and adjust
6. Fixed-length tube formation
Specifications:
| Items | Range |
| Width | 8mm~40mm |
| Thickness | 1.2mm~10mm |
| Wall thickness | 0.15mm~0.8mm |
| Thickness of zinc spraying | 6g/mm²~15g/mm² |
| Fixed length | 200mm~4000mm |
| Number of ports | 3~30 |
It can be customized according to customers' request!
Mechanical Properties
| Mechanical property | ||||
| Alloy Code | Temper | Tensile Strength Rm(Mpa) | Yield Strength(Mpa) | Elongation(%) |
| TR-151 Tube material | O | 95-135* | ≥35* | ≥15* |
| H14 | 140-185 | ≥125 | ≥1.5 | |
| H24 | 140-185 | ≥125 | ≥3 | |
| H16 | 185-225 | 160 | ≥1 | |
| H18 | ≥185 | —— | ≥0.5 | |
| TR-166 Tube material | H24 | 185-235 | ≥150 | ≥8 |
| TR-116 tube material | H14 | 140-185 | ≥125 | ≥3 |
| H24 | 140-185 | ≥125 | ≥8 | |
Chemical composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
| 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.05 | ≤0.03 |
| 1100 | ≤0.95(Si+Fe) | 0.05~0.20 | ≤0.05 | -- | -- | ≤0.10 | --- | --- | |
| 3102 | ≤0.40 | ≤0.70 | ≤0.1 | 0.05~0.4 | --- | --- | ≤0.3 | --- | ≤0.10 |
It can be customized according to customers' request!
Our advantage
Trumony started up since 2006, we have rich experience in this industry in China;
We have our own development department for new material research;
Good reputation in household foil areas;
We start our productions from aluminum ingot,so we can control the quality as well;
All parts of ladder is self manufacturing, we have price advantage.
We have good experience and cooperation with big client in the world;
With Certificate ISO9001-2008;
Fast delivery time;
Sample order is acceptable
High performance cost ratio;
Good communication skills, and good service and understandings for customers
FAQ:
Q: Are you a trading company or manufacturer?
A: Yes,we are a factory with more than 10 years history in this industry.
Q: What is your terms of payment ?
A: Normally 30% TT in advance, balance paid before shipment.
Q: How long does it take for samples and mass production?
A: Usually it will take 15-20 days for new molds and free samples (within 5 kg),;after confirmation, 25-30 days for mass production.
Q: OEM/ODM available?
A: Yes,we can!
Q: Could you provide sample?
A: Yes, We are honored to offer you samples for quality check.
Q: Is sample order accepted?
A: Yes,we accept sample order and we can provide design service!
