Product Details:
|
| Item: | Aluminum Parallel Flow Channel Tube | Alloy: | 3003, 3102, 6061 And Etc. |
|---|---|---|---|
| Temper: | O/H111/H112 | Thickness Of Mircochannel Tube: | 1.2mm~10mm |
| Wall Thickness Of Microchannel Tube: | 0.4~3 Mm | Width Of Aluminum Flat Tube: | 12~40mm |
| Tolerances: | ±0.03/±0.05mm | Fixed Length: | Per Your Request |
| Process: | Extrusion, Bending, Cutting, Coating | Surface Treatment: | Mill Finished (Zinc Spray, Soldering Flux Coated) |
| Applications: | Air Conditioner, Oil Cooler, Condenser, Evaporator, Intercooler, Car Radiator, | Keywords: | Aluminum Parallel Flow Flat Tube, Rectangle Aluminum Tube , Multiport Tube, Extrusion Tube For Condenser, Microchannel Tube |
| High Light: | Air Conditioner Aluminum Microchannel Tube,Anti Corrosion Aluminum Microchannel Tube,Car AC Aluminum Microchannel Tube |
||

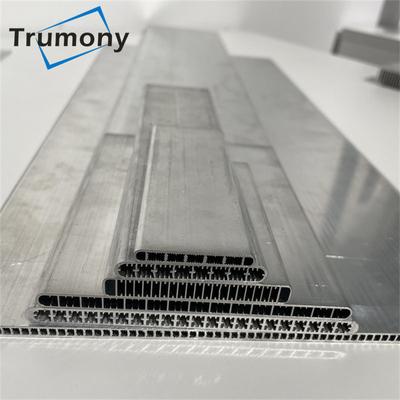

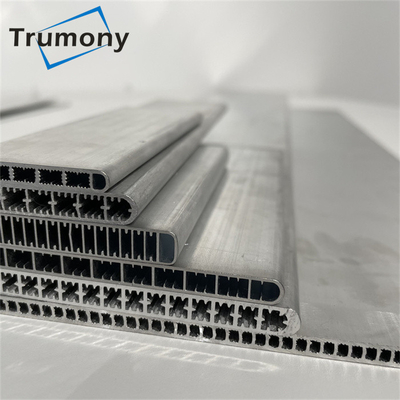

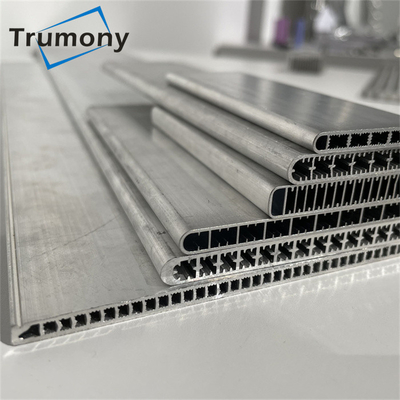

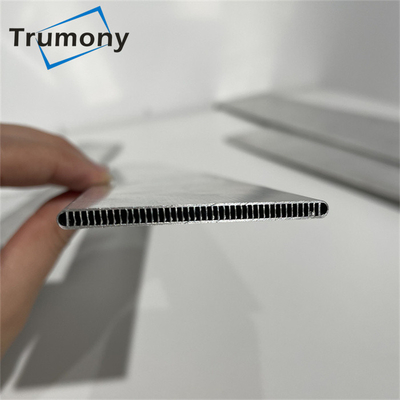

Strong Anti-corrosion Aluminum Microchannel Tube for Car Air Conditioner
Aluminum microchannel flat tube (“also known as aluminum alloy porous multi-port tube) is a thin-walled porous binding tubular material. With high heat transfer rate & strong anti-corrosion, aluminum microchannel tube is widely used in air conditioning systems that use new environmentally friendly refrigerants as pipe parts.
Products' properties:
Lower material costs
Higer heat transfer rate
High anti-corrosion and pressure resistance
High precision
Durable aluminum
High recycling value
Pressure drop and silent solution
Available in various size and alloys, ensuring the best properties for the purpose required
Dimension: Designed to customer specification
Process:
1. Hot extrusion from refined aluminum ingot
2. Zinc spraying
3. Automatic coil formation
4. Coiled material
5. Coil unfolding and adjust
6. Fixed-length tube formation
Specifications:
| Items | Range |
| Width | 8mm~40mm |
| Thickness | 1.2mm~10mm |
| Wall thickness | 0.15mm~0.8mm |
| Thickness of zinc spraying | 6g/mm²~15g/mm² |
| Fixed length | 200mm~4000mm |
| Number of ports | 3~30 |
It can be customized according to customers' request!
Mechanical Properties
| Mechanical property | ||||
| Alloy Code | Temper | Tensile Strength Rm(Mpa) | Yield Strength(Mpa) | Elongation(%) |
| TR-151 Tube material | O | 95-135* | ≥35* | ≥15* |
| H14 | 140-185 | ≥125 | ≥1.5 | |
| H24 | 140-185 | ≥125 | ≥3 | |
| H16 | 185-225 | 160 | ≥1 | |
| H18 | ≥185 | —— | ≥0.5 | |
| TR-166 Tube material | H24 | 185-235 | ≥150 | ≥8 |
| TR-116 tube material | H14 | 140-185 | ≥125 | ≥3 |
| H24 | 140-185 | ≥125 | ≥8 | |
Chemical composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
| 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.05 | ≤0.03 |
| 1100 | ≤0.95(Si+Fe) | 0.05~0.20 | ≤0.05 | -- | -- | ≤0.10 | --- | --- | |
| 3102 | ≤0.40 | ≤0.70 | ≤0.1 | 0.05~0.4 | --- | --- | ≤0.3 | --- | ≤0.10 |
It can be customized according to customers' request!
Our advantage
Trumony started up since 2006, we have rich experience in this industry in China;
We have our own development department for new material research;
Good reputation in household foil areas;
We start our productions from aluminum ingot,so we can control the quality as well;
All parts of ladder is self manufacturing, we have price advantage.
We have good experience and cooperation with big client in the world;
With Certificate ISO9001-2008;
Fast prototype sample making;
High performance cost ratio;
Good communication skills, and good service and understandings for customers
FAQ:
Q: Are you a trading company or manufacturer?
A: Yes,we are a factory with more than 10 years history in this industry.
Q: How long does it take for samples and mass production?
A: Usually it will take 15-20 days for new molds and free samples (within 5 kg),;after confirmation, 25-30 days for mass production.
Q: OEM/ODM available?
A: Yes,we can!
Q: Could you provide sample?
A: Yes, We are honored to offer you samples for quality check.
Q: Is sample order accepted?
A: Yes,we accept sample order and we can provide design service!
