Electric Racing Vehicle Micro Channel Heat Exchanger Cooling System Cooling Ribbon

MOQ: Sample trial can be arranged
Price: Negotiation
Standard Packaging: Export Standard Packing
Delivery Period: 4~6wks with mold tooling time
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 1000000pcs/Every Year
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Trumony
Certification
TS16949, ISO9001, RoHS
Model Number
TR-T22052
Item:
Water Cooling Ribbon
Material:
Aluminum Alloy
Specificationsss:
It Depends On Your Drawings
Fixed Length:
As Your Module
Testing:
Salt Sapry Testing, Under Water Test, Burst Test, Nitrogen & Helium Test And Etc.
Battery Cells:
Cylindrical Cell: 18650, 21700, 32700, 4680, 4695 ...
Services:
Design, Thermal Simulation, Mechanical Simulation, Flow Field Distribution...
Processing Technology:
Stamping, Extrusion, Punching, Bending, Welding, Brazing, Cutting
Key Words:
Snake Cooling Ribbon, Micro Channel Heat Exchanger, Aluminum Tube For Heat Tansfer, Aluminum Heat Exchangers For EV
Applications:
Electric Vehicle Battery (various EV Cars), ESS Battery, IGBT Cooling
Highlight:

Micro Channel Cooling Ribbon

,

Water Cooling Ribbon

,

Electric Racing Vehicle Cooling Ribbon

Product Description

Electric Racing Vehicle Micro Channel Heat Exchanger Cooling System Cooling Ribbon

Provide micro-channel flat tubes match for battery pack space by extrusion and drawing technology.

Design flow channels according to strength and heat transfer requirements.

Single or multiple flat tubes are welded to the header (manifold), and the water inlet and outlet are respectively diverted through the header (manifold).

The inlet is processed by CNC. Suitable for bottom and side heat exchange of prismatic batteries





We specilized in:
1) Stamped type cooling plate for prismatic cells / battery pack.
2) Snake tube for cylindrical cells, such as 21700, 18650, 3270, 4680 big cell.
3) Microchannel tube with manifold for battery pack / rectangular cells.
4) Roll bond cooling plate
5) Machined cold plate

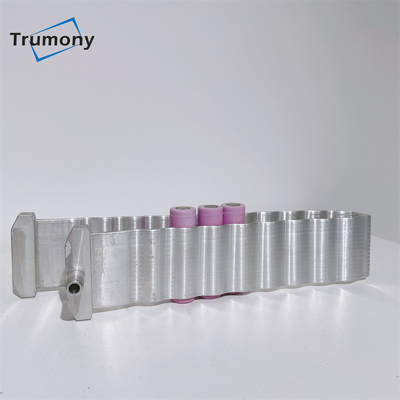

Electric Racing Vehicle Micro Channel Heat Exchanger Cooling System Cooling Ribbon 0



Our Advantages:
1. Experience integrating manifolds, tubing and interface thermal materials

2. Experience in the design and manufacture of large size plates

3. Simulation aids flow channel design for pressure drop, flow and heat distribution

4. High corrosion resistance and low conductivity material for battery cooling applications

5. Flexible design solutions for all kinds of battery pack.





Test Ability:

Chemical Composition Test

YES

Pysical Test & Optics Test

YES

Roughness Test & Hardness Test

YES

Elongation Test

YES

Salt Spray Test

YES

Burst Test

YES

Nitrogen & Helium Test

YES

Flow Resistance Test

YES. Inside &outside corrosion test

Voltage Test

YES

Under Water Test

YES. Check the leakage for welding





Detail Products

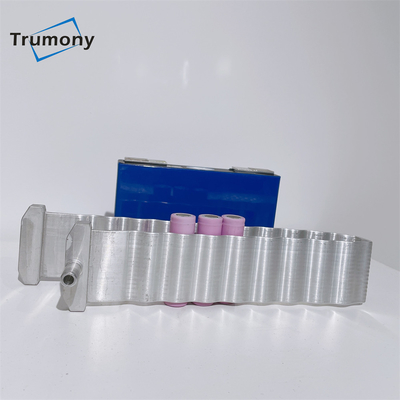

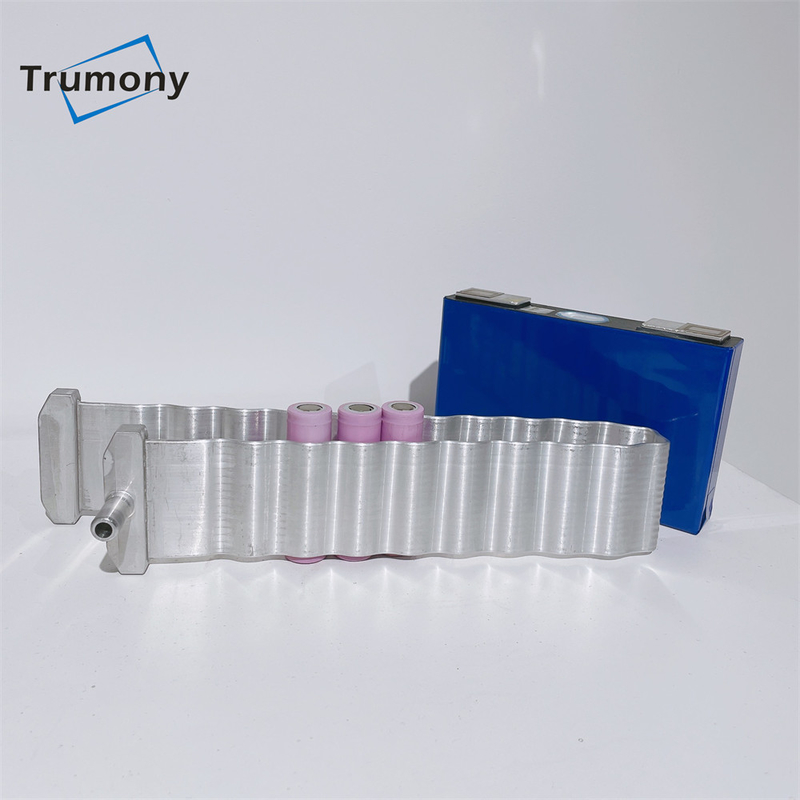

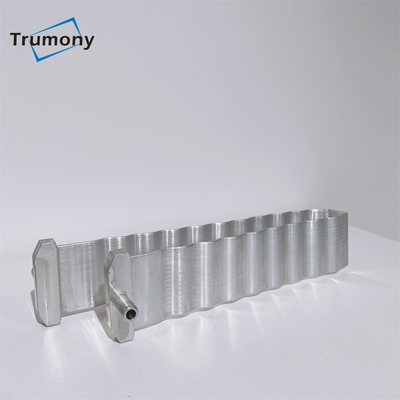

Electric Racing Vehicle Micro Channel Heat Exchanger Cooling System Cooling Ribbon 1Electric Racing Vehicle Micro Channel Heat Exchanger Cooling System Cooling Ribbon 2Electric Racing Vehicle Micro Channel Heat Exchanger Cooling System Cooling Ribbon 3







Chemical composition

Alloy Si Fe Cu Mn Mg Cr Zn V Ti
1050 ≤0.25 ≤0.40 ≤0.05 ≤0.05 ≤0.05 --- ≤0.05 ≤0.05 ≤0.03
1100 ≤0.95(Si+Fe)   0.05~0.20 ≤0.05 -- -- ≤0.10 --- ---
3102 ≤0.40 ≤0.70 ≤0.1 0.05~0.4 --- --- ≤0.3 --- ≤0.10

It can be customized according to customers' request!





Mechanical Properties

Alloy Temper  Tensile Strength  Yeild Strength Elongation
1050 O/F/H111/H112 ≥65MPa ≥200MPa ≥25%
1100 O/F/H111/H112 ≥75MPa ≥200MPa ≥25%
3102 O/F/H111/H112 ≥75MPa ≥200MPa ≥25%
3003 O/F/H111/H112 ≥75MPa ≥200MPa ≥25%







FAQ:

Q: Are you a trading company or manufacturer?
A: Yes,we are a factory with more than 10 years history in this industry.



Q: What method of processing technology?

A: We have brazing line, stamping line, extrusion line, and roll boned process line. Also CNC centre is available.



Q: If we don't have design, can you assist in design?

A: Yes, we can! We have a strong and experienced design team. Flow path design, thermal simulation, mechanical simulation and design optimation are support. Kindly share with us your detail project, service8@trumony.com, we'd love to do DFM for you.



Q: How fast you can make prototype?

A: About 3~5wks. The precise lead time will depends on your design and producing process
