Product Details:
|
| Process: | Welding，Extrusion | Material: | Aluminum |
|---|---|---|---|
| Durability: | High | Name: | Aluminum Cooling Plate |
| Size: | Customized | Surface: | Epoxy Coating（optional） |
| High Light: | 3003 H112 Aluminum Cooling Tube,Customized Extrusion Micro Channel Tube,Battery Cooling Micro Channel Tube |
||

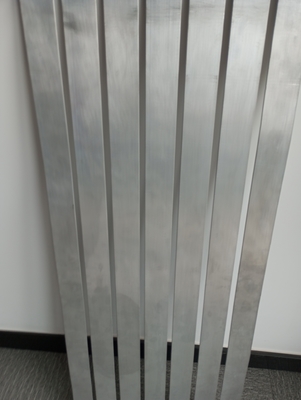

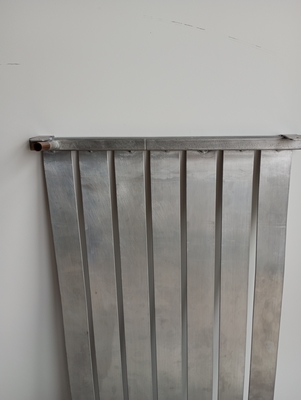

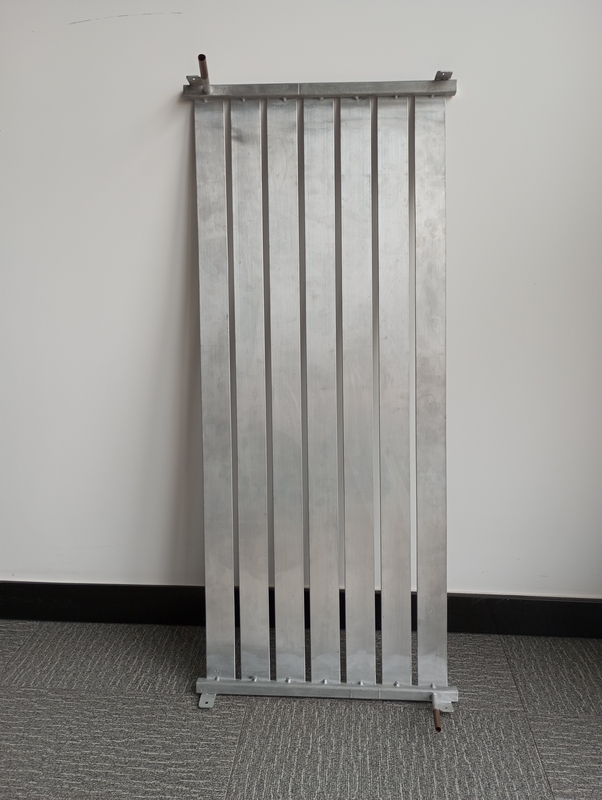

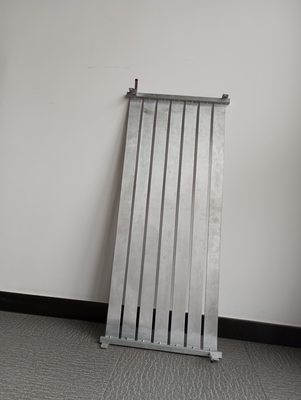

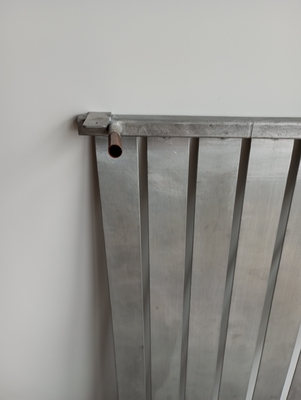

Trumony Customized Extrusion Micro-channel Tube for Battery Cooling Using 3003 H112 , the original aluminum tube is extruded from aluminum. It is mainly composed of a flat flat tube, a mainfold and an inlet and outlet water ports.
Process introduction
Features
1)The effective heat dissipation area is large under the fixed volume.
2) The mold and processing cost are low
3) Cold plate strength is better. It is suitable for heatexchange on the side and bottom of the prismatic battery.
Process
1) Design the flow channel according to the strength and heat-exchange requirements. 2) The micro-channel flat tubes suitable for the battery pack space
are produced by extrusion and drawing technology. 3) Weld single or multiple flat tubes with headers. and then divert the water inlet and outlet throuhg the manifold tubes respectively.(The inlets, outlets and connectors are machined by
CNC.)
Arrange square cells on flat tubes
| Item | Customized Extrusion Micro-channel Tube for Battery Cooling Using 3003 H112 |
| Size | customized |
| Mico-channel size | customized |
| Application | battery cells |
| Service | Design, simulation, tooling ,prototype |
| Process | Aluminum extrusion,welding |
A1: Aluminum Cooling Plate is a product provided by Trumony, whose model number is tr-t002. It is certificated by iso9001 and iatf16949, and manufactured in China.
A2: The minimum order quantity of Aluminum Cooling Plate is 10.
A3: The Aluminum Cooling Plate is packed with standard export package.
A4: It will take 30 days to deliver the Aluminum Cooling Plate.
A5: The payment terms for Aluminum Cooling Plate is TT.
