Product Details:
|
| Product Name: | Serpentine Aluminum Ribbon | Length: | Customized |
|---|---|---|---|
| Specification: | According To Customers' Requirement | Shape: | Serpentine/Snake Shape |
| Surface: | Coating/Insulation/Film | Process: | Bending/Coating/Welding/Extrusion |
| Alloy: | 3003,3102,1100,1050 | Packing: | Robust Package For Express Or Shipment |
| Application: | Electrical Vehicle 21700 Battery Pack | Fitting: | As Customers' Requirement |
| High Light: | Aluminum Customized Cooling Ribbon,21700 Lithium Battery Pack Cooling Ribbon |
||

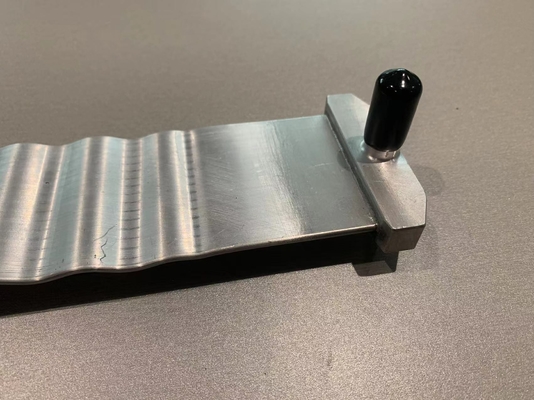

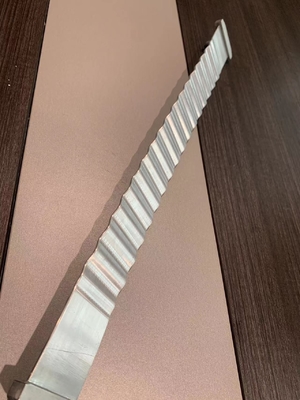

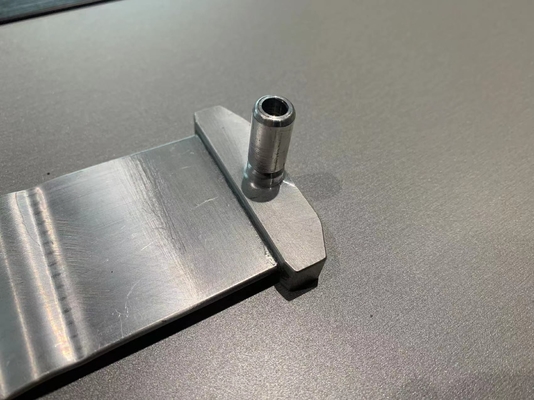

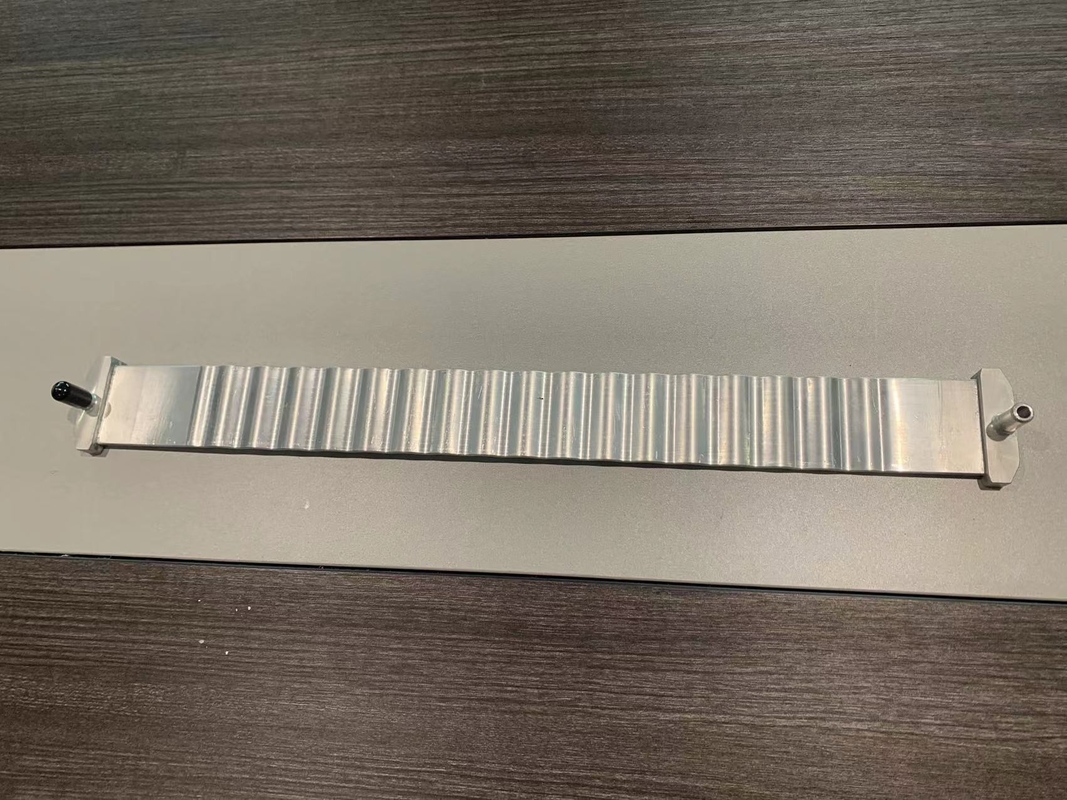

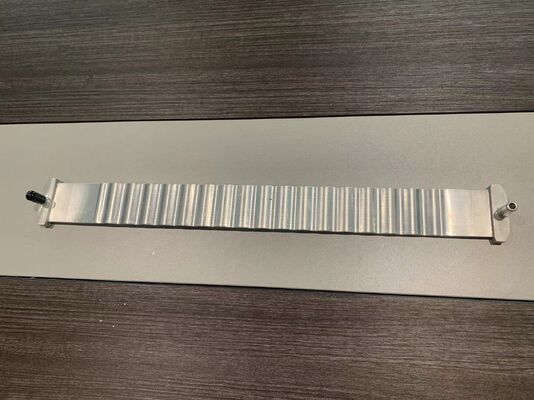

Aluminum Customized Cooling Ribbon Used For 21700 Lithium Battery Pack
1. Product Introduction:
We are not just a manufacturer, but also a design and development company specializing in superior heat exchanger solutions. The serpentine aluminum ribbon, also known as the serpentine ribbon or water-cooled ribbon, is our area of expertise. extensive experience includes thermal cooling projects, battery cooling for electric vehicles (also referred to as new energy vehicles), solar energy cooling, 5G parts cooling, drone cooling, and various industrial cooling applications.
The serpentine ribbon is made from our extrusion channel ribbon, with multiple molds available for various runner ports. Our water-cooling ribbon is crafted from aluminum and can be designed to fit different channel types and sizes, including mounting holes. Additionally, we have our own CNC center to create import/export connectors or partition accessories based on customer requirements.
2. Feature:
This cooling ribbon could be used for all kinds of battery pack with 21700 cells,its length could be customized for your cell quantity and it's especially suitable for your prototype stage,it need no tooling cost and could be delivered to your side in only two weeks.
3. Commonly used material chemical composition:
| No. | Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
| 1 | 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.05 | ≤0.03 |
| 2 | 1100 | ≤0.95(Si+Fe) | 0.05-0.20 | ≤0.05 | --- | --- | ≤0.10 | --- | --- | |
| 3 | 3102 | ≤0.40 | ≤0.70 | ≤0.10 | 0.05-0.40 | --- | --- | ≤0.30 | --- | ≤0.10 |
| 4 | 3003 | ≤0.15 | ≤0.15 | ≤0.01 | 0.90-1.10 | ≤0.03 | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 |
Both 3003 and 3102 are the alloys with very good anti-corrosion property,so they are widely used for heat exchange.
4. Supply state and mechanical properties:
| Alloy | Temper | Tensile Strength | Yield Strength | Elongation |
| 1050 | O/F/H111/H112 | ≥65MPa | ≥20MPa | ≥25% |
| 1100 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3102 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3003 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
5. Products for your reference:
Include: Cylindrical Battery Thermal Management,
Square Battery Thermal Management,
Electric Thermal Management,
All Aluminum Liquid Cooling Tray,
Soft Packing Battery Thermal Management and Motor Thermal Management.
6. FAQ:
Q: Are you a trading company or manufacturer?
A: We're actually a manufacturer with over 10 years of experience in this industry.
Q: What are your payment terms?
A: Normally, we require 30% TT in advance and the balance to be paid before shipment.
Q: How long does it take for samples and mass production?
A: Usually, it will take around 15-20 days for new molds and free samples (within 5 kg). After confirmation, mass production can be completed within 25-30 days.
Q: Do you offer OEM/ODM services?
A: Absolutely! We can definitely provide those services.
Q: Can I get a sample from you?
A: Of course! It would be our pleasure to offer you samples for quality check.
Q: Is it possible to place a sample order?
A: Yes, we do accept sample orders and even provide design services!
