Product Details:
|
| Product Name: | Cylindrical Cells Battery Cooling Pack Snake Tube Plates For Electric Racing Vehicle | Type: | Cooling Ribbon |
|---|---|---|---|
| Process: | Aluminum Extrusion, Stamping, Waving, Cutting, Bending And Etc. | Alloy: | 3003-O |
| Temper: | O-H112 | Applications: | EV Battery Pack，ESS Battery Pack |

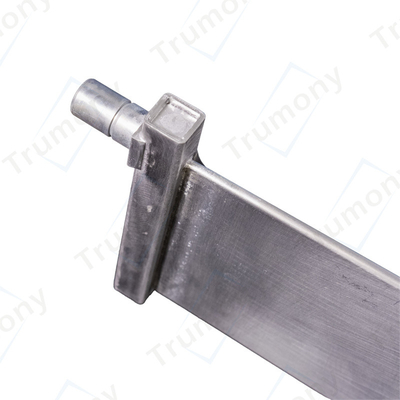

| Structure: | Micro Channel Tube+connector | Package: | Cartons+pallets |
| Keyword: | Liquid Cooling Ribbon For Cylindrical Cell, Serpentine Cooling Tube | ||
| High Light: | Customized Design Cooling Ribbon,Aluminum Cooling Ribbon,Electric Vehicle Battery Pack Cooling Ribbon |
||
Customized Design Aluminum Cooling Ribbon for Electric Vehicle Battery Pack

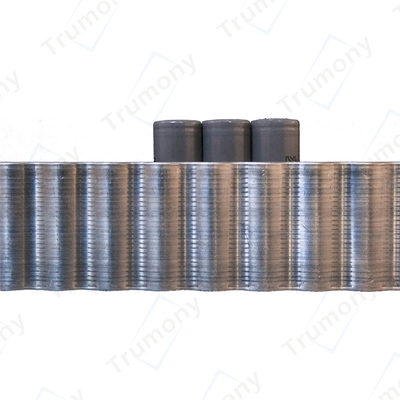

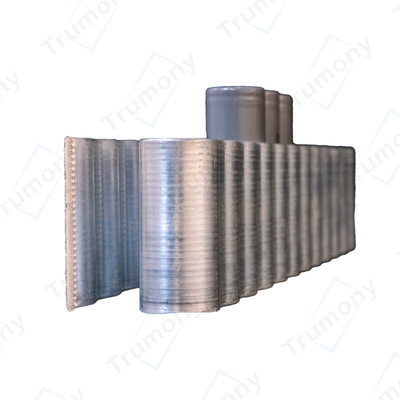

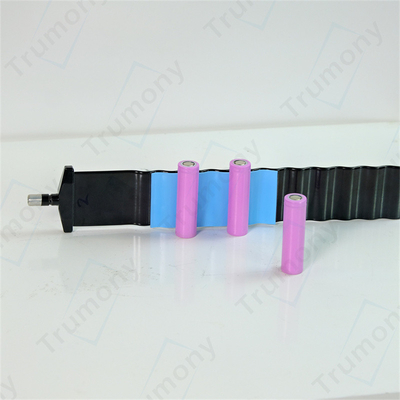

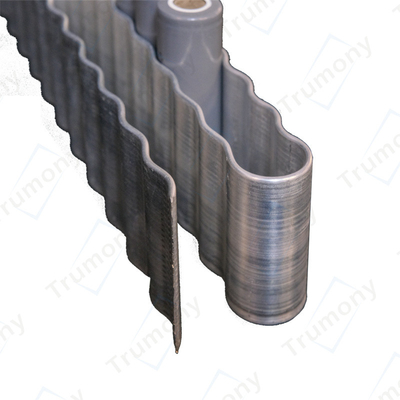

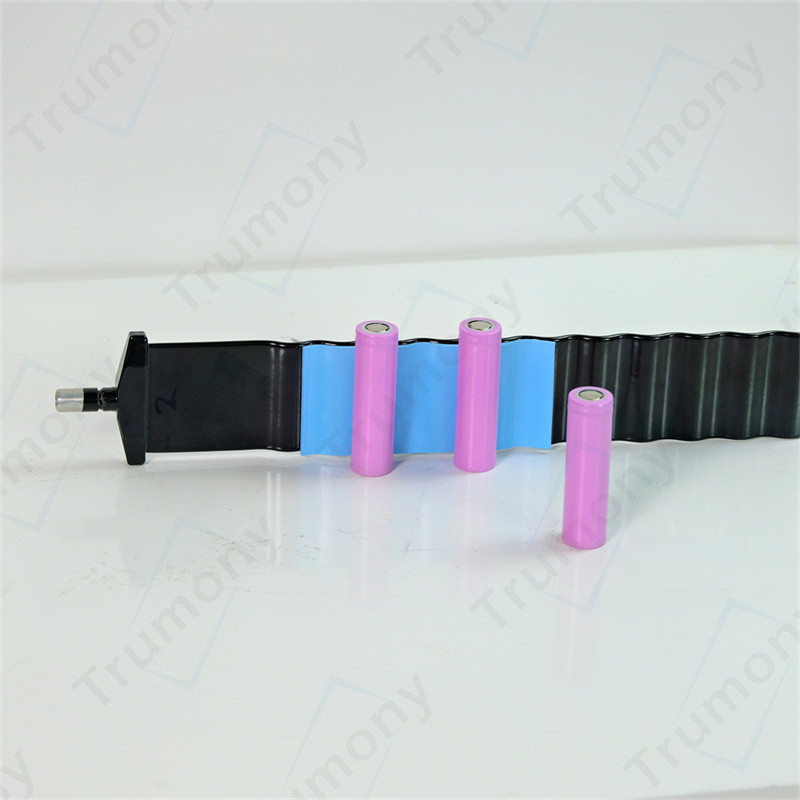

An aluminum serpentine tube for cylindrical cells is a component used in the construction of cylindrical batteries, particularly lithium-ion batteries. This serpentine tube serves as a conduit for the flow of coolant or thermal management fluid within the battery cell.
In lithium-ion batteries, managing heat is crucial for maintaining performance, safety, and longevity. Excessive heat can degrade the battery's components and even lead to thermal runaway, a potentially dangerous situation where the battery overheats and may catch fire or explode. The serpentine tube helps dissipate heat generated during the charging and discharging processes, thus enhancing the overall thermal management of the battery system.
Trumony as a battery thermal management solution provider, not only supply the aluminum cooling ribbon for EV&ESS, but also the design&simulation service.
| Item | Aluminum cooling tube for cylindrical cells |
| Size | According to your battery module. |
| Thickness | 2.1~3mm |
| Application | cylindrical battery pack cooling |
| Service | Design, simulation, tooling, prototype, mass production |
| Process | Aluminum extrusion, stamping, cutting, waving, bending and etc. |
| Liquid cooling type |
cold plate cooling plate for EV hydraulic cold plate for ESS extruded cooling plate EV battery snake cooling tube |
Battery cooling system
1: Liquid cooling solution for electric vehicle battery pack
2: Liquid cooling solution for new energy storage system
3: Liquid cooling solution for high flux density products
4: New liquid cooling solutions
5: Design, thermal simulation & prototyping&mass production.
Key point of design
1- Specify the battery type: cylindrical cells / square cells or prismatic cells/ soft battery or pouch cells
2- Module boundary dimensions
3- Heat dissipation requirement
4- Design and prototype budget
5- All heat exchanger choice such as the connectors,plastic quick connectors,battery cooling plate installation
With very rich experience in making cooling plates for battery packs. Below are the strength from us that you can rely on:
1. Aid in cooling components design feasibility
2. Proven solutions for both prismatic and cylindrical cells
3. Capability in doing DVP with client
4. Fast support in Prototype making
FAQ :
1. What battery module cooling solution you can provide ?
A: We have 4 kinds of battery cooling type for your battery pack. Aluminum snake tube for cylindrical shaped of cells. Aluminum brazed cooled plate for prismatic cells ,aluminum micro channel plates for pouches and aluminum roll bonded panels .
2. What the alloy and temper of your water cooling plate ?
A: The aluminum alloy is 3000,6000 and temper is O-H112.
3. What the process technology to do the cold plate or coolant channles ?
A: Aluminum extrusion process , vacuum brazing process, roll bonded process and we also have CNC center.
4. Do you support customized prototype for battery pack module ?
A: Sure, we can produce the aluminum liquid cooling plate as your design. If just at the development stage, our existing cooled plate heat sinks are available for checking.
