4695 High Heat Dissipation Aluminum Cooling Pipe for Big Battery Cells

MOQ:	Sample trial can be arranged
Price:	Negotiation
Standard Packaging:	Export Standard Packing
Delivery Period:	4~6wks with mold tooling time
Payment Method:	L/C, D/A, D/P, T/T
Supply Capacity:	1000000pcs/Every Year

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Trumony

Certification

TS16949, ISO, RoHS

Model Number

TR-T2404004

Product Name:

Water Cooling Tube For EV

Material:

Aluminum Alloy

Alloy No.:

3003, 6061

Surface Treatment:

Insulation Coated , Powder Spray, Epoxy Coating.

Application:

Electric Vehicle, Energy Storage System BMS (battery Thermal Management)

Design Service:

Provide

Thermal Simulation:

Package:

Exported Standard Package

Battery Type:

Cylindrical Cell, Prismatic Cells, Pouches

Key Words:

Water Cooled Plate, Snake Tube For 21700

Highlight:

4680 aluminum cooling plate

Big Battery Cells Aluminum Cooling Plate

Big Battery Cells aluminum cold plate

Product Description

21700/18650/3270/4680 Aluminum Cooling Plate for Big Battery Cells

A cooling plate for big battery cells, such as the 21700, 18650, 3270, and 4680 formats, is a specialized component designed to dissipate heat generated during the operation of these cells. The cooling pipe refer to the dimensions and specifications of cylindrical lithium-ion battery cells commonly used in various applications, including electric vehicles (EVs), energy storage systems, and consumer electronics.

Product name	Snake tube for EV
Tube size	According to your boundary size 553mm for 21700 / 653.5mm for 4680
Type of cells	18650, 21700, 32700, 4680 battery cells
Structures	Extrusion aluminum tube + Inlet & outlet+quick connector
Length	According to your design
Surface treatment	Insulation coated / Powder spary / Bare
Related products	Quick connector, thermal interface material (silicon pad), pump, etc.
Services	Cooling tube design, thermal simulation, flow path design, finalize production feasibility

Our Advantages:
1) Tooling development - we do it in house, so we can make initial prompt and accurate.
2) Design service, we have R&D department, can do design finalization, flow and heat simulation.
3) One station service - Thermal Interface Material, such as thermal silicone pad, Insulation coating etc.

Detail Products

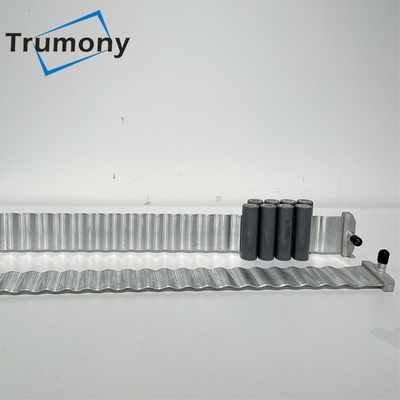

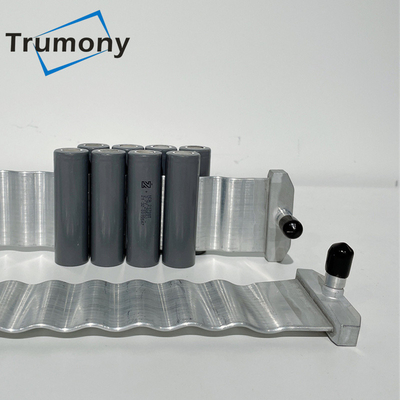

4695 High Heat Dissipation Aluminum Cooling Pipe for Big Battery Cells 0

Chemical composition

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	V	Ti
1050	≤0.25	≤0.40	≤0.05	≤0.05	≤0.05	---	≤0.05	≤0.05	≤0.03
1100	≤0.95(Si+Fe)		0.05~0.20	≤0.05	--	--	≤0.10	---	---
3102	≤0.40	≤0.70	≤0.1	0.05~0.4	---	---	≤0.3	---	≤0.10

It can be customized according to customers' request!

Mechanical Properties

Alloy	Temper	Tensile Strength	Yeild Strength	Elongation
1050	O/F/H111/H112	≥65MPa	≥200MPa	≥25%
1100	O/F/H111/H112	≥75MPa	≥200MPa	≥25%
3102	O/F/H111/H112	≥75MPa	≥200MPa	≥25%
3003	O/F/H111/H112	≥75MPa	≥200MPa	≥25%

Q: What is your terms of payment ?

A: Normally 30% TT in advance, balance paid before shipment.

Q: How long does it take for samples and mass production?

A: Usually it will take 15-20 days for new moulds and free samples (within 5kg), after confirmation, 25-30 days for mass production.

Q: OEM/ODM available?

A: Yes,we can!

Q: Can you assist in design?

A: Yes, we can! We have a strong and experienced design team.

Q: Could you provide sample?

A: Yes, We are honored to offer you samples for quality check.

Q: Is sample order accepted?

A: Yes,we accept sample order and we can provide design service!
