Product Details:
|
| Product Name: | Micro-channel Cold Plate | Length: | Customized |
|---|---|---|---|
| Specification: | According To Customers' Requirement | Shape: | Micro-channel |
| Surface: | Coating/Insulation/Film | Process: | Extruded |
| Alloy: | 3003 | Packing: | Wooden Case |
| Application: | EV/ESS | Fitting: | As Customers' Requirement |
| High Light: | Micro Channel Cooling Plate,Heavy Duty Truck Battery Cooling Plate,Aluminum Extruded Micro Channel Cooling Plate |
||

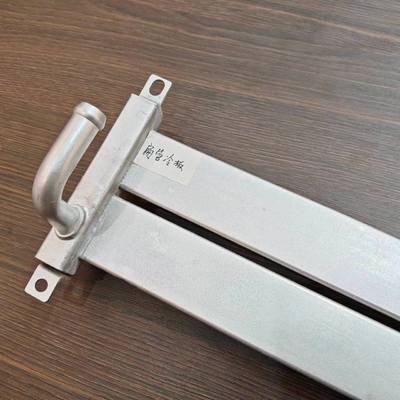

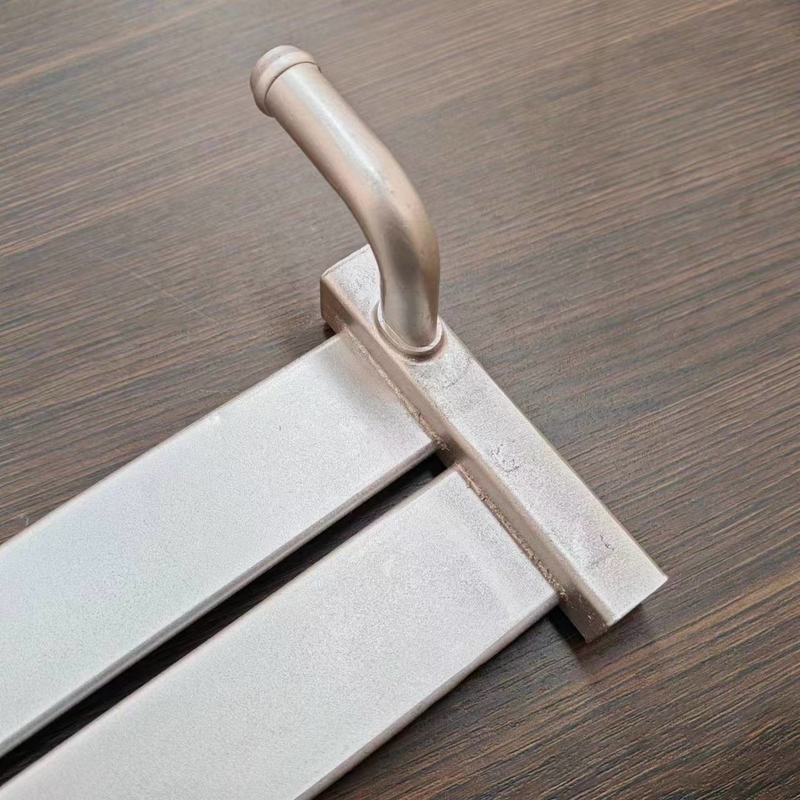

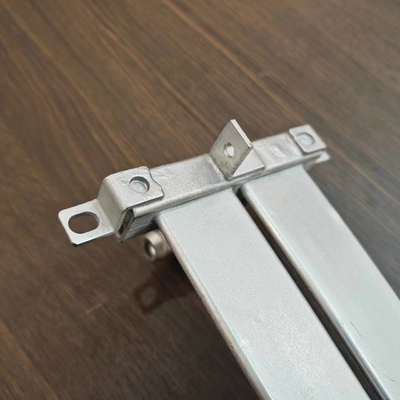

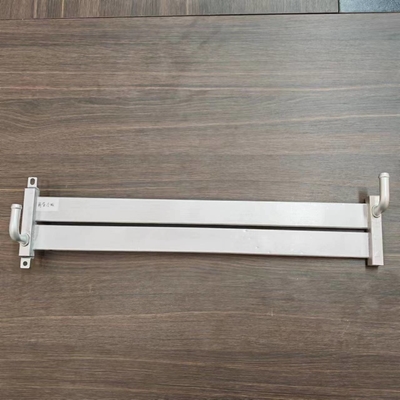

Heavy Duty Truck Prismatic Battery Module Cooling Aluminum Extruded Micro Channel Cooling Plate
1. Product Introduction:
We are a reputable manufacturer specializing in heat exchangers specifically designed for battery packs. Our company is dedicated to the design, manufacturing, and distribution of high-quality heat exchangers suitable for cylindrical cells, prismatic cells, or pouches. We offer comprehensive cooling solutions tailored specifically for battery cells, such as snake tubes designed for cylindrical cells (18650, 21700), water cooling plates optimized for prismatic cells, and plate channels engineered for pouches.
2. Commonly used material chemical composition:
| No. | Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
| 1 | 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.05 | ≤0.03 |
| 2 | 1100 | ≤0.95(Si+Fe) | 0.05-0.20 | ≤0.05 | --- | --- | ≤0.10 | --- | --- | |
| 3 | 3102 | ≤0.40 | ≤0.70 | ≤0.10 | 0.05-0.40 | --- | --- | ≤0.30 | --- | ≤0.10 |
| 4 | 3003 | ≤0.15 | ≤0.15 | ≤0.01 | 0.90-1.10 | ≤0.03 | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 |
Both 3003 and 3102 are the alloys with very good anti-corrosion property,so they are widely used for heat exchange.
3. Supply state and mechanical properties:
| Alloy | Temper | Tensile Strength | Yield Strength | Elongation |
| 1050 | O/F/H111/H112 | ≥65MPa | ≥20MPa | ≥25% |
| 1100 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3102 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3003 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
4. Application:
The heat exchanger or collector can be used in various applications, such as new energy vehicles (cylindrical battery, prismatic battery, soft packing battery), solar panels, solar energy collectors, photovoltaic power generation collectors, superconducting plates, soaking plates and temperature uniforming plates.
5. Products for your reference:
Include: Cylindrical Battery Thermal Management,
Square Battery Thermal Management,
Electric Thermal Management,
All Aluminum Liquid Cooling Tray,
Soft Packing Battery Thermal Management and Motor Thermal Management.
6. FAQ:
Q: Are you a trading company or manufacturer?
A: We're actually a manufacturer with over 10 years of experience in this industry.
Q: What are your payment terms?
A: Normally, we require 30% TT in advance and the balance to be paid before shipment.
Q: How long does it take for samples and mass production?
A: Usually, it will take around 15-20 days for new molds and free samples (within 5 kg). After confirmation, mass production can be completed within 25-30 days.
Q: Do you offer OEM/ODM services?
A: Absolutely! We can definitely provide those services.
Q: Can I get a sample from you?
A: Of course! It would be our pleasure to offer you samples for quality check.
Q: Is it possible to place a sample order?
A: Yes, we do accept sample orders and even provide design services!
