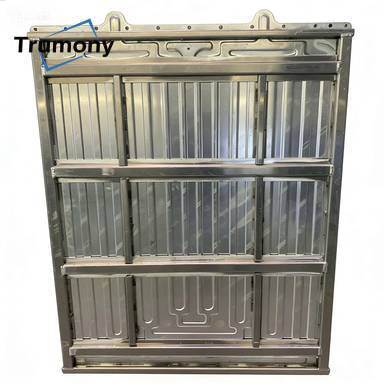

ESS 1P48S 314 Cell Aluminum Liquid Cooling Plate With Integrated Steel Frame
| Material: | 3003aluminum，Q235steel | Surface treatment: | Powder Coating，Anodizing |
| cells: | 280/314ah | Module: | 1P52/1P48S Battery Pack |
| Pressure drop: | 15kpa | Charging and discharging rate: | 0.5C |
| High Light: | ESS 1P48S aluminum cooling plate,314 cell battery tray,steel frame liquid cooling plate |
||
Product Overview
Technical Specifications:
| Performance | parameter | unit |
|---|---|---|
| Alloy | 3003mod | / |
| Regular size | flow plate 1.2 mm;flat plate 1.5 mm;flow height 3mm | mm |
| Temperature difference | 3~5 | ℃ |
| Flow resistance | 15 | Kpa |
| Charge and discharge rate | 0.5 | c |
| Application | Energy storage battery pack |
Applications
Industrial and commercial energy storage systems
Grid-scale energy storage power stations
Wind and solar energy storage systems
Microgrid energy storage projects
Large-scale stationary battery energy storage systems
Backup power and UPS energy storage solutions
New energy power generation supporting energy storage
Why Choose Us
1. Large production capacity - ensures stable supply
2. Complete process - fully controllable throughout, fast delivery
3. High professionalism - rich experience, high project success rate
4. Excellent single-process performance - cost-effective, high quality
5. Can be optimized with standard models - low development cost, fast delivery
FAQ
Q1:Is this enclosure suitable for 1P52S Module energy storage systems only?
A1:Yes, this is custom-made for the 1P52 module. Of course, the hole positions, crossbeams, brackets, and dimensions can all be adjusted.
Q2:What else can we offer?
A2:The box body and related products such as top cover ,end plate and pipelines are available.
Q3:MOQ
A3In fact, there is no (MOQ). Customized samples can also be provided.
Q4:What technical capabilities do we have?
A4:Full-process customized design,Cross-component design collaboration,Desin optimization & simulation
Q5:General delivery time
A5:The sample stage: 40 -45 days.Mass production stage: 35 days
