China Factory Customizable Aluminum Liquid Cold Plate For EV Battery Pack
  • Name
  • Name
  • Name

China Factory Customizable Aluminum Liquid Cold Plate For EV Battery Pack

MOQ: 500
Price: 99
Standard Packaging: wooden box
Delivery Period: 5-6weks
Payment Method: T/T
Supply Capacity: 3000pcs/day
Detail Information
Product Description
Detail Information
Place of Origin
Suqian city
Brand Name
Trumony
Certification
ISO9001
Model Number
1P52s
Material:
3003 Aluminum
Surface Treatment:
Powder Coating，Anodizing
Cells:
280ah Cells
Module:
1P52/1P48S Battery Pack
Pressure Drop:
15kpa
Charging And Discharging Rate:
0.5C
Highlight:

customizable aluminum liquid cold plate

,

EV battery pack cooling plate

,

liquid cold plate for battery

Product Description

Product Overview

Tailored for high-performance electric vehicle (EV) battery packs, our stamped and brazed liquid cold plates are engineered to deliver reliable, high-efficiency thermal management—ensuring optimal operating temperatures, uniform cooling, and long-term safety for lithium-ion batteries.

Technical Specifications:

Category Details
Material Selection Base plate: AL3003MOD (commonly used)
Flow channel plate: AL3003MOD (commonly used)
Insulation layer: Powder coating or film lamination (commonly used)
Key Processes 1. Stamping forming
2. Degreasing and spraying
3. Brazing
4. Helium leak test
5. Powder coating or film lamination
Structural Design 1. Flow channel plate: 1mm (typical); Base plate: 1mm or 1.2mm (typical); Insulation layer thickness: 0.1~0.3mm
2. Total cold plate height: 5.5~6.5mm; Flow channel height: 3~4mm (typical)
3. Seal width: ≥7mm
Performance 1. High structural strength and pressure resistance
2. Excellent heat dissipation efficiency and temperature uniformity
3. Superior corrosion resistance
4. High space utilization rate
Cost Typically RMB 27~35/kg, with relatively high tooling cost
Weight Significant lightweight advantage: 1+1mm cold plate weighs approx. 5.5kg/m² (calculated by area)
Lead Time High design flexibility and short prototyping cycle
Maturity Most widely adopted process, with >90% market share

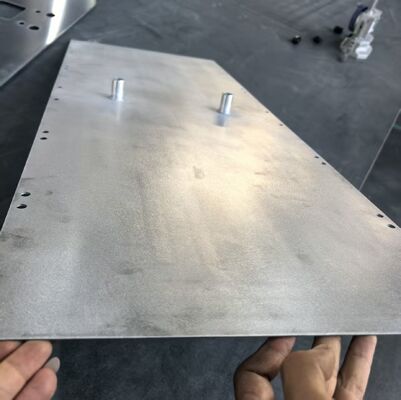

China Factory Customizable Aluminum Liquid Cold Plate For EV Battery Pack 0

Key Functions

  • Efficient heat dissipation at high-rate charging and heavy discharge
  • Preheating batteries in low-temperature environments
  • Improve temperature uniformity and reduce hotspots
  • Enhance battery safety and extend service life
  • Stabilize performance in continuous high-power operation

Why Choose Us

Professional liquid-cooled design for excellent thermal management and long battery life

High-strength aluminum alloy structure with high rigidity, light weight and strong durability

Customized for 1P52S energy storage battery packs, ensuring perfect fit and stable performance

Strict quality control and reliable production process

Competitive pricing and on-time delivery

Professional technical support and after-sales service

China Factory Customizable Aluminum Liquid Cold Plate For EV Battery Pack 1

FAQ

Q1:Is this enclosure suitable for 1P52S Module energy storage systems only?

A1:Yes, this is custom-made for the 1P52 module. Of course, the hole positions, crossbeams, brackets, and dimensions can all be adjusted.

Q2:What else can we offer?

A2:The box body and related products such as top cover ,end plate and pipelines are available.

Q3:MOQ

A3In fact, there is no  (MOQ). Customized samples can also be provided.

Q4:What technical capabilities do we have?

A4:Full-process customized design,Cross-component design collaboration,Desin optimization & simulation

Q5:General delivery time

A5:The sample stage: 40 -45 days.Mass production stage: 35 days
