China Factory High Efficiency Stamping Brazing Liquid Cooling Plate 3003 Al

MOQ: 100pcs
Price: Negotiable
Standard Packaging: Ply-Wood Box Specialized for Export
Delivery Period: 35 days
Payment Method: T/T,L/C
Supply Capacity: 3000pcs/day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Trumony
Certification
ISO9001,IATF16949
Model Number
Trumony-05203
Process:
Brazing,CNC,
Shape:
Customize
Warranty:
1 Year
Surface Treatment:
Anodizing, Powder Coating
Highlight:

3003 aluminum liquid cooling plate

,

high efficiency stamping cold plate

,

brazing liquid cooling plate

Product Description

Products introduction:

Our liquid cooling plate is precision manufactured with 3003 aluminum alloy and advanced stamping brazing technology, designed to provide efficient heat dissipation for a wide range of high-power electronic devices and industrial equipment. As a core heat dissipation component, it features a sealed internal channel network that allows cooling liquid to flow smoothly, quickly absorbing and transferring heat to maintain the optimal operating temperature of your equipment, thereby extending its service life and improving operational stability.

Made of high-quality 3003 aluminum, the liquid cooling plate boasts excellent thermal conductivity, light weight, and strong corrosion resistance, making it suitable for long-term use in harsh industrial environments. The stamping brazing process ensures tight sealing of the internal channels, effectively preventing coolant leakage while reducing production costs for mass production, making it a cost-effective and reliable heat dissipation solution for various applications.

Product Parameter

Specification Item
Details
Material
3003 Aluminum Alloy (excellent thermal conductivity and corrosion resistance)
Production Process
Stamping Brazing: High-speed stamping to form channel geometry, followed by vacuum brazing for sealed connection, with strict leakage testing after processing
Thermal Conductivity
150-160 W/(m·K), ensuring efficient heat transfer
Operating Temperature Range
-40℃ to 120℃, adaptable to various working environments
Sealing Performance
Vacuum brazing sealing, helium leak testing passed, no coolant leakage
Application
Data center servers, GPU, power electronic equipment, new energy vehicle batteries, industrial inverters, lasers, LEDs
Customization
Support custom size, channel design and surface treatment according to customer needs

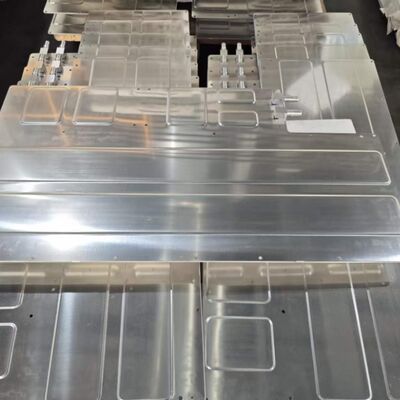

China Factory High Efficiency Stamping Brazing Liquid Cooling Plate 3003 Al 0China Factory High Efficiency Stamping Brazing Liquid Cooling Plate 3003 Al 1



Stamping Brazing Process Advantages

The stamping brazing process adopted for our liquid cooling plate combines the advantages of high efficiency and low cost, making it ideal for mass production. The process steps include mold design and manufacturing, high-speed stamping of 3003 aluminum sheets to form internal channels, degreasing and cleaning of stamped parts, brazing paste application, precise assembly, vacuum brazing, and post-processing testing. This process ensures that the plate has a thin and compact structure, low unit cost after mold amortization, and stable performance, effectively solving the problem of high heat flux in high-power equipment.

3003 Aluminum Material Advantages

3003 aluminum alloy is the optimal material for liquid cooling plates due to its outstanding comprehensive performance. It has good formability, making it easy to stamp into complex channel structures; its excellent thermal conductivity ensures rapid heat transfer between the equipment and the cooling liquid; and it has strong corrosion resistance, which can resist the erosion of cooling liquid and extend the service life of the product. Compared with other materials, 3003 aluminum is lighter, reducing the overall weight of the equipment, and has high cost performance, making it widely used in various industrial heat dissipation scenarios.
Core Product Features

Optimized internal flow channel layout improves heat exchange efficiency and achieves even temperature distribution across the contact surface

Adopting precision welding and strict helium leak detection the liquid cold plate maintains excellent tightness without liquid leakage under long term circulating working conditions

Moderate structural thickness realizes lightweight installation helping customers save internal space of battery packs and energy storage systems

All dimensional parameters flow channel styles and interface positions can be fully customized according to customer drawings and project requirements

Qualified raw material selection and standardized production process ensure long service life and strong environmental adaptability in high low temperature and vibration scenarios

Main Application

Our high-performance liquid cold plate and liquid cooling plate are professional thermal management solutions, specially designed for four core application scenarios:

  1. EV (Electric Vehicle) battery cooling
  2. BESS (Battery Energy Storage System) thermal management,
  3. high heat flux density equipment cooling,
  4. new liquid cooling system upgrades.

Key Advantages:

High efficiency heat transfer adopts high grade aluminum alloy material and advanced forming technology to accelerate heat conduction and realize uniform temperature distribution of heat sources

Lightweight and durable thin wall design reduces product weight while ensuring structural strength effectively reducing the overall load of equipment

Strong sealing performance undergoes strict pressure testing and leak detection to avoid liquid leakage and ensure safe and stable operation in long term use

Full customization support according to customer needs to adjust the size flow channel layout interface type and surface treatment to perfectly match different application scenarios

Stable mass production mature automated production lines and strict quality control system ensure consistent product quality and on time delivery
 solutions

If you need custom liquid cold plate solutions or want to get free samples and quotes please contact Trumony directly (sales4@trumony.com),We will provide you with professional and personalized services to meet your thermal management needs

FAQ:

Q: Are you a trading company or manufacturer?

A:Yes,we are a factory with more than 10 years history in this industry.

Q: What is your terms of payment ?

A: Normally 30% TT in advance, balance paid before shipment.

Q: How long does it take for samples and mass production?

A: Usually it will take 15-20 days for new moulds and free samples (within 5 kg); after confirmation, 25-30 days for mass production.

Q:OEM/ODM available?

A:Yes,we can!

Q:Could you provide sample?

A:Yes, We are honored to offer you samples for quality check.

Q:Is sample order accepted?

A:Yes,we accept sample order and we can provide design service!
