Product Details:
|
| Alloy: | 1235 , 8079 , 8011 And Etc. | Temper: | HO And Etc. |
|---|---|---|---|
| Thickness: | 0.006 - 0.040mm | Width: | 150 - 1850mm |
| I. D.: | 76mm , 152mm | Normal O. D.: | 400 - 600mmm |
| Pin Hole: | According To GB/T3198-2010 | Other Requirements: | Other Sizes And Specifications Are Available According To Customer's Request |
| High Light: | aluminum foil roll,heavy duty aluminum foil |
||

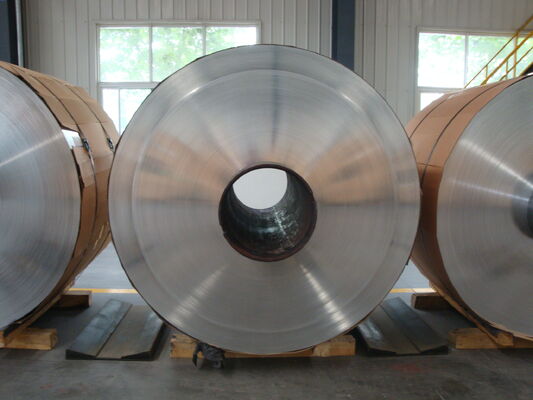

0.009mm x 1440mm 1235 / 8011 O Aluminum Light Gauge Foil for Food Packaging
1. Our chemical composition:
|
Alloy |
Si | Fe | Cu | Mn | Mg | Zn | Cr | Ti | code |
| 8011 | 0.5-0.9 | 0.6-1.0 | 0.1 | 0.2 | 0.05 | 0.1 | 0.05 | 0.08 | 1 |
| 1235 | Si+Fe:0.65 | 0.05 | 0.05 | 0.05 | － | － | 0.06 | 2 | |
| 8079 | 0.05-0.3 | 0.7-1.3 | 0.05 | － | － | 0.1 | － | 3 | |
2. Our mechanical property:
| Foil Classification | Thickness(mm) | Alloy |
Thickness Tolerrance | Width Tolerance |
| Thin Gauge 0.005-0.009 |
0.005 |
1235 8011 8079 |
±5% | (200-1880)±1 |
| 0.006 | ||||
| 0.0065 | ||||
| 0.007 | ||||
| 0.008 | ||||
| 0.009 | ||||
Mechanical Performance |
Strengthen(Mpa) | 50-160 (according to customer's requirements and technical agreement) |
||
| Elongation(%) | 0.5%-8% (according to customer's requirements and technical agreement) |
|||
| Typical core I.D. | Φ76.2 Φ152 | |||
| Typical Coil O.D. | Φ300 Φ500 Φ1000 (selectable) | |||
| Trace Elements | pb≤0.01 cd≤0.01 As≤0.01 | |||
| Wettability | ≥Class B | |||
| Pin no. (P/m²) | according to custiomer's requirements and technical agreement | |||
| Light (L) | according to custiomer's requirements and technical agreement | |||
| Coil Connector | according to custiomer's requirements and technical agreement | |||
| Surface Quality | 1 even serface flatness 2 clean surface without corrosion,spots,wrinkles,scratches,light and dark lines,marks slots etc. 3 no light spots,marke,wheel mark and black line. 4 no yellow spots from the lubricatio oil burning and breaks on the surface of the final production. | |||
| Quality Outside | No defects such as burring, cracks, telescoping, loosen coils, core out, arrow etc.. Welding firmly, foil section neat and clean. | |||
3. Features
(1) Suitable for refreshment ; biscuit ; candy ; milk powder ; instant drink and pet food bag , etc;
(2) Environmentally-friendly heat insulation material;
(3) Easy for printing , lacquering and laminating;
(4) Perfect oxygen and steam barrier;
(5) Moisture proof; protect from light ; gas barrier, non-breakage; non leakage;
(6) Heat Insulation Facing with high tensile strength and bursting strength;
(7) Our plain foils can be manufactured according to customer's requirements;
(8) Good stretching resistance in length and breadth.
4. Our advantages
(1) We have rich experience in this industry in China from 2004;
(2) Good reputation in packaging foil areas;
(3) We start our productions from aluminum ingot , so we can control the whole processing as well;
(4) We have our own R&D for new material research;
(5) Excellent experience and cooperation with big client in the world;
(6) With Certificate ISO9001-2008;
(7) High performance cost ratio;
(8) Fast delivery;
(9) Customized orders are available;
(10) Good communication skills, good service and understandings for customers.
5. Application
Our flexible Packaging Foil is used to lamination with other material including PVC or PET to make long life packs or aseptic packaging for drinks and dairy products which enables storage without refrigeration; Aluminum foil laminates are used to package many other oxygen or moisture sensitive foods; in the form of pouches; sachets, etc;
