Product Details:
|
| Alloy: | 8006,8011 | Thickness: | 0.08-0.3mm |
|---|---|---|---|
| Width: | 100-1300mm | Color: | Gold , Blue |
| I.D: | 75mm ,150mm , 200mm , 300mm | Temper: | HO , H22 , H24 , H26 |
| Highlight: | industrial aluminium foil,thermal transfer foil |
||

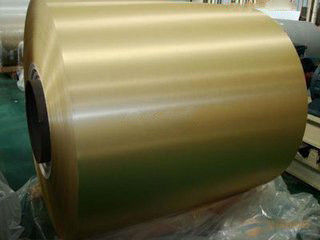

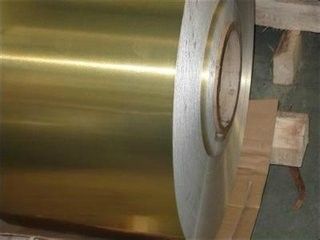

The Anti - oxidation With Gold Colour Aluminum Heat Transfer Foil For Air Conditioning & Cooling System
Chemical Composition ( For Reference Only )
|
Alloy |
Si | Fe | Cu | Mn | Mg | Zn | Cr | Ti | code |
| 8011 | 0.5-0.9 | 0.6-1.0 | 0.1 | 0.2 | 0.05 | 0.1 | 0.05 | 0.08 | 1 |
| 3003 | 0.6 | 0.7 | 0.05-0.2 | 1.0-1.5 | － | 0.1 | － | － | 2 |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.1 | 0.15-0.35 | － | 3 |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | 0.05 | － | － | 4 |
| 1145 | Si+Fe:0.55 | 0.05 | 0.05 | 0.05 | － | － | 0.03 | 5 | |
| 3A21 | 0.6 | 0.7 | 0.2 | 1.0-1.6 | 0.05 | 0.1 | － | 0.15 | 6 |
Mechanical Performance ( For Reference Only )
|
Temper
|
Tensile Strength Rm(MPa) |
Yield Strength Rp0.2(Mpa) |
Extend Ratio A50(%) |
|
O
|
80- 110
|
20
|
6.0
|
|
H22
|
100 - 135
|
16
|
5.5
|
|
H24
|
115 -145 | 12 | 5.0 |
|
H26
|
125 - 160
|
8 | 4.0 |
|
H18
|
160 | 1 | - |
Hydrophilic Foil Coating Layer Performance
|
S/N
|
Item | Technical data |
|
1
|
Film Thick ness | 1.0-2.0um ( single side average thickness) |
| 2 | Hydrophilicity |
Primary contact angle? o Continuous contact angle? 20o |
| 3 | Adherencce Strength |
Erichsen test ( pressed depth 5mm ), no peeling off. Gridding test (100 / 100 ) : No separating |
|
4
|
Corrosion Resistance | Salt & Spray test ( 72 hours ) : R . N ? 9.5 |
|
5
|
Alkai resistance | Dipped in 20o% Na OH under 20oC for 3 minutes, absolutely no blister |
|
6
|
Impregnant resistance | Sample weight loss ? 1 % |
| 7 | Heat resistance |
Under 200oC keep 5 minutes, performance and colo unchanged Under 300oC keep 5 minutes, coating film become a bit yellow |
|
8
|
Oil proof | 24 Hours, no blister on the coating layer |
|
9
|
Coating film odor | No strange odor |
|
10
|
Abrasion to mold | Same as ordinary aluminium foil |
