Product Details:
|
| Core Alloy: | 3003+1.5%Zn+Zr | Clad Alloy: | 4343 |
|---|---|---|---|
| Thickness: | 0.127mm | Width: | 254mm |
| I.D.: | 305mm | O.D.: | ≤1370mm |
| Packaging: | Eye To Wall | Temper: | H14 |
| Highlight: | aluminum foil roll,aluminium foil packaging |
||

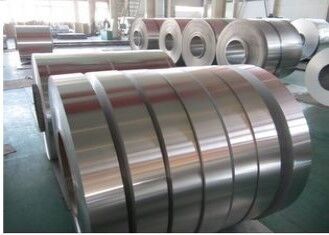

4343 / 3003+1.5%Zn / 4343 H14 0.127 x 254mm Brazing Cladding Aluminum Foil Roll Condenser Thick Heavy Duty Foil Sheets
1. Description of our production
Chemical composition of core material, cladding material about aluminum alloy and composite-material for welding heat exchanger
1) Core Material
| Alloy | Si | Fe | Cu | Mn | Mg | Zn | Zr | Ti | code |
| 3003 | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | － | 0.1 | 0.05 | 0.03 | 1 |
| 3003+1%Zn | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | － | 0.5-1.50 | 0.05 | 0.05 | 2 |
| 3003+1.5%Zn | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | － | 1.0-2.0 | 0.05 | 0.05 | 3 |
| 3003+1.5%Zn+Zr | 0.5-1.0 | 0.7 | 0.05-0.20 | 1.0-1.6 | － | 1.0-2.0 | 0.05-0.2 | - | 4 |
| 3003+0.5%Cu | 0.6 | 0.7 | 0.30-0.70 | 1.0-1.5 | － | 0.10 | 0.05 | 0.1 | 5 |
| 3005 | 0.6 | 0.7 | 0.20-0.40 | 1.0-1.5 | 0.20-0.60 | 0.25 | － | 0.01 | 6 |
2) Cladding Material
| Alloy | Si | Fe | Cu | Mn | Mg | Zn | Zr | Ti | code |
| 4343 | 6.8-8.2 | 0.8 | 0.25 | 0.1 | － | 0.2 | － | 0.05 | 1 |
| 4343+1%Zn | 6.8-8.2 | 0.8 | 0.25 | 0.1 | － | 0.5-1.5 | － | 0.05 | 2 |
| 4045 | 9.0-11.0 | 0.8 | 0.3 | 0.05 | － | 0.2 | － | 0.2 | 3 |
| 4045+1%Zn | 9.0-11.0 | 0.8 | 0.3 | 0.05 | － | 0.5-1.5 | － | 0.2 | 4 |
| 4004 | 9.0-10.5 | 0.8 | 0.25 | 0.1 | 1.0-2.0 | 0.2 | － | 0.2 | 5 |
| 7072 | 0.7 | 0.1 | 0.1 | 0.1 | 0.8-1.3 | － | － | 6 | |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.5-1.1 | 0.5-1.0 | － | 0.03 | 7 |
3) Main mechanical of aluminum alloy and composite-material for welding heat exchanger
| Alloy Code | temper | Tensile Strength | Yield Strength Rp0.2(Mpa) | Extend Ratio |
| TR-010,TR-020,TR-030,TR-040,TR-050,TR-110,TR-310,TR-116,TR-316,TR-111,TR-313,TR-121,TR-131,TR-141,TR-150,TR-151,TR-156 Etc. | O | 95-135* | ≥35* | ≥15* |
| H14 | 140-185 | ≥125 | ≥1.5 | |
| H24 | 140-185 | ≥125 | ≥3.0 | |
| H16 | 185-225 | ≥160 | ≥1.0 | |
| H18 | ≥185 | - | ≥0.5 | |
| TR-166 Etc.tube material | H24 | 185-235 | ≥150 | ≥8 |
TR-116,TR-316 Etc.tube | H14 | 140-185 | ≥125 | ≥3 |
| H24 | 140-185 | ≥125 | ≥8 |
Remark:“*”in the above file means the tensile strength will be 120-150Mpa,yield strength will be ≥45Mpa,and elongation will be ≥20% if the material of TR-050,TR-150,TR-151,TR-156 etc. with temper O contain Cu..
Additional: We can produce special specification according to customer’s request.
4) Produce capability
| Width(mm) | Thickness(mm) | Length(mm) | Inside Diameters(mm) | |
| Sheet | 500-1070 | 0.5-5.0 | 500-2500 | - |
| Strip | 12-1070 | 0.2-3.0 | - | 150,200,300,400,500 |
| Foil | 12-1070 | 0.05-0.2 | - | 150,200,300,400,500 |
| Composite ratio | 4-18%(per side) |
| Percent Clad(per side) | 4-8% | ＞ 8-18% |
| Cladding tolerance | ±1.5% | ±2.0% |
2. Application:
1. Oil Cooler
2. Automobile Radiator
3. Automobile Heater Core
4. Condenser
5. Evaporator
3. Features
Our product line covers all kinds of alloyed material and specifications which is widely used in the automobile and construction machinery and equipment cooling systems, power station cooling system, micro-channel cooler and all kinds of both commercial and residential air-conditioners.
