Product Details:
|
| Alloy: | 1050 1060 1100 3003 | Temper: | O-H112 |
|---|---|---|---|
| Thickness: | 0.5-8.0mm | Diameter: | 100-1000mm |
| Packing: | In Seaworthy Wooden Pallet Or Case | ||
| High Light: | aluminium coil,aluminium sheet coil |
||

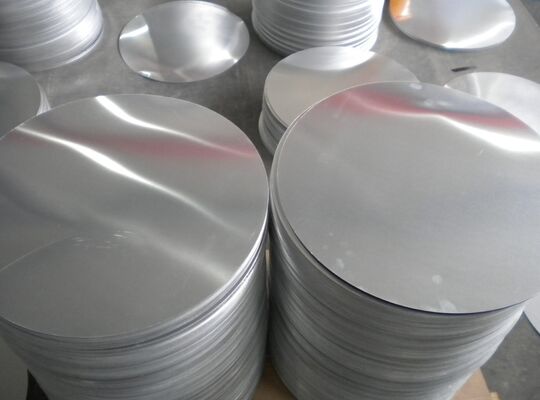

1050 / 1060 / 1100 / 3003 Round Piece Aluminium Circle For Road Sign
1. Alloy: 1100, 1050, 1060, 1070, 3003
2. Temper: O, H12, H14
3. Thickness: 0.5-8.0mm
4. Diameter: 100-1000mm
5. Type: Discs, sheet, coil, plate, strip
6. Min order: 500kgs each size
7. Payment TT or Irrevocable LC at sight
Application of Aluminium Circle:
We are engaged in providing our clients with a wide range of aluminum circles. This range is of supreme quality and is widely appreciated for its accurate dimensions. It is offered by us in various sizes and specifications to meet the varied requirements of our clients.
Our circles are excellent material for producing cookware, utensil, pots, pans and kettles.
Product Features:
1. Wide range of selection on circles' size including customized shape and size;
2. Excellent deep drawing and spinning quality;
Product Range:
1) Product Specifications:
| Product Name | Alloy | Purity | Hardness | Specifications(mm) | |
| Thickness | Diameter | ||||
| Aluminum Circle | 1050 1060 3003 | 96.95-99.70% | O,H12,H14 | 0.5-8.0mm | 100-1000mm |
1*** non alloy, 3**** is alloy
2) Chemical Composition (%):
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ca | V | Ti | Other | Min Al |
| 1050 |
0.25 |
0.40 | 0.05 | 0.05 | 0.05 | - | - | 0.05 | - | 0.05 | 0.03 | 0.03 | 99.5 |
| 1070 | 0.25 | 0.25 | 0.04 | 0.03 | 0.03 | - | - | 0.04 | - | 0.05 | 0.03 | 0.03 | 99.7 |
| 3003 | 0.60 | 0.70 | 0.05-0.20 | 1.00-1.50 | 0.03 | - | - | 0.10 | - | - | - | 0.15 | 96.95-96.75 |
3)Product Properties:
| Temper | Thickness(mm) | Tensile Strength | Elongation(%) | Standard |
| O | 0.4-6.0 | 60-100 | ≥ 20 | GB/T3190-1996 |
| H12 | 0.5-6.0 | 70-120 | ≥ 4 | |
| H14 | 0.5-6.0 | 85-120 | ≥ 2 |
Packing details :
1. Every piece with waterproof membrane , this can protect goods from the damage in process of sea shipping .
2. Wooden pallet or wood case .
3. We will choose the best container and ship company for our customer , give you the best sea freight price to compare .
4) We will take photoes when loading every time .
