Product Details:
|
| Alloy: | 1050 1060 3003 | Temper: | O-H112 |
|---|---|---|---|
| Thickness: | 0.5-8.0mm | Diameter: | 100-1000mm |
| Packing: | In Seaworthy Wooden Pallet Or Case | ||
| Highlight: | aluminium discs circles,aluminium sheet coil |
||

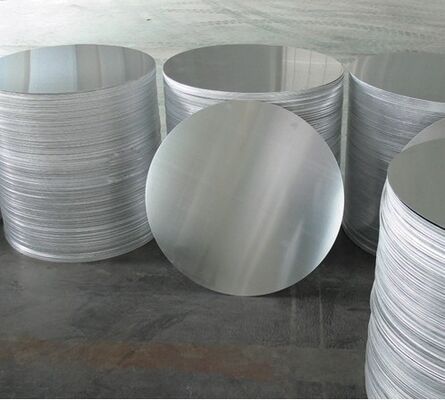

1050 / 1100 / 3003 Hot Rolling Aluminum Circle Round Piece For Cooking Industry
Product Description:
1. Alloy: 1050, 1060, 1100, 3003
2. Temper: O-H112
3. Thickness: 0.5-8.0mm
4. Diameter: 100-1000mm
5. Tolerance of Thickness:±0.05mm
6. Tolerance of Diammeter:-0.05~+0.10mm
7. Surface Treatment: Mill Finish
8. MOQ: 5MT per Size
9. Leadtime: 15-30 Days
10. Payment Terms: 30% by TT in advance as deposit and 70% balance by TT or L/C at sight.
| Chemical Composition (WT. %) | ||||||||||
| ALLOY | Min. Al | Si | Fe | Cu | Mn | Mg | Zn | V | Ti | Other |
| 1050 | 99.5 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.03 | 0.03 |
| 1060 | 99.6 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | 0.05 | 0.05 | 0.03 | 0.03 |
| 1100 | 99 | 0.95 | 0.95 | 0.05-0.2 | 0.05 | / | 0.1 | / | / | 0.05 |
| 3003 | 96.75 | 0.6 | 0.7 | 0.05-0.2 | 1.0-1.5 | / | 0.1 | / | / | 0.15 |
| Specification | ||||||||||
| ALLOY | TEMPER (mm) | THICKNESS(mm) | DIAMETER (mm) | STANDARD | ||||||
| 1050 1060 1100 3003 | HO H12 H14 | 0.5-8.0 | 100-1000 | GB/T91-2002 | ||||||
| Temper | Thickness(mm) | Tensile Strength | Elongation(%) | Standard |
| O | 0.4-6.0 | 60-100 | ≥ 20 | GB/T3190-1996 |
| H12 | 0.5-6.0 | 70-120 | ≥ 4 | |
| H14 | 0.5-6.0 | 85-120 | ≥ 2 |
1 XXX series aluminum alloy
1. Belongs to the industrial pure aluminum.
2. Small density, good conductivity, high thermal conductivity, melting latent heat, light reflection coefficient, thermal neutron absorption boundary area is lesser, and Colour and lustre is beautiful.
3. Aluminum surface in air to form a dense and strong oxidation film, prevent the invasion of the oxygen, thus has the character of good corrosion resistance.
4. Lower intensity, 1 XXX series aluminum alloy heat treatment method cannot achieve reinforcement effect, only a method of cold work hardening is adopted to improve the strength.
Remark: Specific requirement of alloy, temper or specifications can be discussed in your request. If you have any requirement or question, Contact us please.
Application of Aluminum Circle:
Cookware, Utensil, Pots, Pans,Kettles and Vent Roof.
Packing of Aluminium Circle:
Aluminium Round can be packed in export standard, covering with brown paper and plastic film. Finally the Aluminium Round is fixed on wooden pallet/wooden case.
