Product Details:
|
| Alloy: | 1050 1060 3003 | Temper: | O-H112 |
|---|---|---|---|
| Thickness: | 0.5-8.0mm | Diameter: | 100-1000mm |
| Packing: | In Seaworthy Wooden Pallet Or Case | ||
| Highlight: | aluminium coil,aluminium discs circles |
||

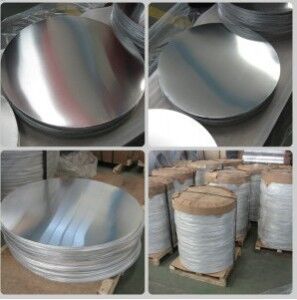

1050 / 3003 Aluminum Disc Circle / Round Piece For Cookware / Traffic Sign
Aluminum circle is also called aluminum discs,aluminum stamping,aluminum round and aluminum blank circle etc.
| Available aluminium alloy | 1000 series e.g. 1050, 1060, 1070, 1100, etc. 3000 series e.g. 3003, 3004, 3105, 3A21 etc. |
| Thickness range | 0.5-8.0mm |
| Width range | 100-1000mm |
| Temper | O, H12, H22, H14, H24, H16, H26, etc. |
| Hot rolled and cold rolled both available | |
| Surface: Bright silver, mill finished | |
| Chemical Composition (WT. %) | ||||||||||
| ALLOY | Min. Al | Si | Fe | Cu | Mn | Mg | Zn | V | Ti | Other |
| 1050 | 99.5 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.03 | 0.03 |
| 1060 | 99.6 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | 0.05 | 0.05 | 0.03 | 0.03 |
| 1100 | 99 | 0.95 | 0.95 | 0.05-0.2 | 0.05 | / | 0.1 | / | / | 0.05 |
| 3003 | 96.75 | 0.6 | 0.7 | 0.05-0.2 | 1.0-1.5 | / | 0.1 | / | / | 0.15 |
| Specification | ||||||||||
| ALLOY | TEMPER (mm) | THICKNESS(mm) | DIAMETER (mm) | STANDARD | ||||||
| 1050 1060 1100 3003 | HO H12 H14 | 0.5-8.0 | 100-1000 | GB/T91-2002 | ||||||
| Temper | Thickness(mm) | Tensile Strength | Elongation(%) | Standard |
| O | 0.4-6.0 | 60-100 | ≥ 20 | GB/T3190-1996 |
| H12 | 0.5-6.0 | 70-120 | ≥ 4 | |
| H14 | 0.5-6.0 | 85-120 | ≥ 2 |
Aluminum Circle Process:
Aluminum Ingots --- Melting Furnace – Holding Furnace --- D.C. Caster --- Slab ---- Scalper --- Hot Rolling Mill – Cold Rolling Mill – Punching – Annealing Furnace -- Final Inspection – Packing --- Delivery
Aluminium Circle Usage:
Making cookware, utensils, Non-stick pans/pots, Bowl or cup, traffic sign ,pizza trays, pie pans, cake pans, covers, kettles, basins, fryers, light reflectors and so on
Aluminum Circle Features:
1. Wide range of selection on circles' size.
2. Excellent Surface Quality for lighting reflectors.
3. Excellent deep drawing and spinning quality.
4. We provide heavy gauge circles with thicknesses up to 5mm diameter up to 1200mm, which would meet all your needs.
5. Anodizing Quality and Deep Drawing Quality which is suitable for cookware as well.
6. Well-Protected Packing.
Packing details :
Aluminium circle s for non stick pan :
1) every piece with waterproof membrane , this can protect goods from the damage in process of sea shipping .
2) wooden pallet or wood case .
3) We will choose the best container and ship company for our customer , give you the best sea freight price to compare .
4) We will take photoes when loading every time .
