Product Details:
|
| Alloy: | 1050 1060 3003 | Temper: | O-H112 |
|---|---|---|---|
| Thickness: | 0.5-8.0mm | Diameter: | 100-1000mm |
| Packing: | In Seaworthy Wooden Pallet Or Case | ||
| Highlight: | aluminium coil,aluminium discs circles |
||

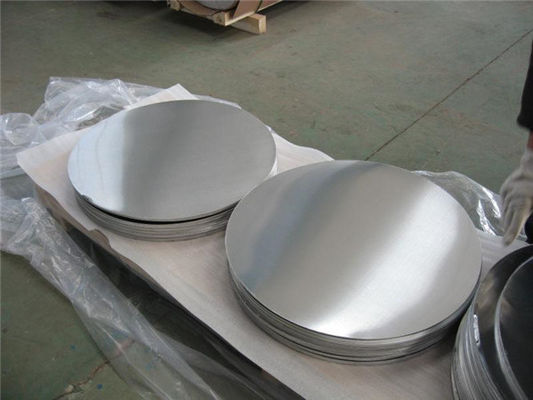

Aluminum Circle Signage / Lamp Post / Road Sign / Thin Plate 1050 / 1100 / 3003-O
Aluminum circle is also called aluminum discs,aluminum stamping,aluminum round and aluminum blank circle etc.
Aluminium Circle:
| Available aluminium alloy | 1000 series e.g. 1050, 1060, 1070, 1100, etc. 3000 series e.g. 3003, 3004, 3105, 3A21 etc. |
| Thickness range | 0.5-8.0mm |
| Width range | 100-1000mm |
| Temper | O, H12, H22, H14, H24, H16, H26, etc. |
| Hot rolled and cold rolled both available | |
| Surface: Bright silver, mill finished | |
Aluminum Circle / Aluminium disc Features:
1. Wide range of selection on circles' size.
2. Excellent Surface Quality for lighting reflectors.
3. Excellent deep drawing and spinning quality.
4. We provide heavy gauge circles with thicknesses up to 5mm diameter up to 1200mm, which would meet all your needs.
5. Anodizing Quality and Deep Drawing Quality which is suitable for cookware as well.

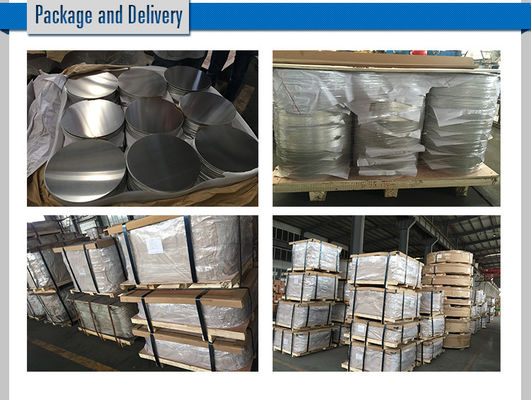

6. Well-Protected Packing.
Advantage(3003 aluminum circle)
1. Manufacturer
2. Factory price &best service
3. Good formability
4. Anticorrosion
Though smelting, casting, hot-rolling, cold-rolling, heat-treatment, finishing and other technology, the heavy melting aluminum and an appropriate quality of alloying elements is processed to light nonferrous metal material which has the characters of fine luster, good looking, light weight, poison less and selflessness, and it also has good properties of transmitting electric current and heat, processing and corrosion-resisting Applicability
| Chemical Composition (WT. %) | ||||||||||
| ALLOY | Min. Al | Si | Fe | Cu | Mn | Mg | Zn | V | Ti | Other |
| 1050 | 99.5 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.03 | 0.03 |
| 1060 | 99.6 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | 0.05 | 0.05 | 0.03 | 0.03 |
| 1100 | 99 | 0.95 | 0.95 | 0.05-0.2 | 0.05 | / | 0.1 | / | / | 0.05 |
| 3003 | 96.75 | 0.6 | 0.7 | 0.05-0.2 | 1.0-1.5 | / | 0.1 | / | / | 0.15 |
| Specification | ||||||||||
| ALLOY | TEMPER (mm) | THICKNESS(mm) | DIAMETER (mm) | STANDARD | ||||||
| 1050 1060 1100 3003 | HO H12 H14 | 0.5-8.0 | 100-1000 | GB/T91-2002 | ||||||
| Temper | Thickness(mm) | Tensile Strength | Elongation(%) | Standard |
| O | 0.4-6.0 | 60-100 | ≥ 20 | GB/T3190-1996 |
| H12 | 0.5-6.0 | 70-120 | ≥ 4 | |
| H14 | 0.5-6.0 | 85-120 | ≥ 2 |
Aluminum Circle Process:
Aluminum Ingots --- Melting Furnace – Holding Furnace --- D.C. Caster --- Slab ---- Scalper --- Hot Rolling Mill – Cold Rolling Mill – Punching – Annealing Furnace -- Final Inspection – Packing --- Delivery
Aluminium Circle Usage:
Making cookware, utensils, Non-stick pans/pots, Bowl or cup, traffic sign ,pizza trays, pie pans, cake pans, covers, kettles, basins, fryers, light reflectors and so on
