Product Details:
|
| Alloy: | 1050 1060 3003 | Temper: | O-H112 |
|---|---|---|---|
| Thickness: | 0.5-8.0mm | Diameter: | 100-1000mm |
| Packing: | In Seaworthy Wooden Pallet Or Case | ||
| Highlight: | aluminium coil,aluminium discs circles |
||
1050 / 3003 Aluminum Road Sign / Aluminum Traffic Sign for Highway Road
Aluminum circle is also called aluminum discs,aluminum stamping,aluminum round and aluminum blank circle etc.

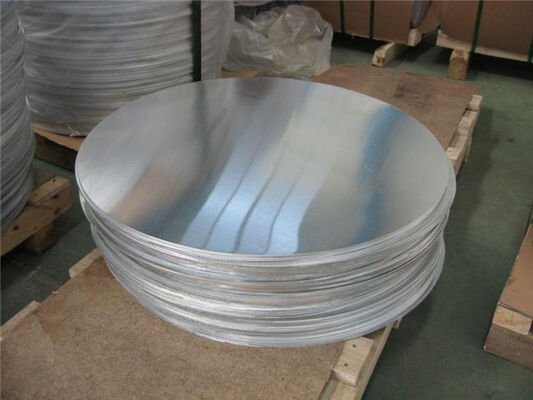

Aluminium Circle
Alloy: 1050, 1060, 1070, 1100, 3003
Temper: O, H22, H14, H16
Thickness: 0.50~8.0mm
Diameter: 100~1000mm
Product Range:
1) Product Specifications:
| Product Name | Alloy | Purity | Hardness | Specifications(mm) | |
| Thickness | Diameter | ||||
| Aluminum Circle | 1050 1060 3003 | 96.95-99.70% | O,H12,H14 | 0.5-6.0mm | 20-980mm |
1*** non alloy, 3**** is alloy
2) Chemical Composition (%):
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ca | V | Ti | Other | Min Al |
| 1050 | 0.25 | 0.40 | 0.05 | 0.05 | 0.05 | - | - | 0.05 | - | 0.05 | 0.03 | 0.03 | 99.5 |
| 1070 | 0.25 | 0.25 | 0.04 | 0.03 | 0.03 | - | - | 0.04 | - | 0.05 | 0.03 | 0.03 | 99.7 |
| 3003 | 0.60 | 0.70 | 0.05-0.20 | 1.00-1.50 | 0.03 | - | - | 0.10 | - | - | - | 0.15 | 96.95-96.75 |
3) Product Properties:
| Temper | Thickness(mm) | Tensile Strength | Elongation(%) | Standard |
| O | 0.4-6.0 | 60-100 | ≥ 20 | GB/T3190-1996 |
| H12 | 0.5-6.0 | 70-120 | ≥ 4 | |
| H14 | 0.5-6.0 | 85-120 | ≥ 2 |
Aluminum Circle Process:
Aluminum Ingots --- Melting Furnace – Holding Furnace --- D.C. Caster --- Slab ---- Scalper --- Hot Rolling Mill – Cold Rolling Mill – Punching – Annealing Furnace -- Final Inspection – Packing --- Delivery
Aluminium Circle Application:
Making cookware, utensils, Non-stick pans/pots, Bowl or cup, traffic sign ,pizza trays, pie pans, cake pans, covers, kettles, basins, fryers, light reflectors and so on
Packing details :
Aluminium circle s for non stick pan :
1) Every piece with waterproof membrane , this can protect goods from the damage in process of sea shipping .
2) wooden pallet or wood case .
3) We will choose the best container and ship company for our customer , give you the best sea freight price to compare .
4) We will take photoes when loading every time .
