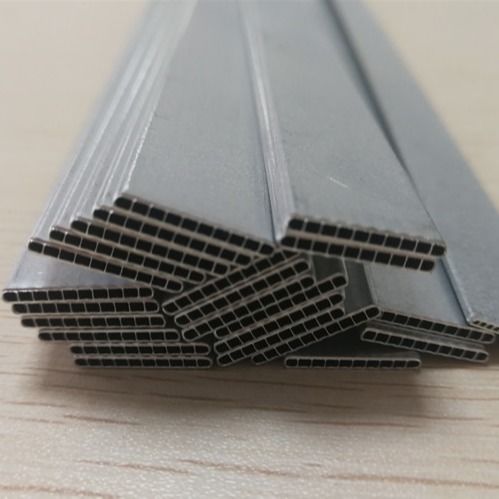

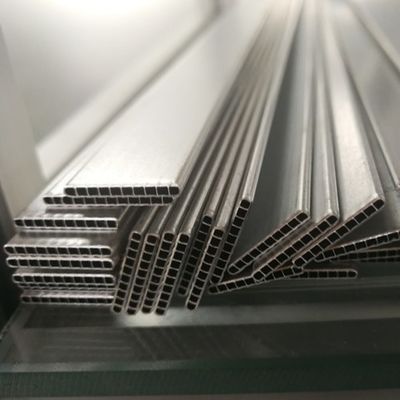

3003 / 3102 Parallel Flow Microchannel Aluminum Condenser Tube For Auto Air Conditioning

3003 / 3102 Parallel Flow Microchannel Aluminum Condenser Tube For Auto Air Conditioning

1. Product Description:

Parallel Flow Microchannel aluminum condenser tube extrusion (MPE tube) is mainly used for the production of heat exchangers. Due to its high corrosion-resistance & good heat conductivity, Aluminum Condenser Extruded Tube is particularly well suited for the use in evaporators & condensers. Aluminum Condenser Tube is required increased burst strength and better heat conductivity for an optimized product size. To meet the market requirement, we developed zinc-coated & flux coated aluminum condenser tube extrusions, it can be supplied in the form of coils, or fixed length by non-cutting separation method.

2. The Parallel Flow Microchannel Aluminum Condenser Tube Extrusion (MPE tube) is unique tubes developed with the highest manufacturing quality and is characterized by the following properties:

1. Low weight
2. Good thermal and electricity conductivity
3. Good forming and bending capability
4. Good corrosion and pressure resistance
5. High recycling value
6. Narrow tolerance range
7. High surface quality

3. Commonly used material chemical composition

4. Supply state and mechanical properties

5. Our strength is based on three solid pillars:
1) Strong tooling R&D ability: our independent mold center, which enables to master the core technology with fast response, it not only meets customer's demands, but also ensures timely delivery.
2) High-quality product: We adopt the ISO9001:2000 quality management system.
3) Outstanding service: Providing technical support for the customers and aftersale service for the customer all around the world whenever they need.

6. Application:

Beside increased global performances, an all-aluminium brazed heat exchanger using our aluminum condenser tube extrusion will also present better corrosion resistance. The aluminum tube extrusions are primarily used for the following applications:
Condensers
Evaporators

Oil coolers

Radiators
Heater cores

7. Aluminum tube extrusions are available in various sizes and alloys, ensuring the best properties for the purpose required.

8. Dimensions: Designed to customer specification

9. Package: Shipping in the form of coils or straight with fixed length

10. Surface Treatment : Zinc spray / without Zinc spray as per customers' request
