Micro - Channel Aluminum Radiator Tube Low Weight MPE Flat Aluminium Tube

Micro - Channel Aluminum Radiator Tube Low Weight MPE Flat Aluminium Tube
Micro - Channel Aluminum Radiator Tube Low Weight MPE Flat Aluminium Tube Micro - Channel Aluminum Radiator Tube Low Weight MPE Flat Aluminium Tube

Large Image :  Micro - Channel Aluminum Radiator Tube Low Weight MPE Flat Aluminium Tube

Product Details:
Place of Origin: China
Brand Name: Trumony
Certification: ISO 9001:2000,ISO/TS16949:2002
Model Number: 3003/3102/1100
Payment & Shipping Terms:
Minimum Order Quantity: 3-5 Ton
Price: negotiable
Packaging Details: plywood case
Delivery Time: 15-20days

Micro - Channel Aluminum Radiator Tube Low Weight MPE Flat Aluminium Tube

Description
Alloy: 3003,3102,1100,1050 Temper: O,F,H111,H112
Shape: Flat Oval Applications: Radiators,Condensers,Evaporators
Surface: Zinc-spraying Or Mill Finished
High Light:

aluminium alloy tube

,

round aluminum tubing

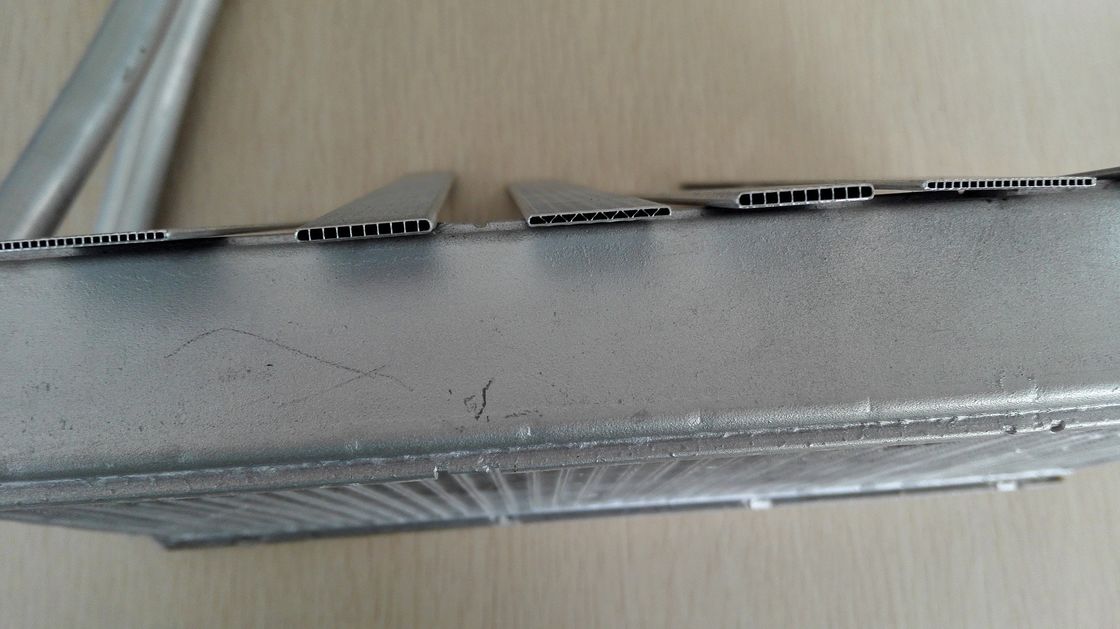

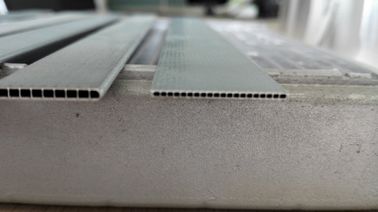

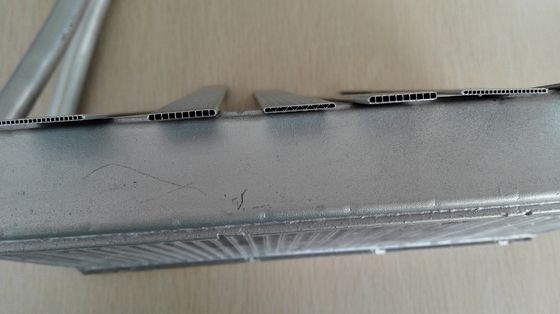

Micro-Channel Flat Aluminum Tube / Micro-Multiport Extrusion Aluminum Tube / MPE Aluminum Tube




Product Introduction:

Micro-multiport extrusion aluminum tube (MPE tube) is mainly used for the production of heat exchangers. Due to its high corrosion-resistance & good heat conductivity, MPE tube is particularly well suited for the use in evaporators & condensers. MPE tube is required increased burst strength and better heat conductivity for an optimized product size. To meet the market requirement, we developed zinc-coated & flux coated MPE tubes, it can be supplied in the form of coils, or fixed length by non-cutting separation method.


The Micro-multiport extrusion aluminum tube (MPE tube) is unique tubes developed with the highest manufacturing quality and is characterized by the following properties:



1. Low weight
2. Good thermal and electricity conductivity
3. Good forming and bending capability
4. Good corrosion and pressure resistance
5. High recycling value
6. Narrow tolerance range
7. High surface quality


Commonly used material chemical composition

No. Alloy Si Fe Cu Mn Mg Cr Zn V Ti
1 1050 ≤0.25 ≤0.40 ≤0.05 ≤0.05 ≤0.05 --- ≤0.05 ≤0.05 ≤0.03
2 1100 ≤0.95(Si+Fe) 0.05-0.20 ≤0.05 --- --- ≤0.10 --- ---
3 3102 ≤0.40 ≤0.70 ≤0.10 0.05-0.40 --- --- ≤0.30 --- ≤0.10
4 3003 ≤0.15 ≤0.15 ≤0.01 0.90-1.10 ≤0.03 ≤0.03 ≤0.05 ≤0.05 ≤0.05


Supply state and mechanical properties

Alloy Temper Tensile Strength Yield Strength Elongation

1050

O/F/H111/H112 ≥65MPa ≥20MPa ≥25%
1100 O/F/H111/H112 ≥75MPa ≥20MPa ≥25%
3102 O/F/H111/H112 ≥75MPa ≥20MPa ≥25%
3003 O/F/H111/H112 ≥75MPa ≥20MPa ≥25%


The corrosion resistance performance
Salt spray test ≥750hours

The pressure resistance performance

Automobile Condensers Household Condensers Evaporators
≥9MPa ≥13.5 MPa ≥3.5 MPa



Applications:

Our aluminium tubes are found mainly in applications such as condensers and evaporators for air conditioning systems as well as liquid lines for air conditioning, heater cores and radiators for engine cooling systems, charge air coolers and other cooling systems.



The Multi Port Extruded profiles are available in various sizes and alloys, ensuring the best properties for the purpose required.



MPE Width 7-120mm
Height 1-10mm
Wall thickness 0.2-0.5mm
Other non-standard dimensions are available upon request.


Package: In coil or Straight with fixed length.


Surface Treatment : With Zinc spraying or without Zinc spraying.



Micro - Channel Aluminum Radiator Tube Low Weight MPE Flat Aluminium Tube 0
