Aluminium Foil Roll Thickness 0.08mm for Brazing Heat Exchangers

MOQ:	5 TON
Price:	negotiated
Standard Packaging:	Fumigated pallet standard export packaging
Delivery Period:	30 working days
Payment Method:	L/C, T/T
Supply Capacity:	100,000 ton per year

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Trumony

Certification

ISO,IATF

Model Number

3003/4343

Core Alloy:

3003/3003+1.5%Zn+Zr/3005

Clad Alloy:

4343/4045

Temper:

H14/H22/H24/H14SR/H16

Regular Thickness:

0.08mm

Regular Width:

1070mm

Packing:

Eye To Wall

75mm,150mm,200mm,300mm,400mm

1700mm Max.

Highlight:

polished aluminium sheet

aluminium sheet metal

Aluminium Foil Roll Thickness 0.08mm

Product Description

4343/3003+0.5%Cu/4343 H16 0.08 x 1070mm Aluminum Foil Roll for Automotive Heat Exchangers

1. Description of our production

Chemical composition of core material, cladding material about aluminum alloy and composite-material for welding heat exchanger

1) Core Material

Alloy	Si	Fe	Cu	Mn	Mg	Zn	Zr	Ti	code
3003	0.6	0.7	0.05-0.20	1.0-1.5	－	0.1	0.05	0.03	1
3003+1%Zn	0.6	0.7	0.05-0.20	1.0-1.5	－	0.5-1.50	0.05	0.05	2
3003+1.5%Zn	0.6	0.7	0.05-0.20	1.0-1.5	－	1.0-2.0	0.05	0.05	3
3003+1.5%Zn+Zr	0.5-1.0	0.7	0.05-0.20	1.0-1.6	－	1.0-2.0	0.05-0.2	-	4
3003+0.5%Cu	0.6	0.7	0.30-0.70	1.0-1.5	－	0.10	0.05	0.1	5
3005	0.6	0.7	0.20-0.40	1.0-1.5	0.20-0.60	0.25	－	0.01	6

2) Cladding Material

Alloy	Si	Fe	Cu	Mn	Mg	Zn	Zr	Ti	code
4343	6.8-8.2	0.8	0.25	0.1	－	0.2	－	0.05	1
4343+1%Zn	6.8-8.2	0.8	0.25	0.1	－	0.5-1.5	－	0.05	2
4045	9.0-11.0	0.8	0.3	0.05	－	0.2	－	0.2	3
4045+1%Zn	9.0-11.0	0.8	0.3	0.05	－	0.5-1.5	－	0.2	4
4004	9.0-10.5	0.8	0.25	0.1	1.0-2.0	0.2	－	0.2	5
7072	0.7		0.1	0.1	0.1	0.8-1.3	－	－	6
5005	0.3	0.7	0.2	0.2	0.5-1.1	0.5-1.0	－	0.03	7

3) Main mechanical of aluminum alloy and composite-material for brazing heat exchangers

Alloy Code	temper	Tensile Strength Rm(MPa)	Yield Strength Rp_0.2(Mpa)	Extend Ratio A₅₀(%)
TR-010,TR-020,TR-030,TR-040,TR-050,TR-110,TR-310,TR-116,TR-316,TR-111,TR-313,TR-121,TR-131,TR-141,TR-150,TR-151,TR-156 Etc.	O	95-135*	≥35*	≥15*
	H14	140-185	≥125	≥1.5
	H24	140-185	≥125	≥3.0
	H16	185-225	≥160	≥1.0
	H18	≥185	-	≥0.5
TR-166 Etc.tube material	H24	185-235	≥150	≥8
TR-116,TR-316 Etc.tube material	H14	140-185	≥125	≥3
TR-116,TR-316 Etc.tube material	H24	140-185	≥125	≥8

Remark:“*”in the above file means the tensile strength will be 120-150Mpa,yield strength will be ≥45Mpa,and elongation will be ≥20% if the material of TR-050,TR-150,TR-151,TR-156 etc. with temper O contain Cu..

Additional: We can produce special specification according to customer’s request.

4) Production capability

	Width(mm)	Thickness(mm)	Length(mm)	Inside Diameters(mm)
Sheet	500-1070	0.5-5.0	500-2500	-
Strip	12-1070	0.2-3.0	-	150,200,300,400,500
Foil	12-1070	0.05-0.2	-	150,200,300,400,500

Composite ratio

4-18%(per side)

Percent Clad(per side)	4-8%	＞ 8-18%
Cladding tolerance	±1.5%	±2.0%

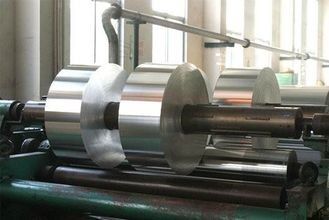

Aluminium Foil Roll Thickness 0.08mm for Brazing Heat Exchangers 0

2. Our advantage

1. We have more than 10 years' rich supplying experience in automotive heat exchange industry in China;

2. Good reputation in Aluminum and Copper Areas;

3. We start our productions from aluminum ingot,so we can control the quality as well;

4. We have our own development department for new material research;

5. Good experience and cooperation with big client in the world;

6. With Certificate IATF,ISO.

7. High performance cost ratio;

8. Fast delivery time;

9. Good communication skills, and good service and understandings for customers;.

3. Application:

We dedicated to the production of clad and unclad aluminum materials for braze-type automobile heat exchangers like radiator, intercooler, condenser, evaporator and industrial heat exchangers, like air coolers for power plants, air conditioner etc.and other aluminum alloy products.

4. FAQ:

1, Q: Are you manufacturer?

A: Yes, as a manufacturer our customers are welcome to visit our factory.

2, Q: Do you accept customized orders?

A: Yes, we do. Your customized orders are always welcomed. Please kindly offer us your technical perfrmances or samples so that we can customize the products according to your preferences. About any further detail, please feel free to contact us.

3. Q: How can I get one quotation faster?

A: Pls offer details about your demands as more as possible,insulation thickness,over diameter,nominal voltage,working temperature,color,quantity,application,etc.

4, Q: What's your MOQ?

A: Normally 5-6 ton for one master coil,for regular specification,it can be combined together other customers' order.

5, Q: What's your payment term?

A: 30% deposit in advance via T/T,balance before shipment.

Aluminium Foil Roll Thickness 0.08mm for Brazing Heat Exchangers 1
