Product Details:
|
| Core Alloy: | 3003/3003+1.5%Zn+Zr/3005 | Clad Alloy: | 4343/4045 |
|---|---|---|---|
| Temper: | H14/H22/H24/H14SR/H16 | Regular Thickness: | 0.08mm |
| Regular Width: | 1070mm | Packing: | Eye To Wall |
| ID: | 75mm,150mm,200mm,300mm,400mm | OD: | 1700mm Max. |
| Highlight: | polished aluminium sheet,aluminium sheet metal,Aluminium Foil Roll Thickness 0.08mm |
||

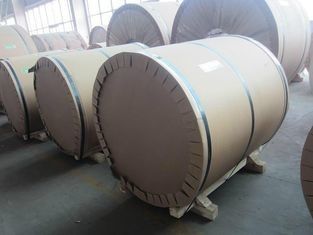

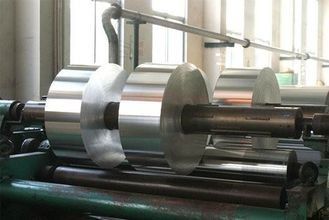

4343/3003+0.5%Cu/4343 H16 0.08 x 1070mm Aluminum Foil Roll for Automotive Heat Exchangers
1. Description of our production
Chemical composition of core material, cladding material about aluminum alloy and composite-material for welding heat exchanger
1) Core Material
| Alloy | Si | Fe | Cu | Mn | Mg | Zn | Zr | Ti | code |
| 3003 | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | － | 0.1 | 0.05 | 0.03 | 1 |
| 3003+1%Zn | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | － | 0.5-1.50 | 0.05 | 0.05 | 2 |
| 3003+1.5%Zn | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | － | 1.0-2.0 | 0.05 | 0.05 | 3 |
| 3003+1.5%Zn+Zr | 0.5-1.0 | 0.7 | 0.05-0.20 | 1.0-1.6 | － | 1.0-2.0 | 0.05-0.2 | - | 4 |
| 3003+0.5%Cu | 0.6 | 0.7 | 0.30-0.70 | 1.0-1.5 | － | 0.10 | 0.05 | 0.1 | 5 |
| 3005 | 0.6 | 0.7 | 0.20-0.40 | 1.0-1.5 | 0.20-0.60 | 0.25 | － | 0.01 | 6 |
2) Cladding Material
| Alloy | Si | Fe | Cu | Mn | Mg | Zn | Zr | Ti | code |
| 4343 | 6.8-8.2 | 0.8 | 0.25 | 0.1 | － | 0.2 | － | 0.05 | 1 |
| 4343+1%Zn | 6.8-8.2 | 0.8 | 0.25 | 0.1 | － | 0.5-1.5 | － | 0.05 | 2 |
| 4045 | 9.0-11.0 | 0.8 | 0.3 | 0.05 | － | 0.2 | － | 0.2 | 3 |
| 4045+1%Zn | 9.0-11.0 | 0.8 | 0.3 | 0.05 | － | 0.5-1.5 | － | 0.2 | 4 |
| 4004 | 9.0-10.5 | 0.8 | 0.25 | 0.1 | 1.0-2.0 | 0.2 | － | 0.2 | 5 |
| 7072 | 0.7 | 0.1 | 0.1 | 0.1 | 0.8-1.3 | － | － | 6 | |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.5-1.1 | 0.5-1.0 | － | 0.03 | 7 |
3) Main mechanical of aluminum alloy and composite-material for brazing heat exchangers
| Alloy Code | temper |
Tensile Strength Rm(MPa) |
Yield Strength Rp0.2(Mpa) |
Extend Ratio A50(%) |
| TR-010,TR-020,TR-030,TR-040,TR-050,TR-110,TR-310,TR-116,TR-316,TR-111,TR-313,TR-121,TR-131,TR-141,TR-150,TR-151,TR-156 Etc. | O | 95-135* | ≥35* | ≥15* |
| H14 | 140-185 | ≥125 | ≥1.5 | |
| H24 | 140-185 | ≥125 | ≥3.0 | |
| H16 | 185-225 | ≥160 | ≥1.0 | |
| H18 | ≥185 | - | ≥0.5 | |
| TR-166 Etc.tube material | H24 | 185-235 | ≥150 | ≥8 |
|
TR-116,TR-316 Etc.tube material |
H14 | 140-185 | ≥125 | ≥3 |
| H24 | 140-185 | ≥125 | ≥8 |
Remark:“*”in the above file means the tensile strength will be 120-150Mpa,yield strength will be ≥45Mpa,and elongation will be ≥20% if the material of TR-050,TR-150,TR-151,TR-156 etc. with temper O contain Cu..
Additional: We can produce special specification according to customer’s request.
4) Production capability
| Width(mm) | Thickness(mm) | Length(mm) | Inside Diameters(mm) | |
| Sheet | 500-1070 | 0.5-5.0 | 500-2500 | - |
| Strip | 12-1070 | 0.2-3.0 | - | 150,200,300,400,500 |
| Foil | 12-1070 | 0.05-0.2 | - | 150,200,300,400,500 |
| Composite ratio | 4-18%(per side) |
| Percent Clad(per side) | 4-8% | ＞ 8-18% |
| Cladding tolerance | ±1.5% | ±2.0% |
2. Our advantage
1. We have more than 10 years' rich supplying experience in automotive heat exchange industry in China;
2. Good reputation in Aluminum and Copper Areas;
3. We start our productions from aluminum ingot,so we can control the quality as well;
4. We have our own development department for new material research;
5. Good experience and cooperation with big client in the world;
6. With Certificate IATF,ISO.
7. High performance cost ratio;
8. Fast delivery time;
9. Good communication skills, and good service and understandings for customers;.
3. Application:
We dedicated to the production of clad and unclad aluminum materials for braze-type automobile heat exchangers like radiator, intercooler, condenser, evaporator and industrial heat exchangers, like air coolers for power plants, air conditioner etc.and other aluminum alloy products.
