Product Details:
|
| Temper: | H112 | Specification: | As Customize |
|---|---|---|---|
| Application: | Automobile Manufacturing | Transport Package: | Wooden, As Customize |
| Thickness: | 3-20mm | Width: | 1000-2800mm |
| Length: | 2000-12600mm | ||
| Highlight: | aluminum foil roll,aluminium foil packaging |
||

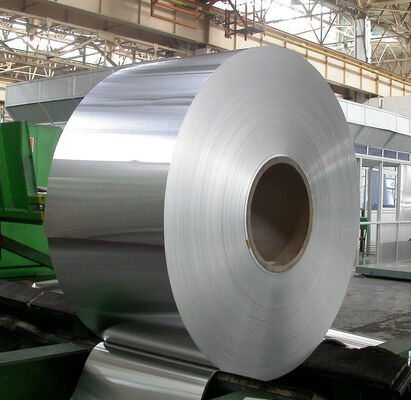

Superior 5083 H112 Aluminum Foil Roll for Automobile Manufacturing
1.Introduction
As aluminum reserves in the crust is very rich, It has more advantages over other metals. Aluminum in the future will still have a wide range of applications, for example, the car manufacturers are currently exploring the use of aluminum instead of steel, and make the car lighter. With the progress of technology, aluminum products not only in the aerospace, transportation, electronic power, construction and other traditional applications but also continue to grow rapidly in the new areas.
Applications:
Tank truck plate, refrigerator plate, container board, square cabin body panel, car door, fender, floor, body frame, covering parts, etc.
5083 aluminum alloy is a high magnesium alloy. It has good strength, good corrosion resistance and good machinability in non heat treated alloy.
Production features: Large scale, moderate strength, high surface, high dimensional accuracy, anti-corrosion, easy to welding, easy forming, without low temperature brittleness, and recyclable.
2.Metal content
(Zn)≤0.25
(Cr)≤0.05-0.25
(Si)≤0.40
(Fe)≤0.40
(Mn)0.40-1.00
(Mg)4.0～4.90
(Ti)≤0.15
(Cu)≤0.10
(Al) Remainder
| Alloy NO. | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other | Al |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | 0.05 | 0.03 | 0.03 | ≥99.5 | |
| 3003 | 0.6 | 0.7 | 0.05-0.2 | 1.0-1.5 | 0.1 | 0.05 | Remainder | |||
| 4047 | 11.0-13.0 | 0.8 | 0.3 | 0.15 | 0.1 | 0.2 | Remainder | |||
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | 0.1 | Remainder | ||
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | Remainder | |
| 7075 | 0.4 | 0.5 | 1.2-2.0 | 0.3 | 2.1-2.9 | 0.18-0.28 | 5.1-6.1 | 0.2 | Remainder |
3.The flow chart
4.Company
Trumony Aluminum Limited is committed to providing clean aluminum material solution to the market. 'Through the discovery and creation, to bring value to customers' is the company philosophy. A manufacturer of aluminum materials with many years' experience, it was established in 2006. Through years of developing, we have supplied products to many large companies with different series of materials. Now we are widely engaged in transportation, heat exchange, cable, packaging, construction, electronics, environmental protection and other fields, Apart from our current production, we are also actively developing new aluminum materials and searching for customers solutions which is best suited for different industries to meet the precise needs of customers.
If you have the need about slitting, cutting and deep-producing, you can contact us.
Hope we can build the relationship in the future.
Good luck!
