Product Details:
|
| Alloy: | 8011 | Temper: | H14 |
|---|---|---|---|
| Thickness: | 0.1-500mm | Width: | 300-1510mm |
| Technical: | Mill Finish | Other Requirement: | As Customers |
| High Light: | aluminum foil roll,heavy duty aluminum foil |
||

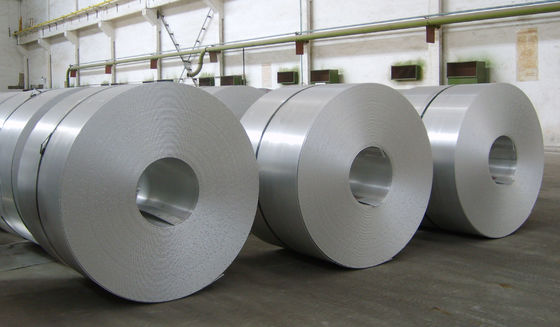

1 , Products : Aluminum coil for composite panel
2 , Alloy : 8000 series , 3000 Series , 1000 series
3 , Aluminum Thickness (mm) : 0.1 ~ 0.5 mm
4 , Temper : H44 , H46 , H18 ,
5 , Width : 300 ~ 1510 mm
7 , Coil wight : < / = 5000 kg
8 , I D : 75 mm , 105 mm,300mm,400mm
Remarks : 1 . The alloy , temper & size can be negotiated by buyer and seller
2 , Width can be 50 ~ 800mm as per customer's requirement.
As per international standard ASTM OR EN standard ,
all chemical composition ,mechanical property ,size tolerance ,flat tolerance ,etc strictly as per ASTM OR EN standard
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other | Al | |
| Single | Total | ||||||||||
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | _ | 0.05 | 0.03 | 0.03 | _ | ≥99.5 |
| 8011 | 0.5~0.9 | 0.6~1.0 | 0.1 | 0.2 | 0.05 | 0.05 | 0.1 | 0.08 | 0.05 | 0.15 | Remainder |
| Temper |
Tensile Strength Rm(MPa) |
Erichsen(mm) | Elongation(%) |
| O | 80-110 | 6.0 | 20 |
| H22 | 100-135 | 5.5 | 16 |
| H24 | 115-145 | 5.0 | 12 |
| H26 | 125-160 | 4.0 | 8 |
| H18 | 160 | - | 1 |
1. Since 1988, we have rich experience in this industry in China;
2. Good reputation in copper cable industry;
3. We have our own development department for new material research;
4. Good experience and cooperation with big client in the world;
5. With Certificate ISO9001-2008;
6. High performance cost ratio;
7. Fast delivery time;
8. Good communication skills, and good service and understandings for customers;.
1, Q: Are you manufacturer?
A: Yes, we are established in 2003. As a manufacturer our customers are welcome to visit our factory.
2, Q: Do you accept customized orders?
A: Yes, we do. Your customized orders are always welcomed. Please kindly offer us your technical perfrmances or samples so that we can customize the products according to your preferences. About any further detail, please feel free to contact us.
3. Q: How can I get one quotation faster?
A: Pls offer details about your demands as more as possible,insulation thickness,over diameter,nominal voltage,working temperature,color,quantity,application,etc.
4. Q: If I can not offer above information,what should I do?
A: Try your best to offer more information,we will help you design suitable wires&cables.
5. Q: What is your company sample policy?
A: As one supplier,we see that sample is necessary for our both sides,our policy is to offer free sample as possible as we can,just one situation is exception,sample is with very complex structure,besides,we have no it in stock.
