0.08mm Thickness 3003 Mod Aluminum Foil For Car Radiator Manufacturing

Basic Properties
Place of Origin: China
Brand Name: Trumony
Model Number: TR313
Trading Properties
Minimum Order Quantity: 7mt
Price: USD3500/mt
Payment Terms: L/C, T/T
Supply Ability: 1000mt per 30 days
Tags

aluminum foil roll

aluminium foil packaging

heavy duty aluminum foil
Specifications
alloy: 3003 Mod temper: HO / H14SR / H16
Thickness: 0.08mm width: 16mm / 25mm / 32mm
High Light:

packaging aluminium foil

,

aluminium foil safety

,

3003 Mod Aluminum Foil
Product Description

Specification of aluminum strip:

1)Core Alloy: 3003,3003MOD etc

2)Cladding alloy:4343,4045,7072

3)Cladding rate:4%-18%

4)Thickness:0.05-3.0mm

5)Width: 12 - 1250mm (max)

6)Temper: HO,H14,H14SR,H16 etc

7)ID.:150mm,200mm,300mm,400mm,500mm

8)Normal OD.:900-1450mmm

9)Other sizes is available according to customers request

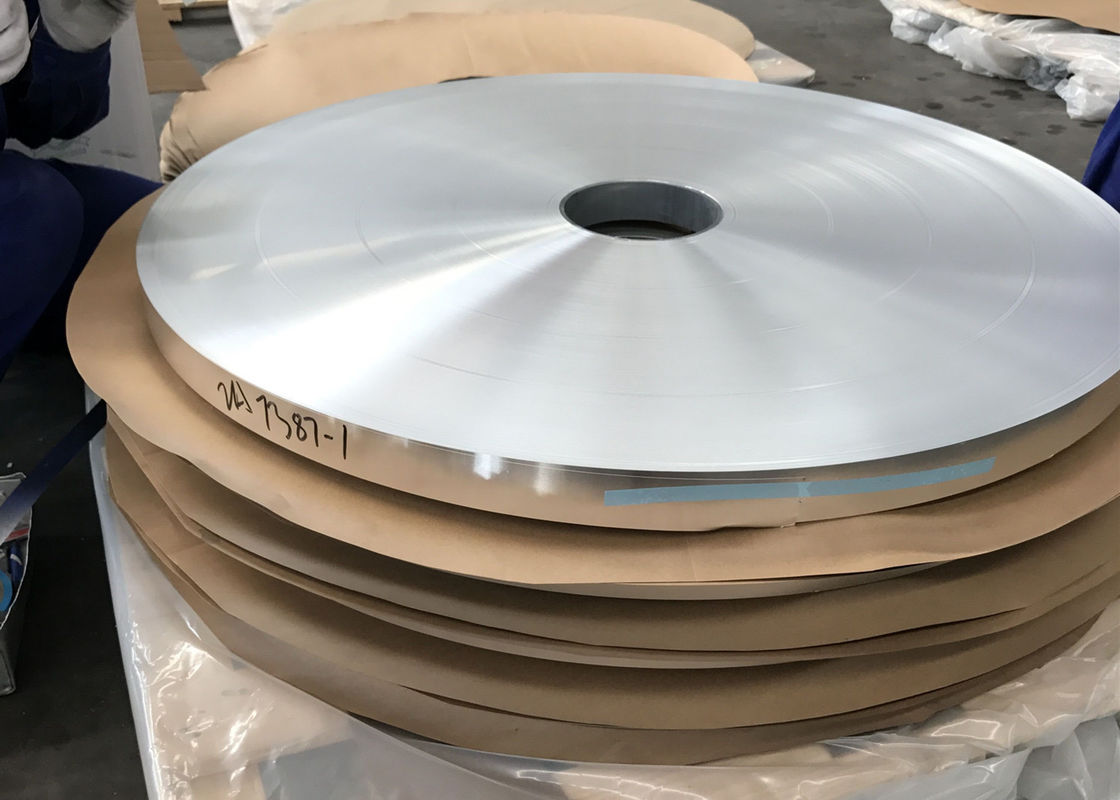

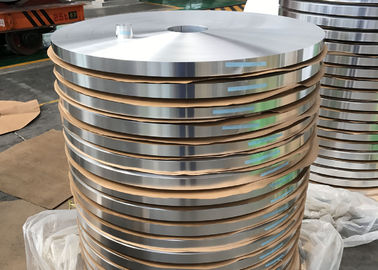

0.08mm Thickness 3003 Mod Aluminum Foil For Car Radiator Manufacturing 0
10)Main Production Process:Melting--surface polishing(remove the oxidation layer)--Welding the core layer and cladding layer---Cladding(according to the cladding percentage of the clad thickness)---Preheat---Hot rolling---Cold rolling--Straightening(clean and flattening)--Annealing---Finish rolling---Slitting---Packing



Below is a test certificate sample for our previous supply

1． Core Alloy:3003+1.5%Zn+Zr

Element Si Fe Cu Mn Mg Cr Zn Bi Zr Ti Al
Max 1.0 0.32 0.20 1.85 0.05 0.05 1.8 － 0.20 － Rem
Min 0.4 0.1 － 1.2 － － 1.3 － 0.05 － －
41810423 0.853 0.245 0.011 1.72 0.004 0.002 1.47 － 0.129 － －
41811543 0.832 0.238 0.005 1.72 0.002 0.001 1.45 － 0.132 － －

2．Clad 1 Alloy:4343

Element Si Fe Cu Mn Mg Cr Zn Bi Zr Ti Al
Max 8.2 0.3 0.15 0.10 0.05 0.05 0.20 － 0.05 － Rem
Min 6.8 － － － － － － － － － －
21810141-32 7.9 0.176 0.009 0.005 0.009 0.01 0.003 － 0.0004 － －
21810143-41 7.9 0.176 0.009 0.005 0.009 0.01 0.003 － 0.0004 － －

3．Clad 2 Alloy:4343

Element Si Fe Cu Mn Mg Cr Zn Bi Zr Ti Al
Max 8.2 0.3 0.15 0.10 0.05 0.05 0.20 － 0.05 － Rem
Min 6.8 － － － － － － － － － －
21810142-11 7.9 0.176 0.009 0.005 0.009 0.01 0.003 － 0.0004 － －
11811281-12 7.88 0.189 0.001 0.002 0.001 0.001 0.045 － 0.001 － －

3. MECHANICAL PROPERTIES ETC.

Properties Rp0.2(MPa) Rm(MPa) A50(%) Clad 1 ratio(%) Clad 2 ratio(%)
Max － 215 － 12 12
Min 160 175 0.5 8 8
41810423 182 191 1.6 9.3 9.4
41811543 183 192 1.8 9.2 9.1
