Product Details:
|
| Model: | T2-5052 | Thickness: | 1.5/2.0/2.5/3.0mm |
|---|---|---|---|
| Copper Ratio: | 2-3% | Density: | 2.8g/m3 |
| Application: | 5G Communication Base Plate | Feature: | Quality Stable,High-efficiency,Cost-effective |
| High Light: | 2.0mm 5G Communication Base Plate,IATF16949 Aluminum Copper Plate,2.8g/m3 Aluminum Copper Plate |
||

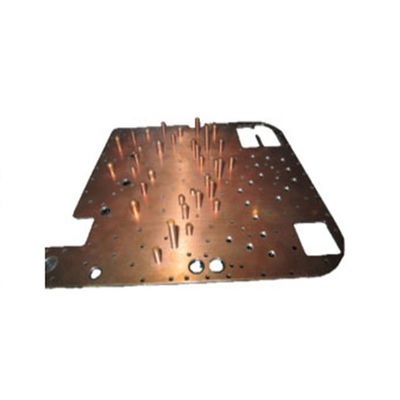

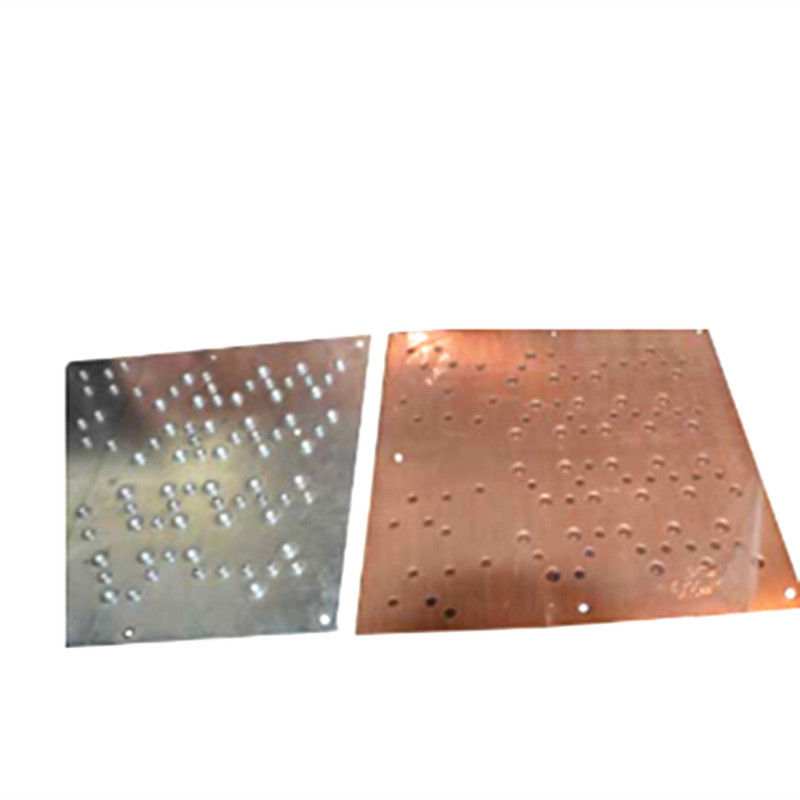

Product name:Aluminum Copper Metal Composite Material For 5G Communication Base Plate
Product description for Aluminum Copper Metal Composite Material
The 5G filter substrates currently used in the market are aluminum copper-plated or silver plated products. The electroplating production process seriously pollutes the environment, and the thickness of the copper plating layer cannot fully meet the requirements of RF devices. The copper layer is a rolled structure, and the thickness of the copper layer is several times the thickness of the electroplated copper / silver layer. The subsequent production and processing processes of the user fully meet the national environmental protection requirements. The product quality is stable, the production efficiency is high, and the final product is cost effective.
In 5G mobile communication filter communication equipment, select the device of specific frequency RF signal, the useful signal passes through without attenuation as much as possible, and the useless signal is attenuated as much as possible.
We produce aluminum copper cladding products between copper and a variety of aluminum alloy materials.The copper layer has plastic deformation tissue and the thickness of the copper layer can be adjusted according to customer demand.The subsequent production and processing process of users fully meet the national environmental protection requirements. The product quality is stable and the production efficiency is high.We supply cost effective products.
Our products are widely used in new energy vehicle batteries, 5G mobile communications, kitchen utensils (IH rice cookers, high-conductivity stainless steel woks, etc.), photovoltaics, LEDs, electronics, and construction.
The metal composite material we can develop are as follows:
Aluminum-based, steel-based, copper based and other series of metal composite materials for customers.
And our main multi layer metal composite materials are including copper-aluminum,steel-copper,aluminum-steel, aluminum-copper, aluminum-titanium, and other metal composite materials; product specifications include plate, strip, and foil series. Product specifications: (0.03-10) mm x (20 -1050) mm.
Specification for Aluminum Copper Metal Composite Material
| Model | Specification | ||||
| T2-5052 | Thickness(mm) | Copper ratio(%) | Density(g/m3) | ||
| 1.5/2.0/2.5/3.0 | 2-3% | 2.8 | |||
| Mechanical property | |||||
| Tensile strength(MPa) | Elongation(%) | Peel strength(N/mm) | |||
| 180 minimum | 10 minimum | 12 minimum | |||
First class testing equipment:
The laboratory is equipped with metallographic microscope, direct reading spectrometer, universal tensile sample machine, salt spray test box, transmission electron microscope, peel tester, hardness tester, atom probe and other equipment.
Production equipment:
650mm Rolling mill
Bell Type Annealing Furnace
1250mm Rolling Mill
Oxygen-free Hot-plating Continuous Casting and Rolling Production Line
