Product Details:
|
| Synonym: | Aerospace Aluminum Coil | Alloy: | 7020/7N01/7075/7050 |
|---|---|---|---|
| Temper: | O/T4/T6 | Application: | Aircraft/Aerospace/Railway Transportation/Automotive /Marine |
| Certificate: | Aviation/NADCAP Certified | Thickness: | 0.2-3.5mm |
| Width: | 1200-2650mm | Coil ID: | 505/605mm |
| Coil OD: | 2560mm | Packing: | Fumigated Pallet Specialized For Export |
| High Light: | ID 505mm Aluminum Coil,ID 605mm Aluminum Coil,Aerospace Industry Aluminium Coil |
||

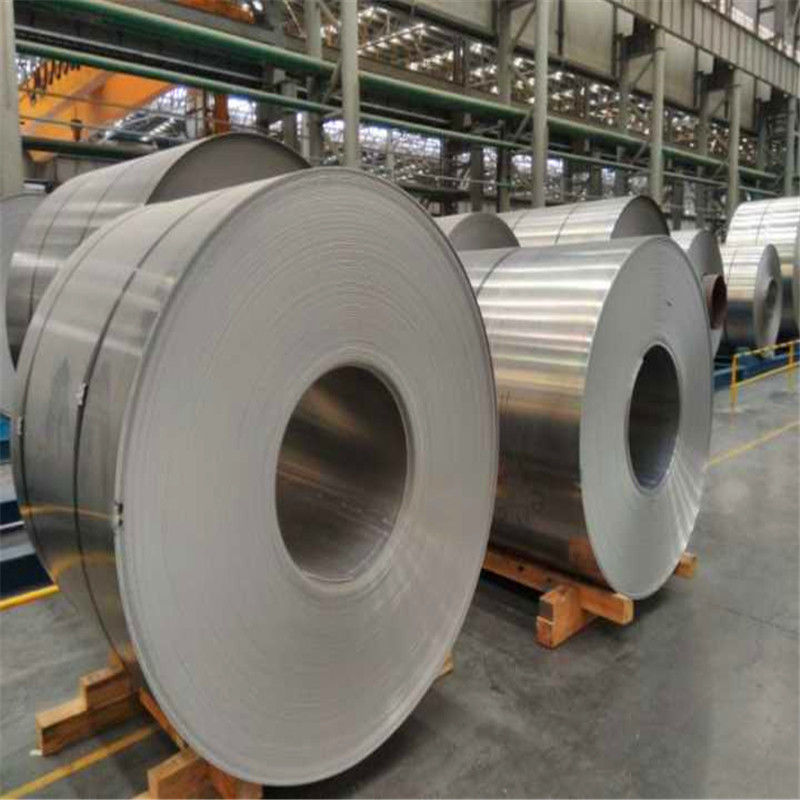

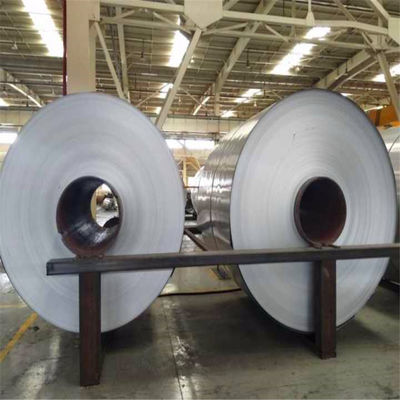

7xxx Cold rolled Aerospace Aluminum Coil
The 7xxx series aluminum coil we are supplying are including 7020/7N01/7075/7050,which are widely used as the main raw materials for aero& aviation,railway transportation, automotive ,marine and offshore engineering,energy sources,tool and mould etc.
Specification of Cold rolled aluminum coil:
| Alloy series | Typical alloy | Typical temper | Specification | |||
| Thickness | Width | ID | OD | |||
|
1xxx 3xxx 5xxx |
1050,1100,3003,3004,5052,5083,5182,5754 |
O,H12/22/32 H14/24/34 H16/26/36 H18/28/38 |
0.20-3.5mm | 1200-2650mm | 505/605mm | 2560mm |
|
2xxx 6xxx 7xxx |
2024,6016,6061,6082,7020,7N01,7075,7050 | O,T4,T6 | 0.30-3.5mm | 1200-2650mm | 505/605mm | 2560mm |
Other sizes are available according to customer's request.Besides aluminum coil,we are also supplying the aluminum alloy plate as per customers' requirement.
Application:
| 7xxx | 7050 | Radar structural parts ,manufacturing structure of aircraft, other high stress structural elements which demand high strength and strong corrosion resistance etc. |
| 7075 | Aviation, aerospace, moulding, mechnical equipment, tooling and fixture etc. | |
| 7N01 | Bed plate of high speed train and coal transportation vehicle etc. | |
| 7021 | Unit load device of aviation,components for aerospace and aviation |
Typical Chemical composition:
| ALLOY NO. | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Al |
| 7075 | 0.4 | 0.5 | 1.0-2.0 | 0.3 | 2.1-2.9 | 0.18-0.28 | 5.1-6.1 | 0.2 | Rem |
| 7050 | 0.12 | 0.15 | 2.0-2.6 | 0.1 | 1.9-2.6 | 0.04 | 5.7-6.7 | 0.06 | Rem |
Terms and conditions:
Trade term:CIF / CFR / FOB
Payment term:30% before production+70% before shipment;or 100% Irrevocable L/C at sight;Or we can further cummunicate with each other about this part.
Shipment:Normally it is about 30-35days
MOQ:5 metric tons for each thickness. (Normally it is formed according to the concrete specifications.)
Quantity tolerance:+/-10% of total quantity as confirmed PI.
