Automobile Battery Box Use Thickness 0.2mm 1050 3003 Aluminum Coil

MOQ: 5 Tons
Standard Packaging: Standard Export Packaging
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Trumony
Certification
CE/RoHS/GS/ISO9001
Model Number
TRM100
Material:
Aluminum
Alloy Or Not:
Alloy
Alloy States:
1050/3003
Width:
20-1550mm
Transportation Package:
Standard Export Packaging
Application:
Automobile Body Frame/Structural Parts/Doors/Battery Box/Docorated Bright Strips
Automobile Type:
Automobile Or Electric Vehicle
Thickness:
0.2-5.0mm
Highlight:

1050 Aluminum Coil

,

Thickness 0.2mm Aluminum Coil

,

1050 Aluminum Sheet Coil

Product Description

Automobile and New Energy Vehicle widely use our sheets/plates/coils.



Application as followings:

1. Auto body plate:

   body frame, body sheets,Body cover and inner panel, including four doors, two covers and wing panels, etc.

2. Structural parts

   automobile structural parts, automobile heat shield, SUV pedal, vacuum booster shell, automobile sealing strip and so on.

   thermal shroud,pedal plate,vacuum booster,sealing strip,A/B pillar,carriage plate,brazing cladded materilas etc.

3. Docorated bright strips

   inner and outer trim for automobile or electric vehicle

4. Aluminum products for new energy vehicle

   such as Battery body, battery cover plate, battery case etc.

Automobile Battery Box Use Thickness 0.2mm 1050 3003 Aluminum Coil 0



Aluminum products' Application for new energy vehicle

1. Power battery cover plate

2. Battery case.



Advantages

1. good deep drawing performance

2. stable size after blanking

3. good surface quality

4. good laser weldability

5. ensure the safety of battery service



Product Specification



Products Alloy states Temper Thickness Width Extension MPA Yield Strength MPA Elongation %
Battery Case 3003 O 0.2-2.5 25-1500 100-110 40-60 ≥25
3003 H12 0.2-3 20-1550 130-140 100-130 ≥4
3003 H14 0.2-2.5 25-1500 140-160 130-150 ≥4
1050 O 0.2-3 20-1550 50-70 30-40 ≥35
Battery Cover 3003 H14 0.2-5 25-1500 140-190 ≥120 /
3003 H18 0.3-5 20-1550 ≥180 ≥150 /

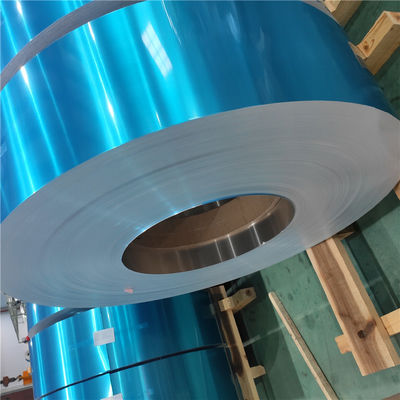

Automobile Battery Box Use Thickness 0.2mm 1050 3003 Aluminum Coil 1

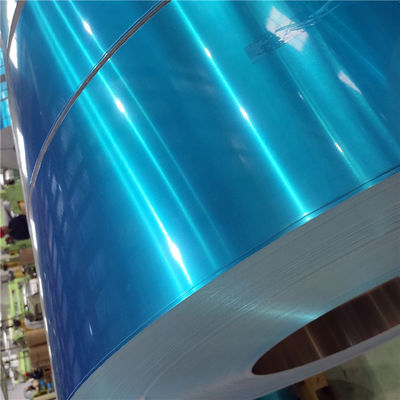

Automobile Battery Box Use Thickness 0.2mm 1050 3003 Aluminum Coil 2

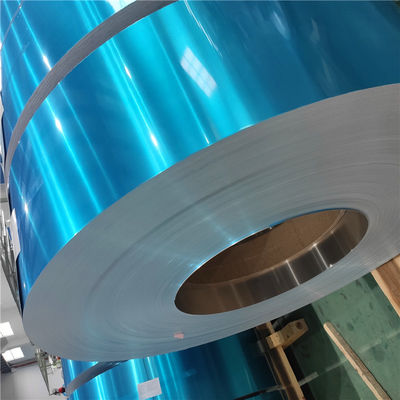

Automobile Battery Box Use Thickness 0.2mm 1050 3003 Aluminum Coil 3

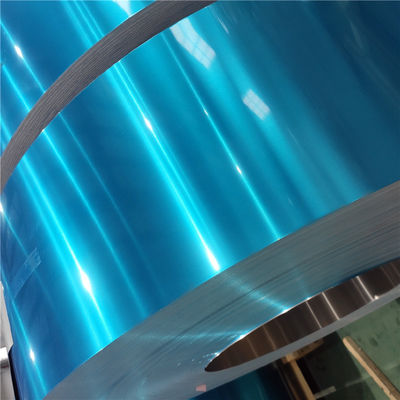

Automobile Battery Box Use Thickness 0.2mm 1050 3003 Aluminum Coil 4

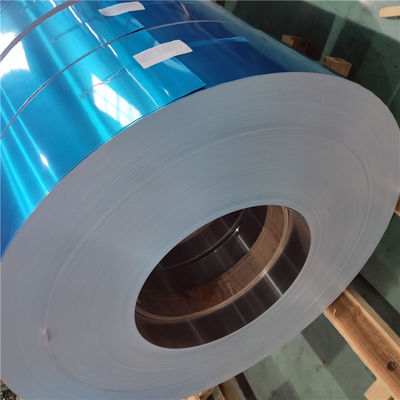

Automobile Battery Box Use Thickness 0.2mm 1050 3003 Aluminum Coil 5

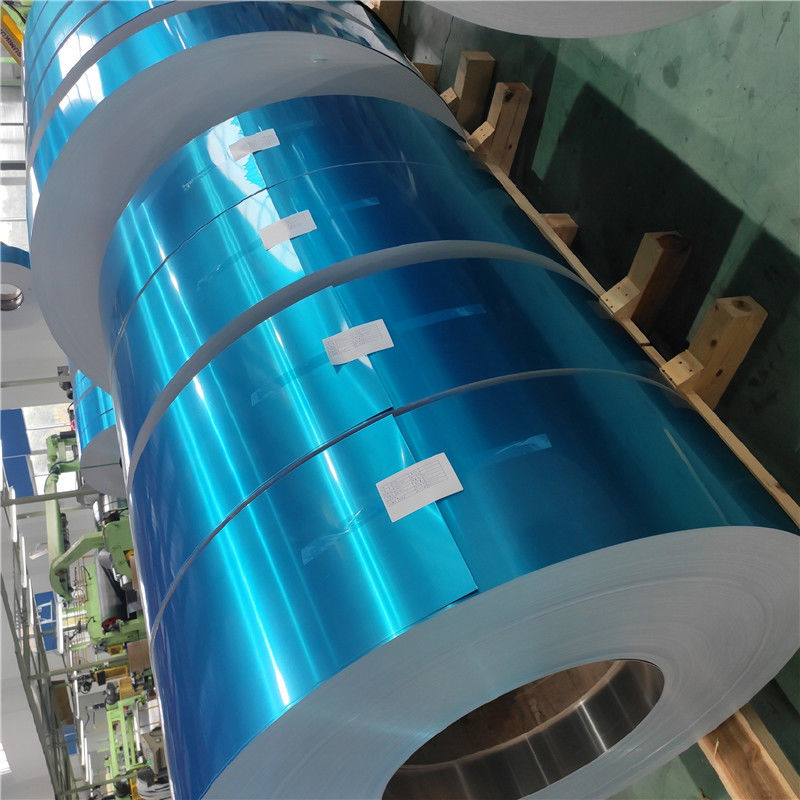

Automobile Battery Box Use Thickness 0.2mm 1050 3003 Aluminum Coil 6
