Lightweight 5000 6000 Series Aluminum Coil Width 2200mm

MOQ: Negotiable
Price: Negotiable

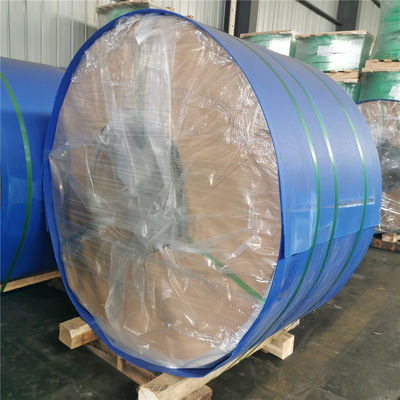

Standard Packaging: Fumigated wooden pallet specialized for export
Delivery Period: 30 working days
Supply Capacity: 100000 ton/year
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Trumony
Certification
ISO 9001/ IATF 16949 / ISO 14001
Model Number
TRC-001
Material:
Aluminum
New Or Not:
New
Alloy Or Not:
Alloy
Alloy States:
5000 / 6000 Series Etc
Temper:
T4P / O / H111 Etc
Specification:
According To Customers' Requests
Transportation:
Standard Export Packaging
Application:
Automobile Body Frame/Structural Parts/ Doors
Highlight:

Lightweight 6000 Series Aluminum Coil

,

Aluminum Coil Width 2200mm

,

Width 2200mm Aluminum Sheet Coil

Product Description

Auto Lightweight Aluminum Coil for Car Door Plate




Our Aluminum Sheets/Plates/Coils are widely used for Automobile and New Energy Vehicles. Such as auto body frame, body sheets,doors, structural parts,docorated bright strips,electric vehicle battery cover, electric car battery case,thermal shroud,pedal plate,vacuum booster,sealing strip,A/B pillar,carriage plate,brazing cladded materials etc.



Lightweight 5000 6000 Series Aluminum Coil Width 2200mm 0


Application:



Body cover and inner panel, including four doors, two covers and wing panels, etc.





Advantages:



Typical mechanical properties:90°



The outer plate of the car body

1. good punching molding
2. good flanging performance.
3. good Roping line
4. with EDT surface, uniform roughness. Main alloy states are 6014 and 6016.



The interior plate of the car body
1. good impact molding performance,
2. YPE < 0.6%, mainly 5182 and 5754 alloy states, inner plate 6016, 6014 etc.



Good Flanging Performance

Lightweight 5000 6000 Series Aluminum Coil Width 2200mm 1





Good Surface

Lightweight 5000 6000 Series Aluminum Coil Width 2200mm 2





Mechanical property



T4
Alloy states Rm Rp0.2 A50mm% Ag% R10% N4%-6%
6014-IH 200 90 25 22 0.70 0.30
6016-IH 210 92 26 25 0.6 0.30



Product Specification



Alloy States/Temper Character Thickness Width Surface
5754/O ST 0.5-4.0mm 1000-2200mm As requested
5182/O RSS
5052/H32 RSS
6016/T4 IH
6014/T4 IH
6016/T4 IBR
6051/T4 HS
6111/T4 HS





Terms and conditions:

Trade term:CIF / CFR / FOB
Payment term:30% before production+70% before shipment;or 100% Irrevocable L/C at sight;Or we can further cummunicate with each other about this part.
MOQ: Negotiable
Quantity tolerance:+/-10% of total quantity as confirmed PI.



Lightweight 5000 6000 Series Aluminum Coil Width 2200mm 3



Lightweight 5000 6000 Series Aluminum Coil Width 2200mm 4

Lightweight 5000 6000 Series Aluminum Coil Width 2200mm 5
