Brazing Cladding Aluminum Strip Coil For Charge Air Cooler

Basic Properties
Place of Origin: China
Brand Name: Trumony
Certification: ISO9000, ISO14000, IATF16949
Model Number: TR-CY-T098
Trading Properties
Minimum Order Quantity: 3 metric tons
Price: Negotiation
Payment Terms: L/C, T/T
Supply Ability: 100,000 mt per year
Tags

aluminum foil roll

aluminium foil packaging

heavy duty aluminum foil
Specifications
Item: Aluminum Strip In Coil Thickness: 0.3mm
Alloy: 1050 Temper: H24
Surface treatment: Mill Finish Width: 35mm
Length: Customized ID: Customized
OD: Customized Package: Eye To Sky
High Light:

Cladding Aluminum Strip Coil

,

Brazing Aluminum Strip Coil

,

Charge Air Cooler Aluminium Strips
Product Description

Brazing Cladding Aluminum Strip In Coil For Charge Air Cooler

1050 H24 Aluminum Strip In Coil For Auto Condenser



Description



Aluminum strip is an aluminum alloy with an aluminum content of 99.5% or more. aluminum strip is made by slitting aluminum coils. Aluminum strip refers to strip shape product which manufactured with aluminum as the main raw material, and mix other alloy elements.

Specification
Item  Aluminum strip in coil
Size Customized as your request
Alloy 4343/3003/4343,4345/3003/4345,3003
Temper H12,H24,O
Application Various kinds of specification for fin



Core Material



Alloy Si Fe Cu Mn Mg Zn Zr Ti code
3003 0.6 0.7 0.05-0.20 1.0-1.5 － 0.1 0.05 0.03 1
3003+1%Zn 0.6 0.7 0.05-0.20 1.0-1.5 － 0.5-1.50 0.05 0.05 2
3003+1.5%Zn 0.6 0.7 0.05-0.20 1.0-1.5 － 1.0-2.0 0.05 0.05 3
3003+1.5%Zn+Zr 0.5-1.0 0.7 0.05-0.20 1.0-1.6 － 1.0-2.0 0.05-0.2 - 4
3003+0.5%Cu 0.6 0.7 0.30-0.70 1.0-1.5 － 0.10 0.05 0.1 5
3005 0.6 0.7 0.20-0.40 1.0-1.5 0.20-0.60 0.25 － 0.01 6



Cladding Material



Alloy Si Fe Cu Mn Mg Zn Zr Ti code
4343 6.8-8.2 0.8 0.25 0.1 － 0.2 － 0.05 1
4343+1%Zn 6.8-8.2 0.8 0.25 0.1 － 0.5-1.5 － 0.05 2
4045 9.0-11.0 0.8 0.3 0.05 － 0.2 － 0.2 3
4045+1%Zn 9.0-11.0 0.8 0.3 0.05 － 0.5-1.5 － 0.2 4
4004 9.0-10.5 0.8 0.25 0.1 1.0-2.0 0.2 － 0.2 5
7072 0.7 0.1 0.1 0.1 0.8-1.3 － － 6
5005 0.3 0.7 0.2 0.2 0.5-1.1 0.5-1.0 － 0.03 7

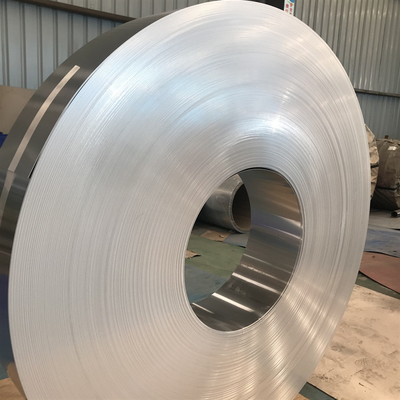

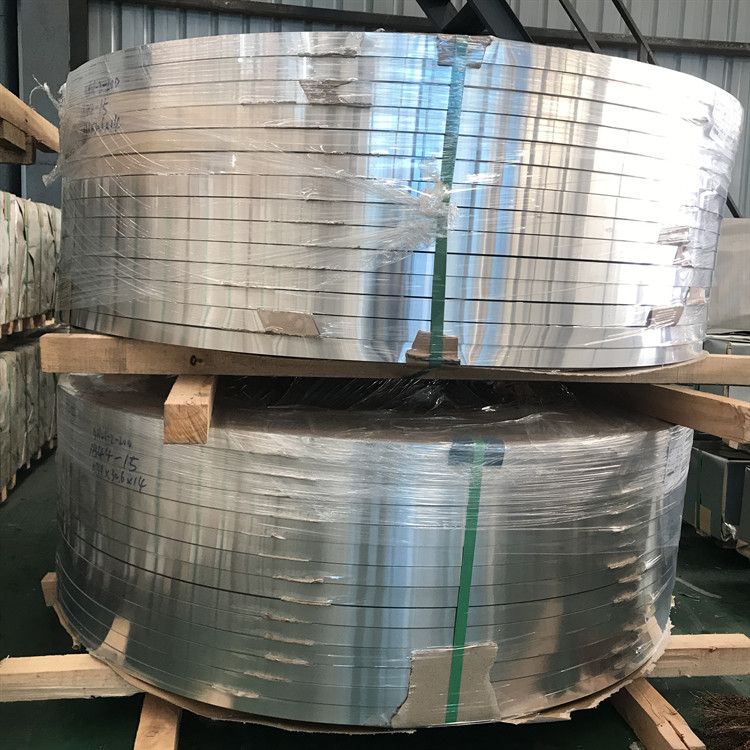

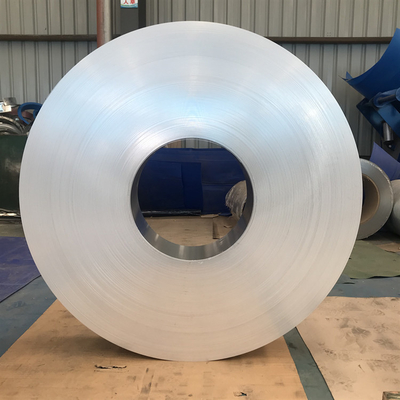

Brazing Cladding Aluminum Strip Coil For Charge Air Cooler 0Brazing Cladding Aluminum Strip Coil For Charge Air Cooler 1

Brazing Cladding Aluminum Strip Coil For Charge Air Cooler 2Brazing Cladding Aluminum Strip Coil For Charge Air Cooler 3
