Hydrophilic Aluminium Fin For Household Air Conditioner

Basic Properties
Place of Origin: China
Brand Name: Trumony
Certification: ISO9000, ISO14000, IATF16949
Model Number: TR-CY-T101
Trading Properties
Minimum Order Quantity: 3 metric tons
Price: Negotiation
Payment Terms: L/C, T/T
Supply Ability: 100,000 mt per year
Tags

aluminum foil roll

aluminium foil packaging

heavy duty aluminum foil
Specifications
Item: Hydrophilic Aluminium Fin Stock For Household Air Conditioner Thickness: 0.1-0.15mm
Alloy: 8011,1100.1060 Temper: H22. H18
Surface treatment: Coating With Blue , Gold Width: 100-500mm
Type: Bare Fin Stock,hydrophilic Coating,epoxy Aluminum Fin Stock Application: Air Conditioner Condenser Coil Air Cooled Heat Exchangers Cooling Towers
High Light:

Blue Coating Hydrophilic Aluminium Fin

,

8011 Alloy Hydrophilic Aluminium Fin

,

Air Conditioner Hydrophilic Aluminium Fin
Product Description

Hydrophilic Aluminium Fin Stock For Household Air Conditioner



Description

Our company Trumony can produce bare foil, and hydrophilic foil with colors such as blue, gold, white,etc. The Pre-coated Aluminum Fin Stock for Heat Exchangers quliaty can reach the top level in both domestic and abroad industry. Blue Color Coating Aluminium Foil for Air Conditioning MAINLY APPLIED FOR HOUSEHOLD AIR CONDITIONER, REFRIGERATOR, AUTO ac, AUTO WATERTANK.ETC.


Specification

Alloy Temper Thickness Width ID OD
8011,18011 1100 1060,8006 etc.

H14

H26

H24

H22,O

 0.08-0.2mm 560-1440mm

75mm

150mm

300mm

400mm

 400-1400mm





Mechanical performance (For reference only)

Temper Tensile strength(Mpa) Elongation(%) Erichsen(mm)
O 80-110 20 6.0
H22 100-135 16 5.5
H24 115-145 12 5.0
H26 125-160 8 4.0
H18 160 1 -

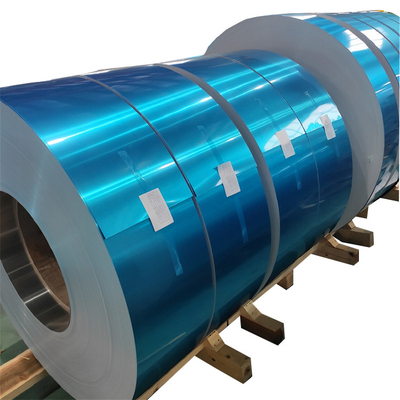

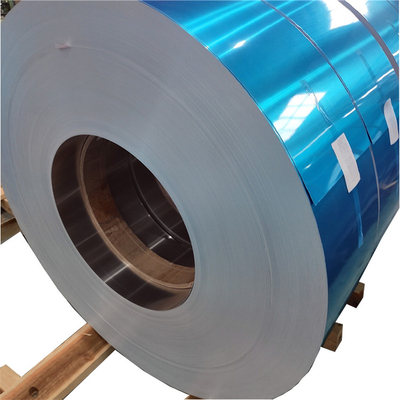

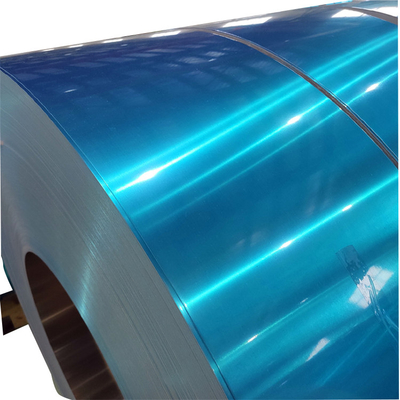

Hydrophilic Aluminium Fin For Household Air Conditioner 0Hydrophilic Aluminium Fin For Household Air Conditioner 1
